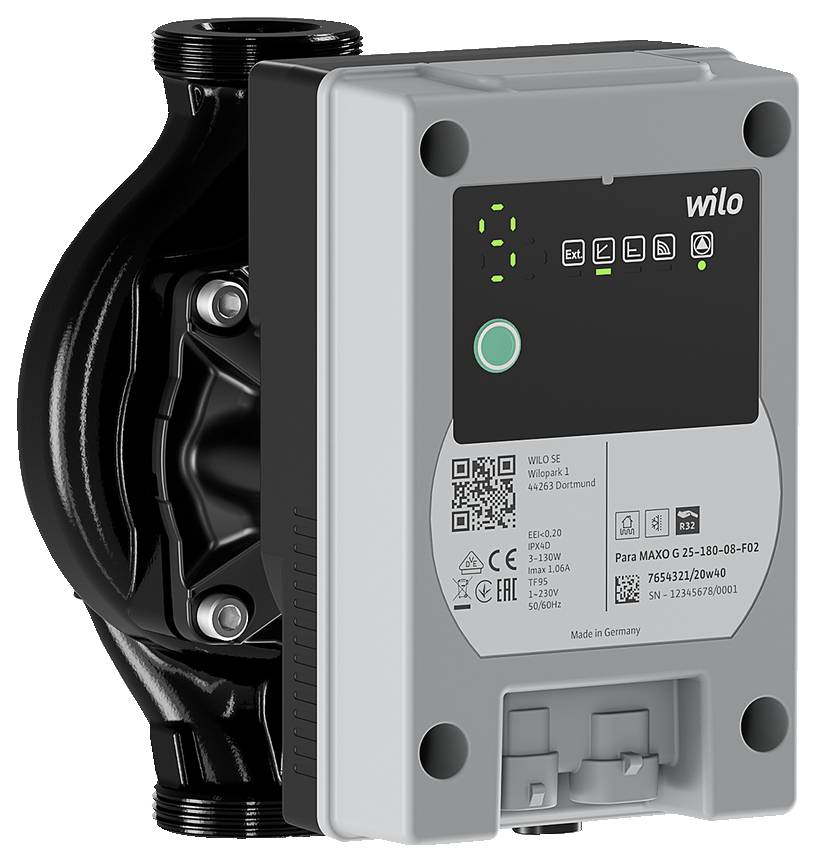

Image similar
Image similar
Stiebel Eltron UP 30/1-8 PCV Circulation pump 10 bar
EAN:
Part number:
Item no:
Technical specifications
- Protection type (IP): IPX4D
- Number of phases: 1
- Nominal current 0.9 A
- Rated voltage: 230 V
- Frequency: 50 Hz
- Potential-free switch contact: No.
- Cable length: 1.5 m
- Ambient temperature: 70 °C
- Wireless standard 5G: No
- Supports protocol for PROFIBUS: No.
- Supports protocol for KNX: No.
- Supports protocol for PROFINET IO: No.
- Supports protocol for Ethernet/IP: No.
- Wireless standard Bluetooth: No.
- Wireless standard WLAN 802.11: No.
- Mounting length 180 mm
- Electrical connection: Cable
- Flange shape: Other
- Medium temperature (continuous operation): -20..110°C
- Max. Operating pressure 10 bar
- Pump housing material: Cast iron
- Material quality of pump housing: Other
- Material of blower wheel/impeller: Other
- Material quality Blower wheel/impeller: Other
- Pump circuit: Other
- Interface signal 0-20 mA / 4-20 mA: No.
- Interface PT100 / PT1000 / PTC: No.
- Pulse counter interface: No.
- Supports protocol for CAN/CANopen: No.
- Supports protocol for Modbus TCP: No.
- Supports protocol for Modbus RTU: No.
- Supports protocol for BACnet MS/TP: No.
- Supports protocol for BACnet IP: No.
- Supports protocol for LON/LonWorks: No.
- Supports protocol for LIN Bus: No.
- Inlet side connection: Other
- Pressure stage flange connection inlet: Other
- Connection standard Inlet side: Other
- Outlet side connection: Other
- Pressure stage flange connection outlet side: Other
- Connection standard outlet side: Other
- Type of speed control: Infinitely variable
- Max. lifting height 8 m
- Double pump: No.
- Engine power absorbed (P1): 0.1 kW
- Energy efficiency class (EEI): 0.2
- Wireless standard 2G: No
- Interface signal 0-10 V / 2-10 V: No.
- 3G wireless standard: No.
- 4G wireless standard: No.
- Pulse Width Modulation (PWM) interface: No.
- With RS-485 communication interface: No.
- With RS-232 communication interface: No.
- Diameter, inlet side connection: 2 in. (50)
- Nominal diameter, outlet side connector: Other
- DVGW seal for water: No.
- Product type
Circulation pump
- Operating voltage
230 V
- Max. operating pressure
10 bar
- Max. delivery head
8 m
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3551824 Stiebel Eltron UP 30/1-8 PCV Circulation pump 10 bar
Description
Description
The heating circulation pump is particularly energy-efficient since both an electronic power control for conveying the heat carrier as well as an infinitely variable differential control are integrated.
This text is machine translated.
The heating circulation pump is particularly energy-efficient since both an electronic power control for conveying the heat carrier as well as an infinitely variable differential control are integrated.
