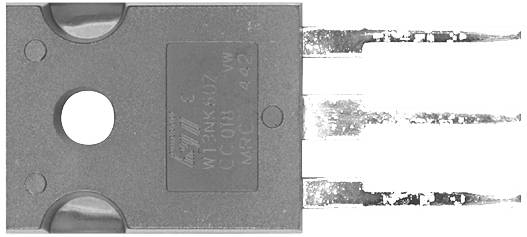

An electronic component, presumably a power transistor, with three metal terminals on the right-hand side and a metal casing.

Image similar

An electronic component, presumably a power transistor, with three metal terminals on the right-hand side and a metal casing.

Image similar

Packaging type

Tube

Product type

IGBT

Enclosure

TO 247

Collector current

60 A

Mounting type

Through-hole

Datasheet (PDF)

English

STMicroelectronics

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Packaging type: Tube

Type: 30A 600V 200W Transistor: IGBT TO247-3

Product type: IGBT

Enclosure: TO 247

Manufacturer: STMicroelectronics

Collector emitter reverse voltage U(CES): 600 V

Collector current: 60 A

On delay (t(d)(on): 29.5 ns

Off delay t(d)(off)(2): 118 ns

Mounting type: Through-hole

UKCA: yes

Documents & Downloads

Datasheet

English

Datasheet 3028031 STMicroelectronics 30A 600V 200W Transistor: IGBT TO247-3 IGBT TO 247 600 V Tube

User & Safety Instructions

User & Safety Instructions 3028031 STMicroelectronics 30A 600V 200W Transistor: IGBT TO247-3 IGBT TO 247 600 V Tube
