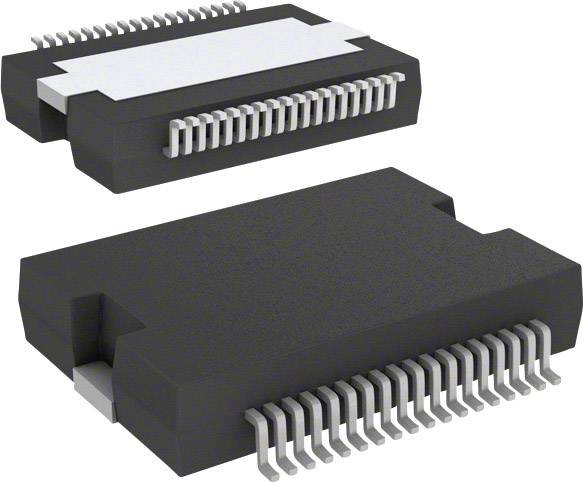

Image similar
Image similar
STMicroelectronics L6474PDTR PMIC - motor controllers Half-bridge (4) SPI PowerSO 36
EAN:
Part number:
Item no:
Product type
PMIC - motor controllers
Enclosure
PowerSO 36
Mounting type
Surface-mount
Type
L6474PDTR
Manufacturer
STMicroelectronics
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 6.71
30
6% = € 0.41
€ 6.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 6.71 / piece)
€ 67.10
plus VAT.
14-day return policy included
Technical specifications
- Type
L6474PDTR
- Product type
PMIC - motor controllers
- Enclosure
PowerSO 36
- Manufacturer
STMicroelectronics
- Manuf. code
STM
- Functions
Fully integrated driver
Control/power stage
- Output configuration
Half-bridge (4)
- Connectivity
SPI
- Range of uses
Multi-purpose use
- Technology (PMIC)
DMOS
- Power output
3 A
- Series
easySPIN
- Step resolution
1
Jan-16
Jan-16
Jan-16
Jan-16
- Motor type - stepper motor
Bipolar
- Voltage load (min.)
8 V
- Voltage load (max.)
45 V
- Supply voltage (min.)
8 V
- Supply voltage (max.)
45 V
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+150 °C
- Mounting type
Surface-mount
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1184837 STMicroelectronics L6474PDTR PMIC - motor controllers Half-bridge (4) SPI PowerSO 36
Description
Integrated circuits from leading manufacturers. Please read our extensive documentation which is free to download.
