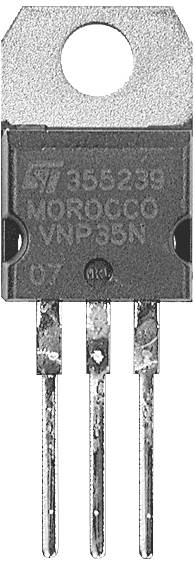

'Transistor VNP35N with three pins, suitable for electronic circuits.'

Image similar

'Transistor VNP35N with three pins, suitable for electronic circuits.'

Image similar

Packaging type

Tube

Product type

IGBT

Enclosure

TO 220

Collector current

25 A

Mounting type

Through-hole

Datasheet (PDF)

English

STMicroelectronics

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Packaging type: Tube

Type: STGP7NC60HD

Product type: IGBT

Enclosure: TO 220

Manufacturer: STMicroelectronics

Collector emitter reverse voltage U(CES): 600 V

Collector current: 25 A

On delay (t(d)(on): 18.5 ns

Off delay t(d)(off)(2): 72 ns

Mounting type: Through-hole

UKCA: yes

Documents & Downloads

Datasheet

English

Datasheet 3028028 STMicroelectronics STGP7NC60HD IGBT TO 220 600 V Tube

User & Safety Instructions

User & Safety Instructions 3028028 STMicroelectronics STGP7NC60HD IGBT TO 220 600 V Tube
