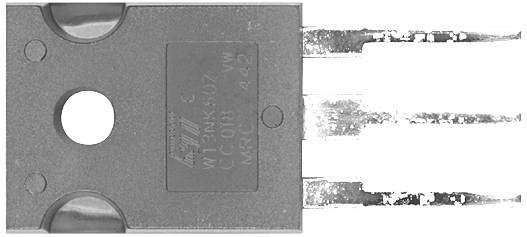

A three-pole electronic component, possibly a transistor. Metallic contacts on the right, housing with labelling on the left.

Image similar

A three-pole electronic component, possibly a transistor. Metallic contacts on the right, housing with labelling on the left.

Image similar

Packaging type

Tube

Product type

IGBT

Enclosure

TO 247

Collector current

60 A

Mounting type

Through-hole

Datasheet (PDF)

English

STMicroelectronics

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Packaging type: Tube

Type: STGW20NC60VD

Product type: IGBT

Enclosure: TO 247

Manufacturer: STMicroelectronics

Collector emitter reverse voltage U(CES): 600 V

Collector current: 60 A

On delay (t(d)(on): 31 ns

Off delay t(d)(off)(2): 100 ns

Mounting type: Through-hole

UKCA: yes

Documents & Downloads

Datasheet

English

Datasheet 3028030 STMicroelectronics STGW20NC60VD IGBT TO 247 600 V Tube

User & Safety Instructions

User & Safety Instructions 3028030 STMicroelectronics STGW20NC60VD IGBT TO 247 600 V Tube
