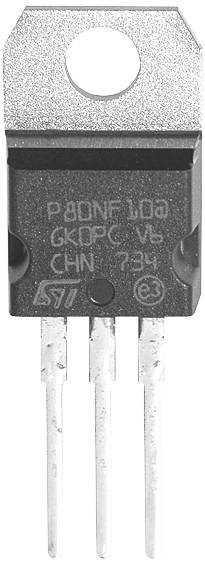

A transistor with an integrated heatsink, three metal legs, and embossed text on the black surface. Primarily used in electronics.

Image similar

A transistor with an integrated heatsink, three metal legs, and embossed text on the black surface. Primarily used in electronics.

Image similar

Product type

MOSFET

Enclosure

TO 220

Type

N-channel

Power (max) P(TOT)

312 W

R(DS)(on)

0.0105 Ω

Datasheet (PDF)

English

STMicroelectronics

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Type: STP120NF10

Product type: MOSFET

Enclosure: TO 220

Manufacturer: STMicroelectronics

Type: N-channel

I(d): 110 A

UBR DSS: 100 V

Power (max) P(TOT): 312 W

R(DS)(on): 0.0105 Ω

Mounting type: Through-hole

Channels: 1

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

English

Datasheet 3026592 STMicroelectronics STP120NF10 MOSFET 1 N-channel 312 W TO 220

User & Safety Instructions

User & Safety Instructions 3026592 STMicroelectronics STP120NF10 MOSFET 1 N-channel 312 W TO 220
