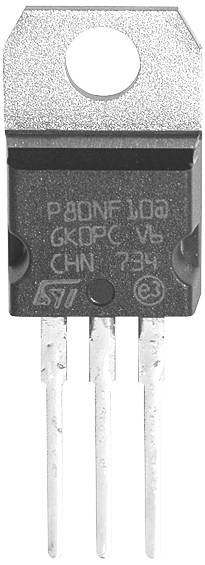

A three-legged transistor by STMicroelectronics, model P80NF10, in a TO-220 package format.

Image similar

A three-legged transistor by STMicroelectronics, model P80NF10, in a TO-220 package format.

Image similar

Product type

MOSFET

Enclosure

TO 220

Type

N-channel

Power (max) P(TOT)

125 W

R(DS)(on)

1.8 Ω

Datasheet (PDF)

English

STMicroelectronics

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Type: STP7NK80Z

Product type: MOSFET

Enclosure: TO 220

Manufacturer: STMicroelectronics

Type: N-channel

I(d): 5.2 A

UBR DSS: 800 V

Power (max) P(TOT): 125 W

R(DS)(on): 1.8 Ω

Mounting type: Through-hole

Channels: 1

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

English

Datasheet 3026619 STMicroelectronics STP7NK80Z MOSFET 1 N-channel 125 W TO 220

User & Safety Instructions

User & Safety Instructions 3026619 STMicroelectronics STP7NK80Z MOSFET 1 N-channel 125 W TO 220
