Hirschmann Test & Measurement LAS N WS Au Straight blade plug Plug, straight Pin diameter: 4 mm White 1 pc(s)
EAN:
Part number:
Item no:
Product type
Straight blade plug
Connector type
Plug, straight
Pin Ø
4 mm
Cross section (flexible) (min.)
0.5 mm²
Connection
Screws
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€ 6.71
-25 %
€ 5.03
plus VAT.
Highlights & Details
Hirschmann Test & Measurement LAS N WS Au Straight blade plug Plug, straight Pin diameter: 4 mm White 1 pc(s)
- 4 mm
Our service for you
Technical specifications
- Product type
Straight blade plug
- Connector type
Plug, straight
- Pin Ø
4 mm
- Nominal current
24 A
- Cross section (flexible) (min.)
0.5 mm²
- Nominal current - rounded value
24 A
- Cross section (flexible) (max.)
1.5 mm²
- Connection
Screws
- Factory colour
White
- Insulation type
Partially insulated
- Manufacturer part #
934100707
- Type
LAS N WS Au
- Scoop-proof
No
- Content
1 pc(s)
- Insulation material
PA
- Contact material
Brass gold plated
- Nominal voltage
60 V DC
- RoHS-compliant
Yes
- Temperature range
-15 to +70 °C
- Material (details)
Contact: gold-plated brass
- Resistance
2 mΩ
- Nominal voltage (details)
60 V DC
- Nominal current (details)
24 A
- Cross section
1.5 mm²
- Certification marks
IEC 61010
- Connection
Screws
Documents & Downloads
Datasheet
Datasheet 733013 Hirschmann Test & Measurement LAS N WS Au Straight blade plug Plug, straight Pin diameter: 4 mm White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 733013 Hirschmann Test & Measurement LAS N WS Au Straight blade plug Plug, straight Pin diameter: 4 mm White 1 pc(s)
Description

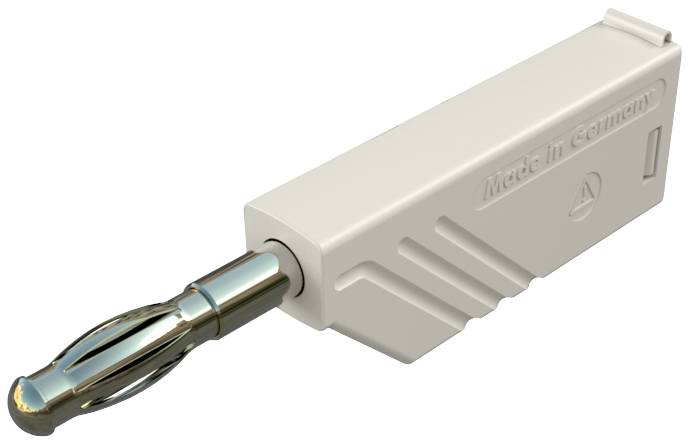

Tower plug with screw connection for wires from 0.5 mm2 to 1.5 mm2, external wire diameter of max. 4.2 mm. Plug pin 4 mm with Multi strip springs, not touch protected
