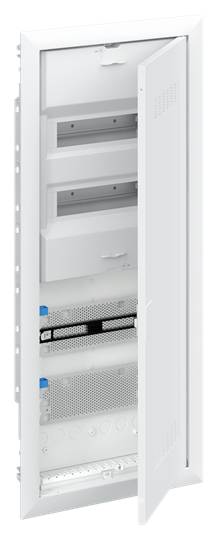

Striebel & John 2CPX031400R9999 UK662CW Field distributor Flush mount No. of rows = 5 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Field distributor
No. of rows
5
Mounting type
Flush mount
Width
384 mm
Height
872 mm
Datasheet (PDF)
Technical specifications
- Product type
Field distributor
- No. of rows
5
- Mounting type
Flush mount
- Factory colour
White
- Width
384 mm
- Height
872 mm
- Dim
(W x H x D) 384 x 872 x 97 mm
- Depth
97 mm
- Content
1 pc(s)
Flush mounted (plaster)
White
384 mm
872 mm
97 mm
9016
TRUE
81 mm
5
355 mm
Door
280 mm
95 mm
TRUE
Plastic
12
Push button
IP30
FALSE
TRUE
Closed
TRUE
TRUE
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3112420 Striebel & John 2CPX031400R9999 UK662CW Field distributor Flush mount No. of rows = 5 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3112420 Striebel & John 2CPX031400R9999 UK662CW Field distributor Flush mount No. of rows = 5 Content 1 pc(s)
Description
The combined distributors of the UK600 series are designed for flush mounting. They impress with many new and unique technical features. In this way, an up to 200% larger connection area enables the easy and efficient installation of the devices. By the generous space, all conceivable devices, such as routers or other media modules, find their secure place. With this new combination distributor we combine the function of a circuit distributor with that of a media distributor. A flexible partition allows the media area and the distribution area to be separated from each other. In both areas, you can rely on the innovative mounting details of the UK600. With an optionally available photo frame the UK600 becomes eye-catcher and integrates itself in every environment. The distribution panel can be used in flush and hollow wall mounting and has a VDE identification plate. Applicable standards: DIN 43871, DIN EN 60670-24, VDE 0606-24
