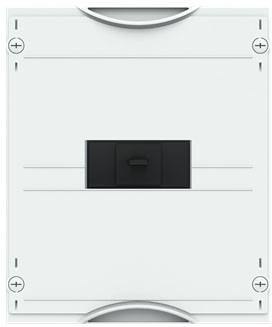

Striebel & John 2CPX041473R9999 MA200ALXB Switch 3-pin 200 A
EAN:
Part number:
Item no:
Product type
Switch
Number of pins
3
Nominal current - rounded value
200 A
Nominal current
200 A
Dim
(W x H x D) 250 x 300 x 200 mm
Datasheet (PDF)
Technical specifications
- Product type
Switch
- Number of pins
3
- Nominal current - rounded value
200 A
- Nominal current
200 A
- Dim
(W x H x D) 250 x 300 x 200 mm
- Content
1 pc(s)
- Width
250 mm
- Height
300 mm
- Depth
200 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2326793 Striebel & John 2CPX041473R9999 MA200ALXB Switch 3-pin 200 A
User & Safety Instructions
User & Safety Instructions 2326793 Striebel & John 2CPX041473R9999 MA200ALXB Switch 3-pin 200 A
Description
Interior configuration of module, CombiLine, installed in the cabinet, equipped for Tmax circuit breaker, 2 RE = 300 mm detent unit, field width 1 = 250 mm, 24 space units, equipped with 1 XT3 circuit breaker, equipment manufacturer: ABB, Tmax XT, for 3-pole busbar system, rated current in max. 200 A, plastic covers, 90 degree pressure-twist lock, RAL 7035, cover design: With cut-out, can be used from a cabinet depth of 200 mm, EDF or WR mounting frame must be ordered separately
