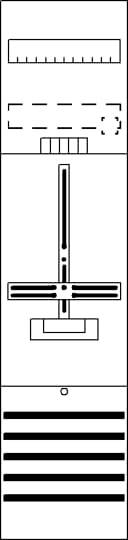

Striebel & John 2CPX054080R9999 DF17B1 Counter mount module Recess-mount No. of partitions = 12 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Counter mount module
No. of partitions
12
Mounting type
Recess-mount
Width
250 mm
Height
1050 mm
Datasheet (PDF)
Technical specifications
- Product type
Counter mount module
- No. of partitions
12
- Mounting type
Recess-mount
- Factory colour
Grey
- Width
250 mm
- Height
1050 mm
- Dim
(W x H) 250 mm x 1050 mm
- Content
1 pc(s)
- Weight
0
Grey
250 mm
1-story
1050 mm
7035
FALSE
300 mm
TRUE
12
0
0
1
With bus bar 5-pole
IP2XC
63 A
Closed with prestamping
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3104060 Striebel & John 2CPX054080R9999 DF17B1 Counter mount module Recess-mount No. of partitions = 12 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3104060 Striebel & John 2CPX054080R9999 DF17B1 Counter mount module Recess-mount No. of partitions = 12 Content 1 pc(s)
Description
The complete counter fields of the DF series with three point mounting are intended for installation in the Comfortline cabinet. The fields are pre-wired, which ensures quick and easy installation in the cabinet. Due to the integrated main cable branch terminals, a maximum space is available in the AAR, which can be used for up to three circuits as required. Furthermore, the cable routing has been optimized for the intelligent measuring system, for example, by means of new cable routing channels, so that the laying is now in no time at all. The optional busbar connector allows the cross-wiring of several fields to be realized at will. APPLICABLE STANDARDS: DIN VDE 0603-1, DIN 43870-1, DIN 43870-2, DIN 43870-3, VDE-AR-N 4100
