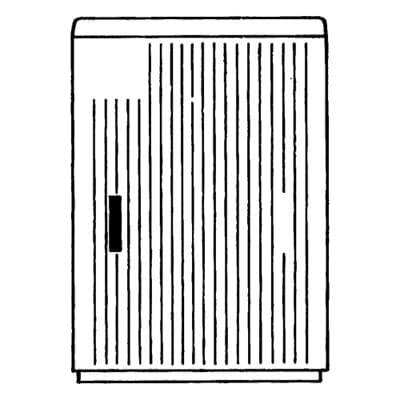

Striebel & John 4TBE843181C0100 EHP321 Switchboard cabinet Floor fixed Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Mounting type
Floor fixed
Width
785 mm
Height
320 mm
Depth
1125 mm
Datasheet (PDF)
Technical specifications
- Product type
Switchboard cabinet
- Mounting type
Floor fixed
- Factory colour
Grey
- Width
785 mm
- Height
320 mm
- Dim
(W x H x D) 785 x 320 x 1125 mm
- Depth
1125 mm
- Content
1 pc(s)
Floor installation
II
Grey
785 mm
320 mm
1125 mm
7035
FALSE
Untreated
645 mm
Door
711 mm
Plastic
None
TRUE
IK10
Single
IP44
FALSE
TRUE
FALSE
25 mm
25 mm
Closed
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3104150 Striebel & John 4TBE843181C0100 EHP321 Switchboard cabinet Floor fixed Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3104150 Striebel & John 4TBE843181C0100 EHP321 Switchboard cabinet Floor fixed Content 1 pc(s)
Description
Cable distribution cabinet with profiled surface. They have a three-point lock with swivel lever handle for profile half cylinders. The cabinets are made of hot-pressed, glass-fiber reinforced polyester, colored in RAL 7035 light gray. They are corrosion resistant and UV resistant and therefore suitable for outdoor use. The housings are suitable for ambient conditions from -35°C to +70°C. The open door can be easily dismantled by removing the hinge pins for optimal access to the cabinet. The door opening angle is greater than 180°. There are pressed-in core holes in the rear panel for accommodating M8 press-in nuts used to fasten busbars, mounting frame or mounting plate. The housings are delivered with open bottom; base plates are available in accessories. There are mounting points in the side wall for mounting horizontal busbars. The housings are intended for mounting on sockets according to DIN 43629 with standard dimensions between the mounting points. EHP321 Cabinet AP Gr.1 1125x785x320 EH3, profiled with SHG degree of protection IP44, IK10
