Striebel & John M65W336TN3 1SLM006500S1216 Switchboard cabinet Surface-mount No. of partitions = 36 No. of rows = 3 Cont
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
No. of partitions
36
No. of rows
3
Mounting type
Surface-mount
Width
320 mm
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
Only 1 Piece(s) available
Highlights & Details

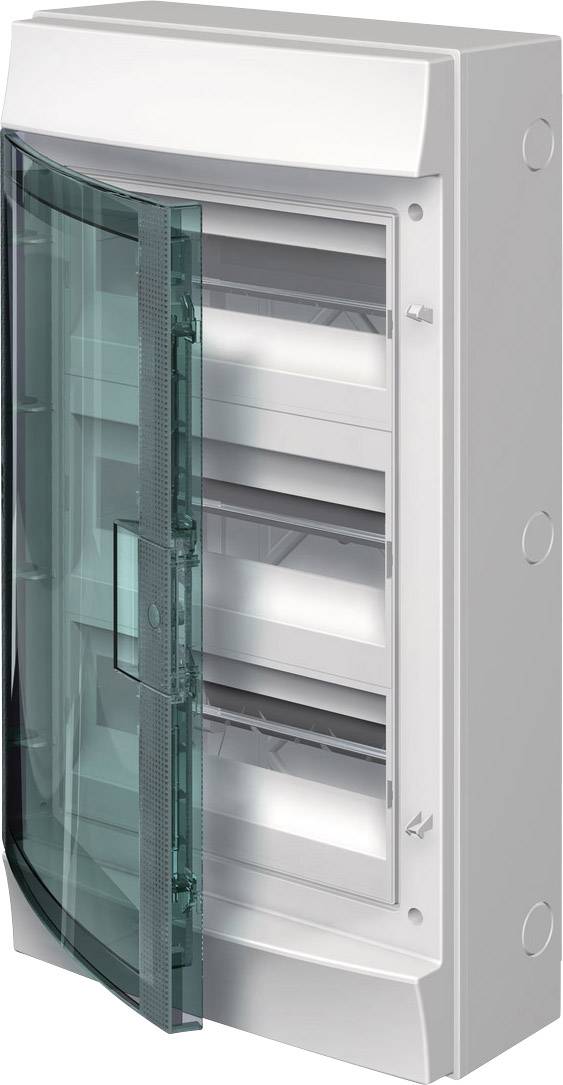

Surface-mounted distributor M65 W 336 TN 3
- IP65
Technical specifications
- IP65 rating
- Product type
Switchboard cabinet
- No. of partitions
36
- with PE and N terminals
No
- No. of rows
3
- Mounting type
Surface-mount
- Factory colour
Grey-white (RAL 7035)
- Width
320 mm
- Height
600 mm
- Dim
(W x H x D) 320 x 600 x 155 mm
- Depth
155 mm
- Content
1 pc(s)
- Weight
0
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1337894 Striebel & John M65W336TN3 1SLM006500S1216 Switchboard cabinet Surface-mount No. of partitions = 36 No. of rows = 3 Cont
Description
With the circuit distributors of the series Mistral65 offers an innovative, complete and versatile STRIEBEL & JOHN distributor series for industrial, commercial or private applications. The circuit distributor meet throughout the high protection class IP65. Their attractive design also helps the high requirements of the customer to aesthetics, functionality and ease of installation. The interior is well prepared for various applications. Whether modular installation devices or control and alarm technology, rails or mounting plate, the innovative Mistral65 offers a high degree of flexibility.
For the cable entry are more easily breakable metric knockouts at the top, bottom and sides. External mounting brackets, optional secure wall mounting. An ergonomically shaped handle with snap fastener makes it easy to open and close the doors. For all multi-row designs, the row spacing of the top hat profile rail between 125 mm and 150 mm. For ABB circuit breakers, the top hat rails toward the rear. This allows the combination of various device depths at homogeneous installation level. More flexibility through closed covers and mounting plates. The removable device support facilitates the assembly and wiring. Within the distribution there is a generous wiring space with built-in wire holders and mounting options for cable ties. Transparent doors - rapid detection of light signals.
This text is machine translated.
For the cable entry are more easily breakable metric knockouts at the top, bottom and sides. External mounting brackets, optional secure wall mounting. An ergonomically shaped handle with snap fastener makes it easy to open and close the doors. For all multi-row designs, the row spacing of the top hat profile rail between 125 mm and 150 mm. For ABB circuit breakers, the top hat rails toward the rear. This allows the combination of various device depths at homogeneous installation level. More flexibility through closed covers and mounting plates. The removable device support facilitates the assembly and wiring. Within the distribution there is a generous wiring space with built-in wire holders and mounting options for cable ties. Transparent doors - rapid detection of light signals.
This text is machine translated.
