Studer 108241 Relais Option Modul ARM-02 Adapter
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

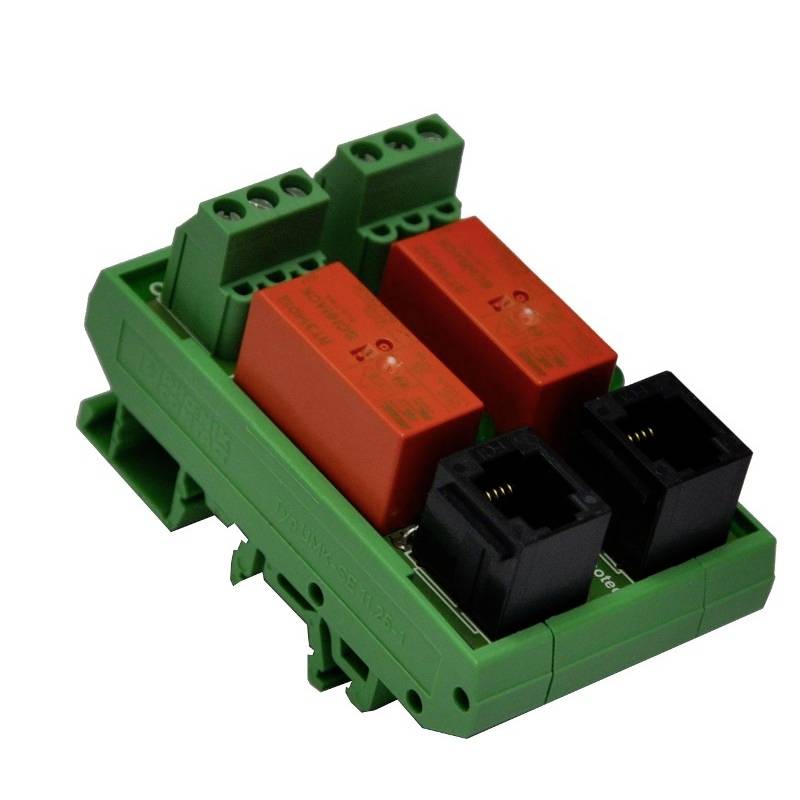

Relay Studer option module ARM-02
- 2 relays as XTS auxiliary contacts
Technical specifications
- Product type
Adapter
- Dim
(W x H x D) 45 x 45 x 73 mm
- Weight
200 g
- Content
1 pc(s)
- Width
45 mm
- Height
45 mm
- Depth
73 mm
Documents & Downloads
Datasheet
Datasheet 3024621 Studer 108241 Relais Option Modul ARM-02 Adapter
User & Safety Instructions
User & Safety Instructions 3024621 Studer 108241 Relais Option Modul ARM-02 Adapter
Description
This module contains the two auxiliary contacts that are not integrated in XTS. These relays can be controlled via the XTS and directly used as the auxiliary contacts already integrated in the XTH and XTM.
The module can be mounted on a DIN rail.
If the socket (2) is already occupied by the temperature probe BTS-01, it must be plugged in to the free socket on the ARM-02.
This text is machine translated.
The module can be mounted on a DIN rail.
If the socket (2) is already occupied by the temperature probe BTS-01, it must be plugged in to the free socket on the ARM-02.
This text is machine translated.
Scope of delivery
- Relays
- User manual.
