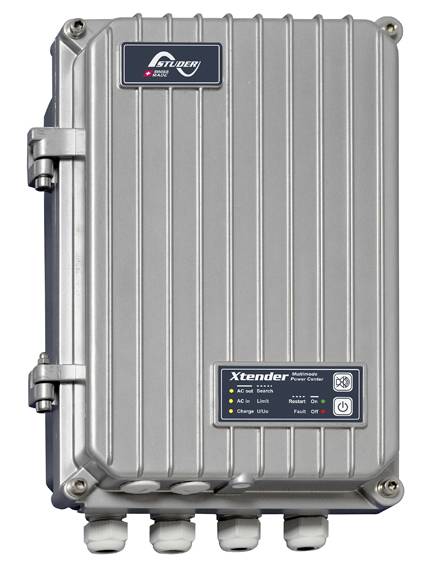

Studer Inverter XTS 900-12 500 W 12 V - 230 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Inverter / charger Studer XTS 900-12
- 500 W
- 12 VDC
- 230 VAC / 45-65 Hz,
- Charging current 35 A
- This text is machine translated.
Technical specifications
- Input voltage
9.5 - 17 V
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V
500 W
- Input voltage
12 V
- Inputs
Screw terminals
DC terminals
- Output frequency
50 Hz
- Remote control
Optional
- Weight
8.2 kg
- Cooling method
Fan
- Width
210 mm
- Height
110 mm
- Length
310 mm
- Peak output power
2300 W
- Standby consumption
1.4 W
- Type
XTS 900-12
Documents & Downloads
Datasheet
Datasheet 3024619 Studer Inverter XTS 900-12 500 W 12 V - 230 V
User & Safety Instructions
User & Safety Instructions 3024619 Studer Inverter XTS 900-12 500 W 12 V - 230 V
Description
Features
- Transfer switch 16 A
- Sine wave voltage
- Own power draw 1.4 W / 7 W
- Parallel connection 3x 3PH
- DC-connection M8
- LED
- Programmable
- Electronic safety function
- With fan ECF_01: Cont 650W / 30 min. 900 W
- Option (RCC, Xcon, RCM, ARM-02, ECF-01, BTS)
- IP54
Scope of delivery
- Inverter/charger
- User manual.
