Studer MBW 60 MBW60 Battery monitoring

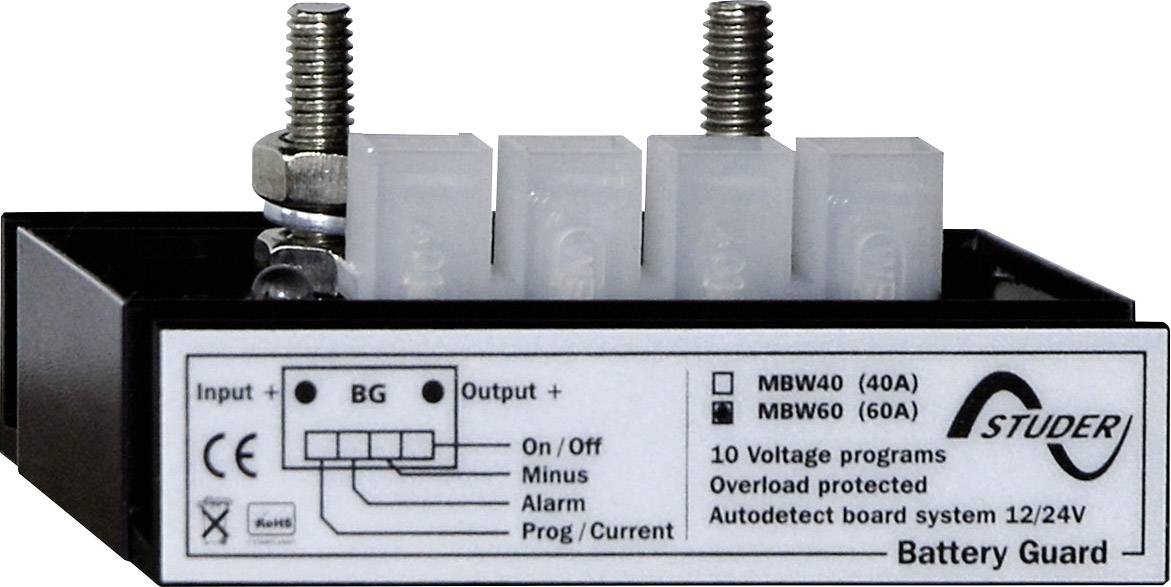

The Battery Guard MBW is an intelligent, watertight, Battery monitor with extension options for on / off switch, alarm buzzer or relay and our Current Watch current sensor (not included). The unit is provided with two screw, an input + and an output + to ensure low losses. Other connections, like the minus and the accessories are connected via a 4-pin, 6.3 mm Faston connector. A blue LED diode indicates the operating state (on / off) and in the programming mode, the LED diode shows the program position. The MBW is provided with with an automatic detection system board. This means that the MBW automatically determines what the battery voltage of the system (12 V or 24 V). There is a selection of ten on / off threshold voltage programs, for both 12 V and 24 V, which can be easily programmed. The own power consumption of the MBW is minimal. In OFF mode or when Undervoltage of consumption is lower than 2 mA.
