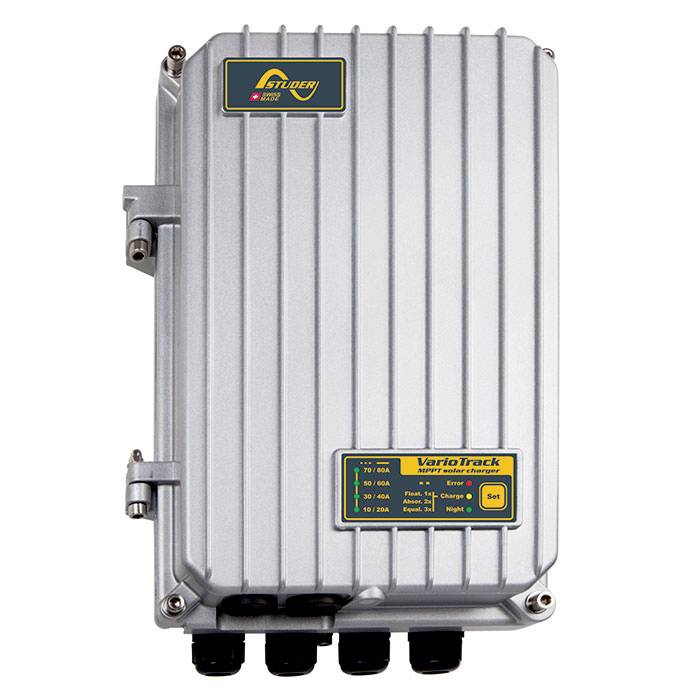

Studer VarioTrack VT-40 Charge controller MPPT 12 V, 24 V, 48 V 40 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar charge controller MPPT Studer VarioTrack VT-40
- Battery voltage 12/24/48V, 625/1250/2500W recommended maximum power PV
- 40A maximum current
- IP54
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
48 V
- Temperature range
-20 - +55 °C
- Charging current (max.)
40 A
- Control type
MPPT
- Dim
(W x H x D) 310 x 220 x 120 mm
- Weight
3.8 kg
- Width
310 mm
- Height
220 mm
- Depth
120 mm
Documents & Downloads
Datasheet
Datasheet 3024629 Studer VarioTrack VT-40 Charge controller MPPT 12 V, 24 V, 48 V 40 A
User & Safety Instructions
User & Safety Instructions 3024629 Studer VarioTrack VT-40 Charge controller MPPT 12 V, 24 V, 48 V 40 A
Description
The variotrack MPPT solar charging regulator maximizes the energy generated by optimally charging the batteries. The accuracy of the Maximum Power Point Tracking (MPPT) algorithm, the high peak efficiency and the low consumption ensure optimum utilization of the energy generated by the PV modules.
The Variotrack is 100% manufactured in Switzerland.
This text is machine translated.
The Variotrack is 100% manufactured in Switzerland.
This text is machine translated.
Features
- Simple and safe start-up with extensive protection against wrong wiring
- Robust and durable, device designed for use under harsh environmental conditions (IP54).
- High tracking efficiency above 99%
- Up to 15 VarioTrack parallel on the same communication bus (75kW)
- 4-stage charger fully programmable for longer battery life
- Low intrinsic consumption: Below 1W in night mode
- Display with 7 LEDs for displaying the status and current strength
- Suitable for any solar and battery system
- Optimal use in an Xtender system with synchronized battery management
Scope of delivery
- Solar charge regulator
- User manual.
