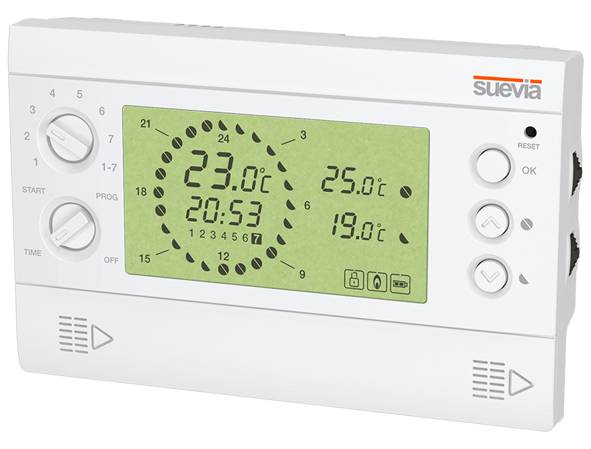

Suevia SU325700 Thermostat Indoor thermostat Surface-mount, Wall 24h mode, 7 day mode Digital clock thermostat with rela
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 34.45 / piece)
€ 34.45
plus VAT.
Only 1 Piece(s) available
Highlights & Details
TERMOMAT digital Thermostat for Temperature control with day and weekly programming
- Digital Thermostat
- Easy and intuitive daily and weekly programming
- Manual and automatic operation
- 2 adjustable temperature levels: Reduction and comfort
- 8 programs with a period of 60 minutes
- Temperature control from 5ºC to 35ºC
- Automatic winter- / summer time changeover
- Option to lock the key and connect to the telephone control
- Frost-protection temperature set permanently to 4 ºC when the TermoMat is switched off
Technical specifications
- Toggling between summer and winter time automatically
- Keypad lock
- Keyboard operation with dial and push buttons
- 10 minutes of data preservation when changing the battery
- Measurement and control range 5 °C to 35 °C.
- Adjustable temperature: 0.5 °C switching elements / type of action: 1B, 1S, 1T, 1U operating temperature: 0 °C to +50 °C.
- Battery service life approx. 1 year
- Product type
Indoor thermostat
- Operation type
electronical
- Switching cycle
24h mode
7 day mode
- Max. temperature setting
30 °C
- Temperature settings
30 °C (max)
- Frost protection
Yes
- Display
Yes
- Remote sensor
No
- Compatible with
Heaters
Air conditioners
- Mounting type
Surface-mount
Wall
- Power supply (LOV)
battery-powered
- Operating voltage
3 V DC
- Hysteresis
0.2 °C
- Contact load capacity
5 A
- Contact current
5 A
- Nighttime drop
Yes
- Factory colour
White
- Similar RAL
9010
- Width
171 mm
- Height
78 mm
- Length
26 mm
IP40
- Dim
(L x W x H) 26 x 171 x 78 mm
- Type
Digital clock thermostat with relay output (changeover contact)
- Weight
200 g
Documents & Downloads
Datasheet
Datasheet 3828184 Suevia SU325700 Thermostat Indoor thermostat Surface-mount, Wall 24h mode, 7 day mode Digital clock thermostat with rela
User & Safety Instructions
User & Safety Instructions 3828184 Suevia SU325700 Thermostat Indoor thermostat Surface-mount, Wall 24h mode, 7 day mode Digital clock thermostat with rela
Description
The TermoMat is a programmable, easy-to-use electronic room and clock thermostat. It enables the assignment of different temperature levels for different periods of time and is suitable for the control of heating or air-conditioning in living and office buildings. Thanks to the large display and the removable mounting base, programming is extremely comfortable.
This text is machine translated.
This text is machine translated.
Features
- Operating voltage: 2 x 1.5 V AAA alkaline batteries (LR03)
- SWITCHING CAPACITY 5(1) A 250 V AC
- Temperature update: Every 60 seconds
- Temperature range +5 ºC to +35 ºC
- Ambient temperature 0 ºC to +50 ºC
- IP40 to EN 60529
Scope of delivery
- Thermostat, TermoMat
- Fixing base / socket
- Screws
- User manual
- (Batteries 2x AAA 1.5 V are not included in the delivery)
