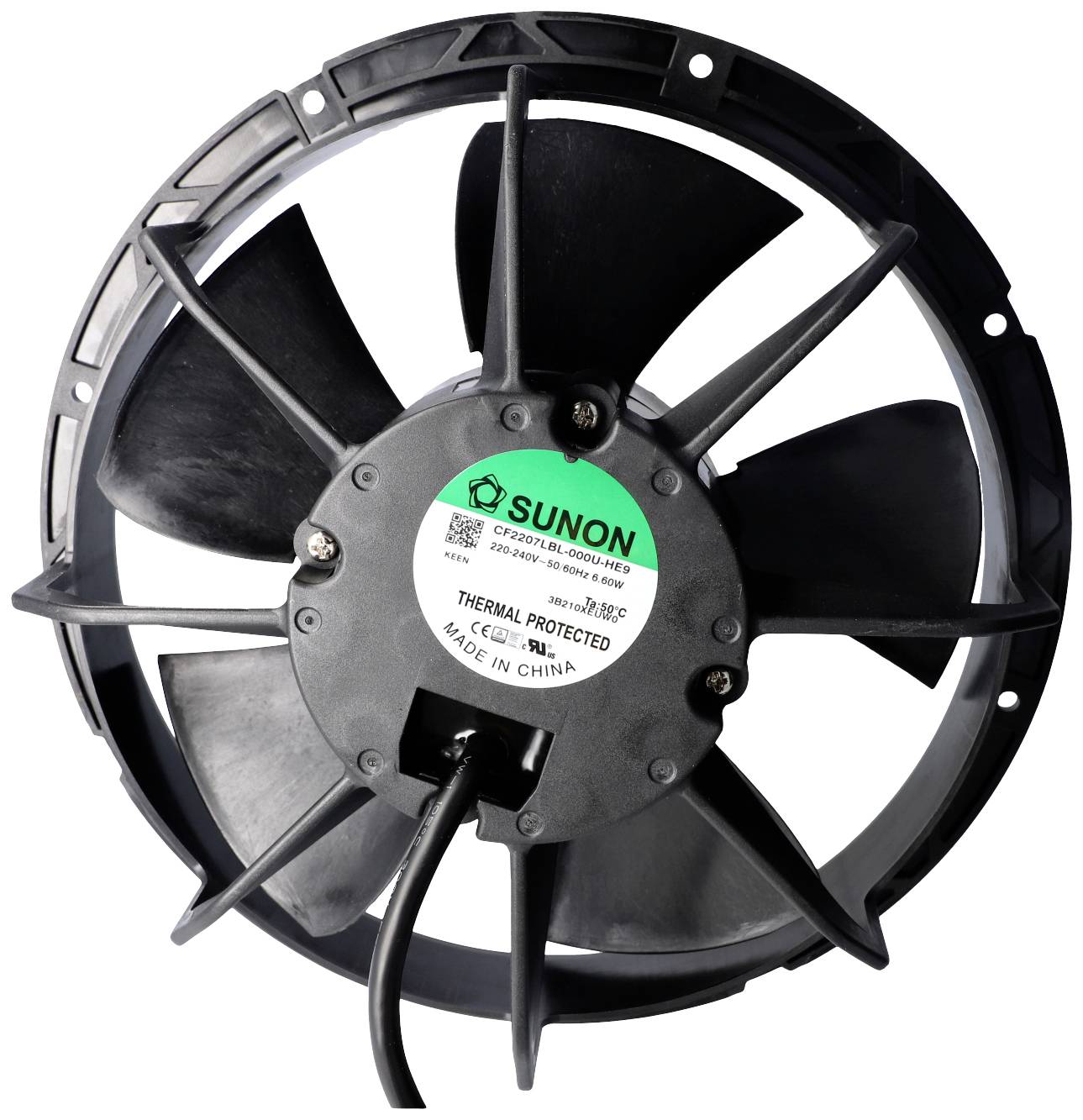

Sunon CF2207LBL-000U-HE9 Axial fan 230 V AC 315.93 m³/h (W x H) 200.6 mm x 77.7 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V AC
Power
3.2 W
Type of bearing
Ball bearing
Air flow rate
315.93 m³/h
Datasheet (PDF)
Technical specifications
- Strand type: Wire, UL SVT 18AWGx3C, 105°C, 300V
- Product type
Axial fan
- Type
CF2207LBL-000U-HE9
- Nominal voltage
230 V AC
- Min. operating voltage
180 V AC
- Max. operating voltage
250 V AC
- Operating voltage
180 - 250 V AC
- Max. current consumption
0.038 A
3.2 W
- Type of bearing
Ball bearing
- Rotational speed
950 U/min
- Noise emission (max.)
29.9 dB
- Air flow rate
315.93 m³/h
- Connection
Braid
- Pressure (max.)
39.84 Pa
- Factory colour
Black
- Material
Thermoplastic
- Weight
1.141 g
- Min. temperature
-40 °C
- Max. temperature
50 °C
- Width
200.6 mm
- Height
77.7 mm
- Dim
(W x H) 200.6 mm x 77.7 mm
