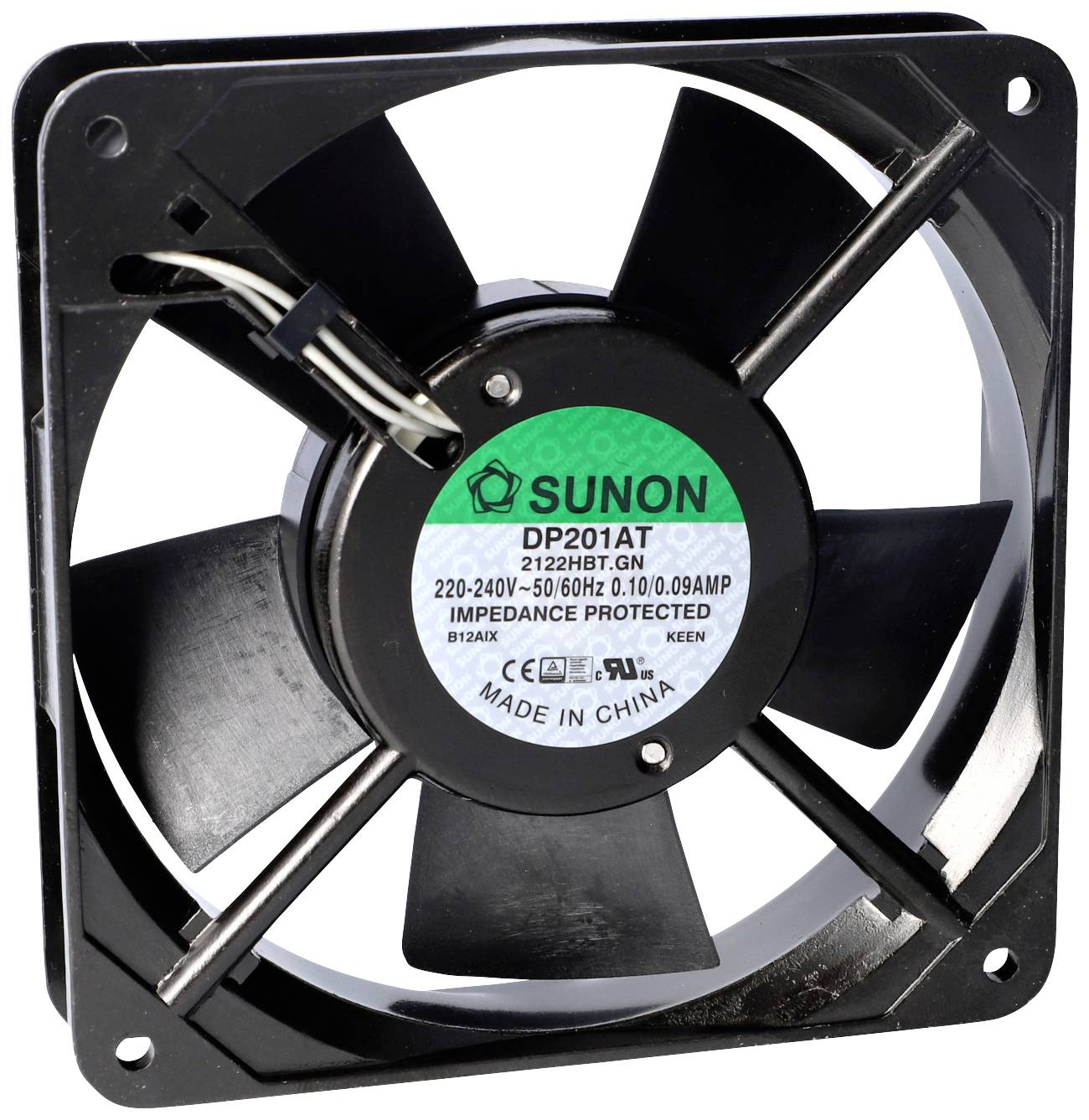

Sunon DP201AT-2122HSL.GN Axial fan 230 V AC 108.71 m³/h (L x W x H) 25 x 120 x 120 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V AC
Power
18 W
Type of bearing
Plain bearing
Air flow rate
108.71 m³/h
Datasheet (PDF)
Technical specifications
- Connection type: Wire AWG24, UL3266, stripped, tinned
- Product type
Axial fan
- Type
DP201AT-2122HSL.GN
- Nominal voltage
230 V AC
- Min. operating voltage
185 V AC
- Max. operating voltage
245 V AC
- Operating voltage
185 - 245 V AC
- Max. current consumption
0.1 A
18 W
- Type of bearing
Plain bearing
- Rotational speed
2000 U/min
- Noise emission (max.)
43 dB
- Air flow rate
108.71 m³/h
- Connection
Braid
- Pressure (max.)
32.37 Pa
- Factory colour
Black
- Material
Aluminium (die-cast)
Thermoplastic
- Weight
326.4 g
- Min. temperature
-10 °C
- Max. temperature
70 °C
- Length
25 mm
- Width
120 mm
- Height
120 mm
- Dim
(L x W x H) 25 x 120 x 120 mm
