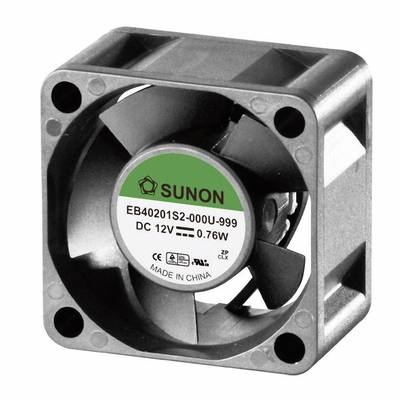

Sunon EE40201S2-1000U-999 Axial fan 12 V DC 13.08 m³/h (L x W x H) 40 x 40 x 20 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
12 V DC
Power
0.76 W
Type of bearing
Plain bearing
Air flow rate
13.08 m³/h
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
6% = € 0.47
€ 7.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.39 / piece)
€
Technical specifications
- Design: DR MagLev
- Product type
Axial fan
- Type
EE40201S2-1000U-999
- Nominal voltage
12 V DC
- Max. current consumption
63 mA
0.76 W
- Type of bearing
Plain bearing
- Rotational speed
6200 U/min
- Noise emission (max.)
21 dB
- Air flow rate
13.08 m³/h
- Connection
Open end cable
- Cable length
25.00 cm
- Pressure (max.)
39.83 Pa
- Factory colour
Black
- Material
Plastic
- Length
40 mm
- Width
40 mm
- Height
20 mm
- Dim
(L x W x H) 40 x 40 x 20 mm
- Type
DR
0.76 W
- Pressure
39.83 Pa
- Output (max.) (details)
13.08 m³/h
- Max. noise generation
21 dBa
- Nominal RPM
6200 U/min
- Current consumption
0.063 A
- Operating voltage
12 V DC
Documents & Downloads
Datasheet
Datasheet 183786 Sunon EE40201S2-1000U-999 Axial fan 12 V DC 13.08 m³/h (L x W x H) 40 x 40 x 20 mm
User & Safety Instructions
User & Safety Instructions 183786 Sunon EE40201S2-1000U-999 Axial fan 12 V DC 13.08 m³/h (L x W x H) 40 x 40 x 20 mm
Description
DR fan (‘dust-resistant’) with the following advantages:
The ‘Blanked & Seamless’ technology offers the best possible protection against oil leakage.
The innovative ‘Seal & Clip‘ design guarantees a high resistance against the ingress of dust.
SUNON ® fans are used in all areas where heat is to be discharged (for example, cooling of building elements, control cabinet construction, computer systems, engineering and much more). Approval: UL, CUR, German TÜV.
The ‘Blanked & Seamless’ technology offers the best possible protection against oil leakage.
The innovative ‘Seal & Clip‘ design guarantees a high resistance against the ingress of dust.
SUNON ® fans are used in all areas where heat is to be discharged (for example, cooling of building elements, control cabinet construction, computer systems, engineering and much more). Approval: UL, CUR, German TÜV.
