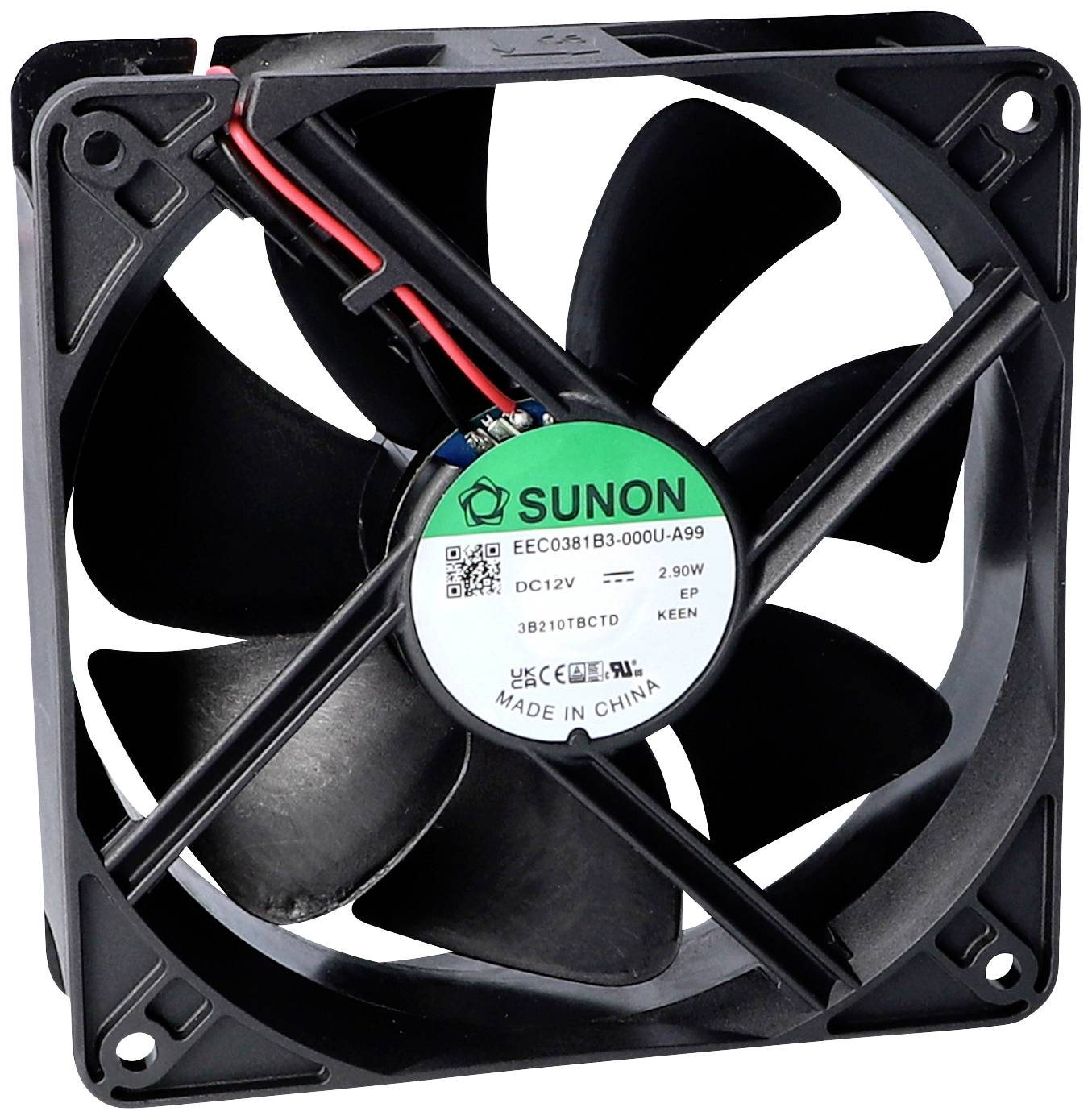

Sunon EEC0381B2-000U-A99 Axial fan 12 V DC 197.03 m³/h (L x W x H) 38 x 120 x 120 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
12 V DC
Power
5.1 W
Type of bearing
Ball bearing
Air flow rate
197.03 m³/h
Datasheet (PDF)
Technical specifications
- Connection type: Strands UL1007 AWG24, stripped, tin-plated
- Product type
Axial fan
- Type
EEC0381B2-000U-A99
- Nominal voltage
12 V DC
- Min. operating voltage
6 V DC
- Max. operating voltage
13.8 V DC
- Operating voltage
6 - 13.8 V DC
- Max. current consumption
0.421 A
5.1 W
- Type of bearing
Ball bearing
- Rotational speed
2600 U/min
- Noise emission (max.)
44 dB
- Air flow rate
197.03 m³/h
- Connection
Braid
- Pressure (max.)
64.74 Pa
- Factory colour
Black
- Material
Thermoplastic
70000 h
- Weight
242.2 g
- Min. temperature
-10 °C
- Max. temperature
70 °C
- Length
38 mm
- Width
120 mm
- Height
120 mm
- Dim
(L x W x H) 38 x 120 x 120 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2992668 Sunon EEC0381B2-000U-A99 Axial fan 12 V DC 197.03 m³/h (L x W x H) 38 x 120 x 120 mm
User & Safety Instructions
User & Safety Instructions 2992668 Sunon EEC0381B2-000U-A99 Axial fan 12 V DC 197.03 m³/h (L x W x H) 38 x 120 x 120 mm
