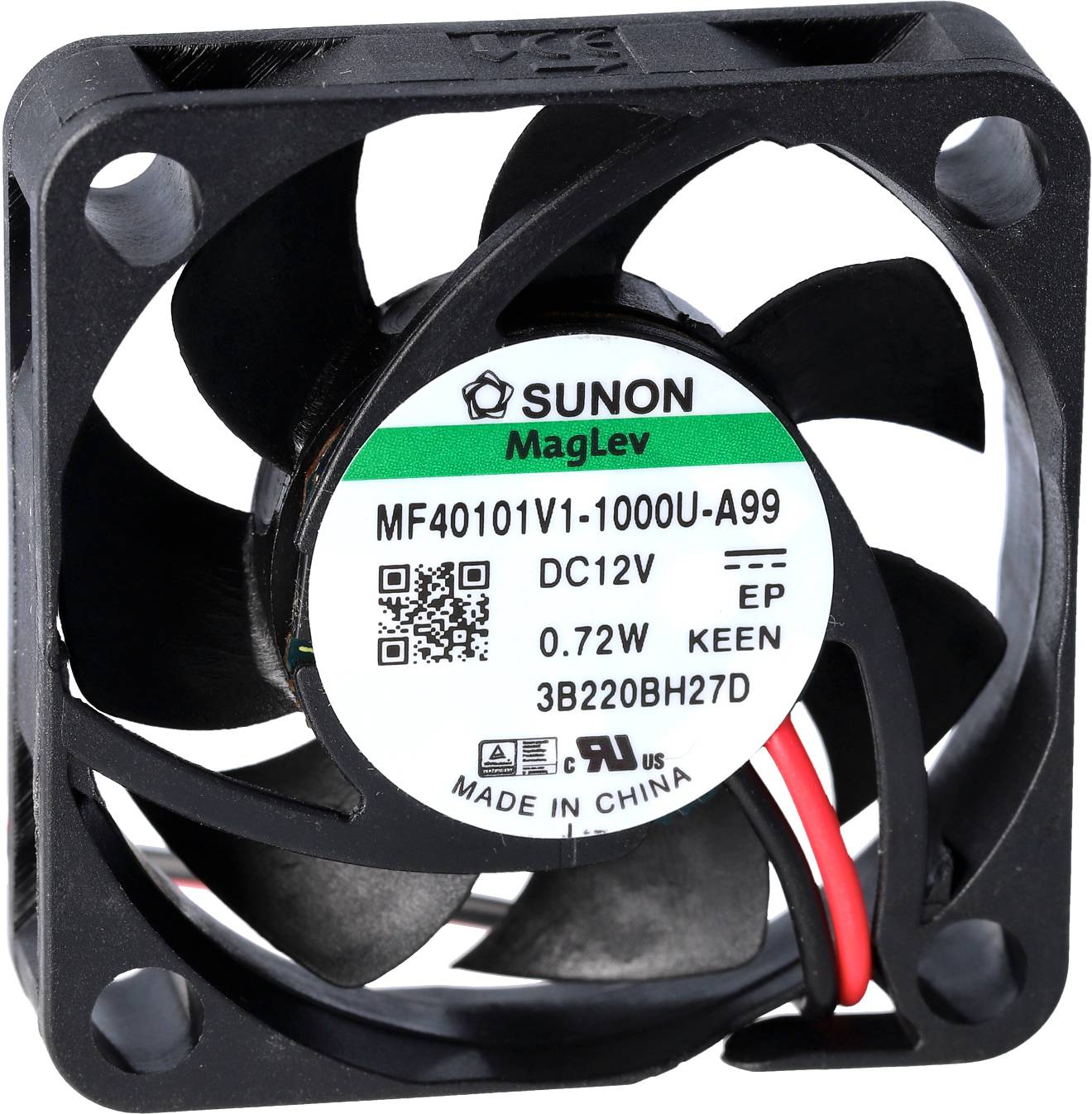

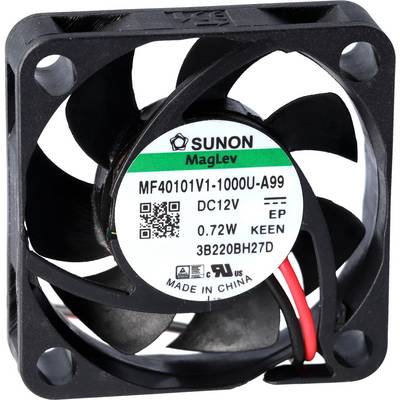

Sunon EF40101B1-1000U-A99 Axial fan 12 V DC 13.58 m³/h (L x W x H) 10 x 40 x 40 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
12 V DC
Power
0.99 W
Type of bearing
Ball bearing
Air flow rate
13.58 m³/h
Datasheet (PDF)
Technical specifications
- Connection type: UL1007 AWG26 wires, stripped, tin-plated
- Product type
Axial fan
- Type
EF40101B1-1000U-A99
- Nominal voltage
12 V DC
- Min. operating voltage
6 V DC
- Max. operating voltage
13.8 V DC
- Operating voltage
6 - 13.8 V DC
- Max. current consumption
0.082 A
0.99 W
- Type of bearing
Ball bearing
- Rotational speed
7000 U/min
- Noise emission (max.)
27.3 dB
- Air flow rate
13.58 m³/h
- Connection
Braid
- Pressure (max.)
47.31 Pa
- Factory colour
Black
- Material
Thermoplastic
70000 h
- Weight
16.274 g
- Min. temperature
-10 °C
- Max. temperature
70 °C
- Length
10 mm
- Width
40 mm
- Height
40 mm
- Dim
(L x W x H) 10 x 40 x 40 mm
Documents & Downloads
Datasheet
Datasheet 2996472 Sunon EF40101B1-1000U-A99 Axial fan 12 V DC 13.58 m³/h (L x W x H) 10 x 40 x 40 mm
User & Safety Instructions
User & Safety Instructions 2996472 Sunon EF40101B1-1000U-A99 Axial fan 12 V DC 13.58 m³/h (L x W x H) 10 x 40 x 40 mm
