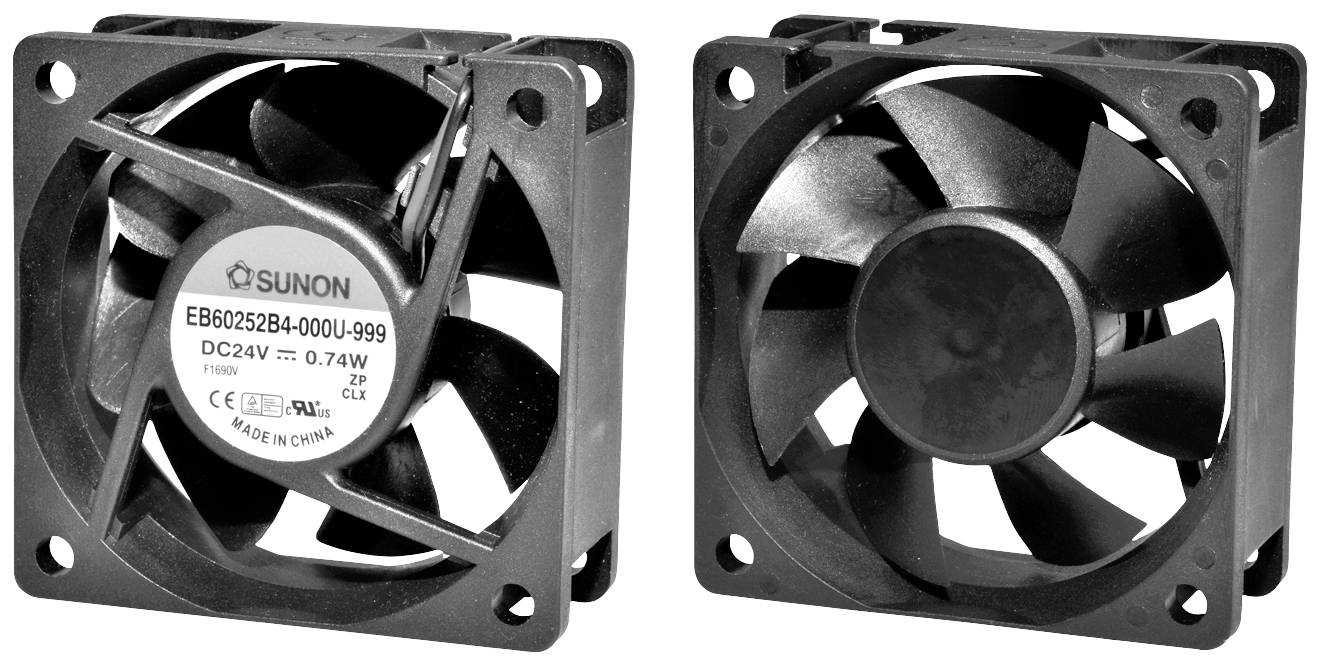

Sunon EF60252S1-1000U-A99 Axial fan 24 V DC 39.9 m³/h (L x W x H) 25 x 60 x 60 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
24 V DC
Power
1.2 W
Type of bearing
Plain bearing
Air flow rate
39.9 m³/h
Datasheet (PDF)
Technical specifications
- Connection type: UL1007 AWG26 wires, stripped, tin-plated
- Product type
Axial fan
- Type
EF60252S1-1000U-A99
- Nominal voltage
24 V DC
- Min. operating voltage
8 V DC
- Max. operating voltage
27.6 V DC
- Operating voltage
8 - 27.6 V DC
- Max. current consumption
0.050 A
1.2 W
- Type of bearing
Plain bearing
- Rotational speed
4500 U/min
- Noise emission (max.)
27 dB
- Air flow rate
39.9 m³/h
- Connection
Braid
- Pressure (max.)
52.29 Pa
- Factory colour
Black
- Material
Thermoplastic
35000 h
- Weight
53.56 g
- Min. temperature
-10 °C
- Max. temperature
70 °C
- Length
25 mm
- Width
60 mm
- Height
60 mm
- Dim
(L x W x H) 25 x 60 x 60 mm
Documents & Downloads
Datasheet
Datasheet 2992672 Sunon EF60252S1-1000U-A99 Axial fan 24 V DC 39.9 m³/h (L x W x H) 25 x 60 x 60 mm
User & Safety Instructions
User & Safety Instructions 2992672 Sunon EF60252S1-1000U-A99 Axial fan 24 V DC 39.9 m³/h (L x W x H) 25 x 60 x 60 mm
