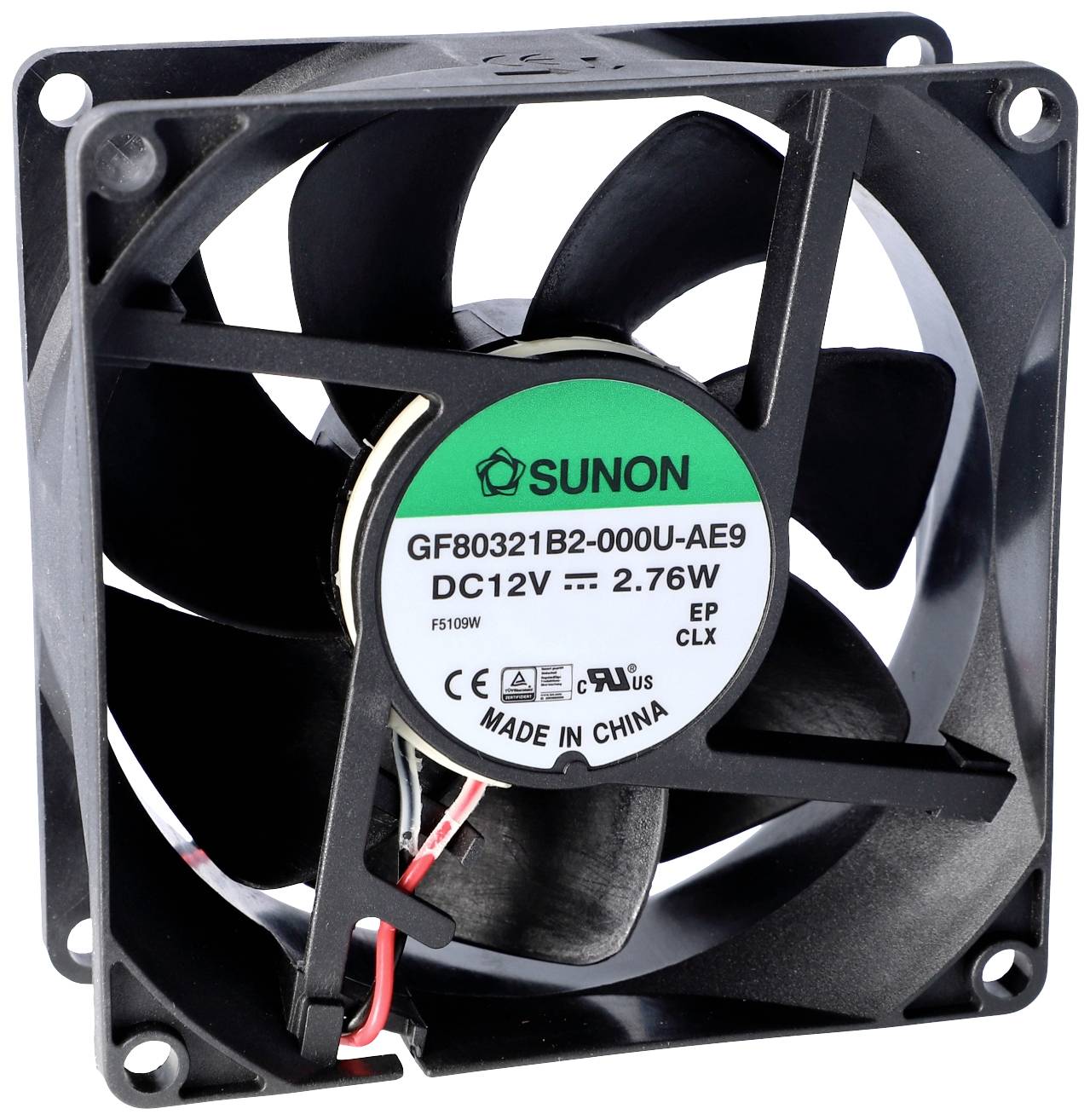

Sunon GF80321B2-000U-AE9 Axial fan 12 V DC 94.95 m³/h (L x W x H) 32 x 80 x 80 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
12 V DC
Power
2.76 W
Type of bearing
Ball bearing
Air flow rate
94.95 m³/h
Datasheet (PDF)
Technical specifications
- Connection type: Strands UL1007 AWG24, stripped, tin-plated
- Product type
Axial fan
- Type
GF80321B2-000U-AE9
- Nominal voltage
12 V DC
- Min. operating voltage
6 V DC
- Max. operating voltage
13.8 V DC
- Operating voltage
6 - 13.8 V DC
- Max. current consumption
0.23 A
2.76 W
- Type of bearing
Ball bearing
- Rotational speed
4500 U/min
- Noise emission (max.)
43.1 dB
- Air flow rate
94.95 m³/h
- Connection
Braid
- Pressure (max.)
79.68 Pa
- Factory colour
Black
- Material
Thermoplastic
70000 h
- Weight
129 g
- Min. temperature
-10 °C
- Max. temperature
70 °C
- Length
32 mm
- Width
80 mm
- Height
80 mm
- Dim
(L x W x H) 32 x 80 x 80 mm
