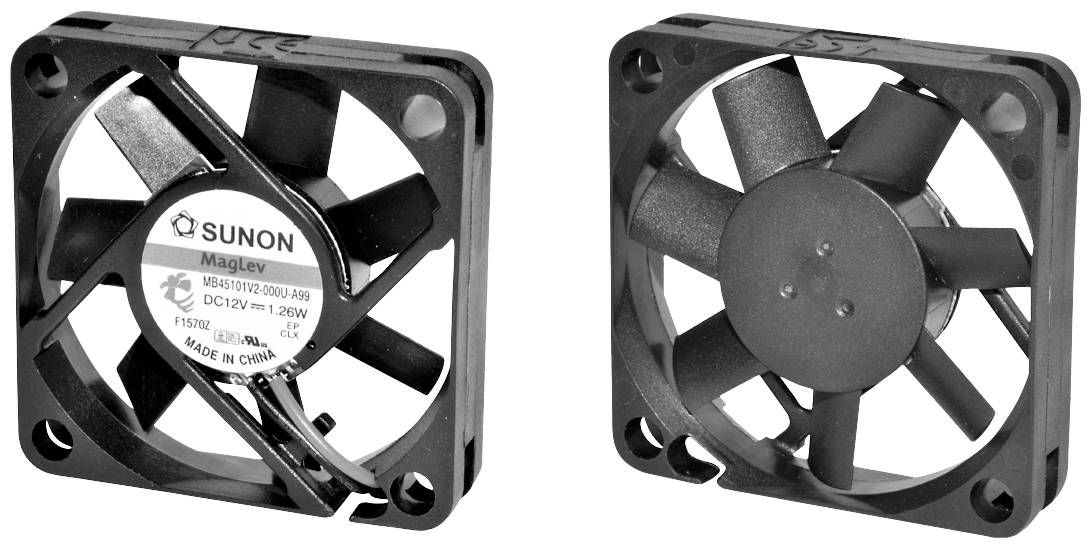

Sunon ME45101V1-000U-A99 Axial fan 12 V DC 20.04 m³/h (L x W x H) 10 x 45 x 45 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
12 V DC
Power
1.32 W
Type of bearing
Vapo (magnetic)
Air flow rate
20.04 m³/h
Datasheet (PDF)
Technical specifications
- Connection type: UL1007 AWG26 wires, stripped, tin-plated
- Product type
Axial fan
- Type
ME45101V1-000U-A99
- Nominal voltage
12 V DC
- Min. operating voltage
4.5 V DC
- Max. operating voltage
13.8 V DC
- Operating voltage
4.5 - 13.8 V DC
- Max. current consumption
0.11 A
1.32 W
- Type of bearing
Vapo (magnetic)
- Rotational speed
6500 U/min
- Noise emission (max.)
32.5 dB
- Air flow rate
20.04 m³/h
- Connection
Braid
- Pressure (max.)
44.82 Pa
- Factory colour
Black
- Material
Thermoplastic
60000 h
- Weight
17.32 g
- Min. temperature
-10 °C
- Max. temperature
70 °C
- Length
10 mm
- Width
45 mm
- Height
45 mm
- Dim
(L x W x H) 10 x 45 x 45 mm
Documents & Downloads
Datasheet
Datasheet 2992693 Sunon ME45101V1-000U-A99 Axial fan 12 V DC 20.04 m³/h (L x W x H) 10 x 45 x 45 mm
User & Safety Instructions
User & Safety Instructions 2992693 Sunon ME45101V1-000U-A99 Axial fan 12 V DC 20.04 m³/h (L x W x H) 10 x 45 x 45 mm
