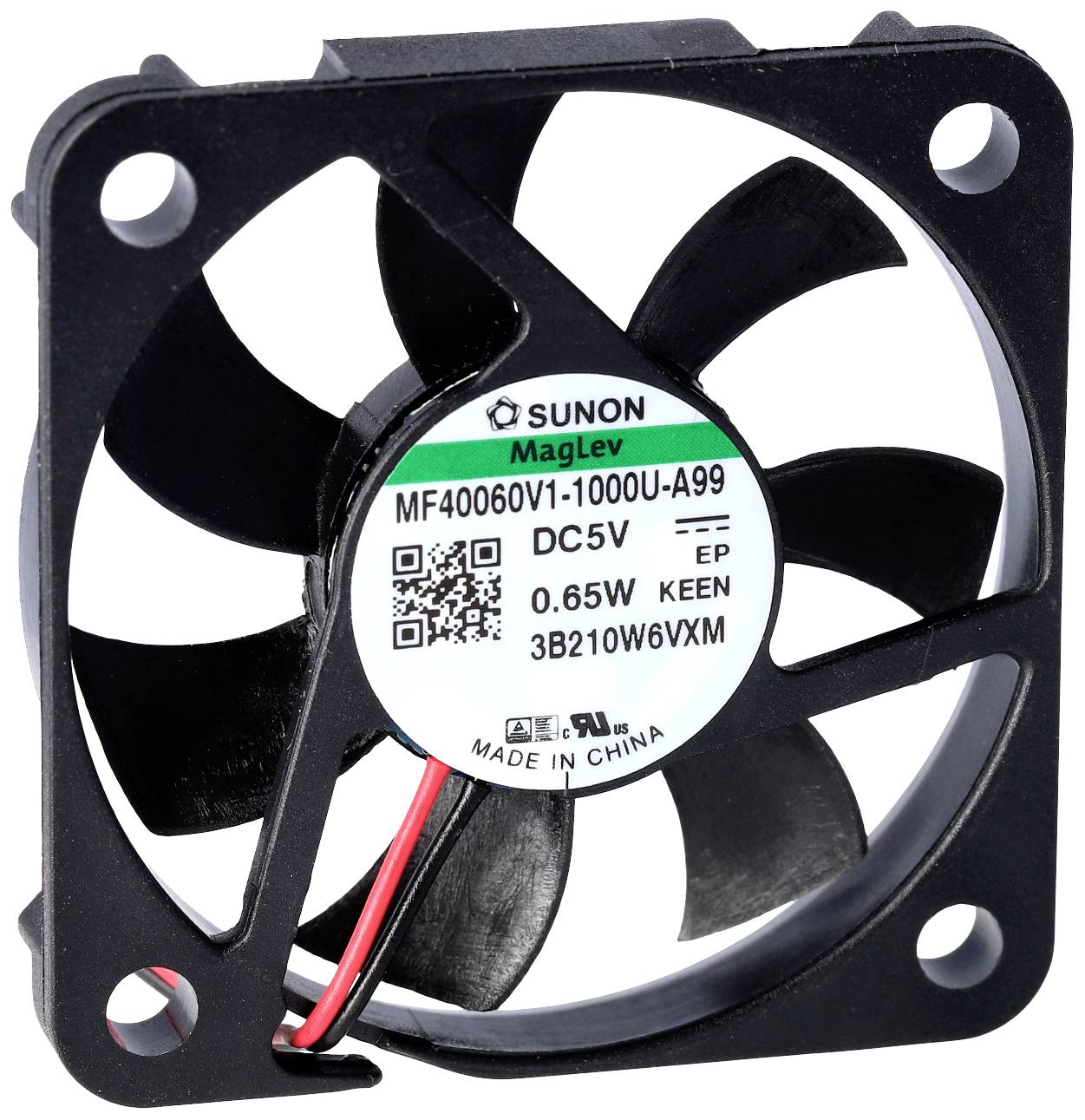

Sunon MF40060V2-1000U-A99 Axial fan 5 V DC 9.34 m³/h (L x W x H) 6 x 40 x 40 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
5 V DC
Power
0.33 W
Type of bearing
Vapo (magnetic)
Air flow rate
9.34 m³/h
Datasheet (PDF)
Technical specifications
- Type of connection: Strands UL1571 AWG28, stripped, tin-plated
- Product type
Axial fan
- Type
MF40060V2-1000U-A99
- Nominal voltage
5 V DC
- Min. operating voltage
2.5 V DC
- Max. operating voltage
6 V DC
- Operating voltage
2.5 - 6 V DC
- Max. current consumption
0.065 A
0.33 W
- Type of bearing
Vapo (magnetic)
- Rotational speed
6000 U/min
- Noise emission (max.)
25.3 dB
- Air flow rate
9.34 m³/h
- Connection
Braid
- Pressure (max.)
19.92 Pa
- Factory colour
Black
- Material
Thermoplastic
70000 h
- Weight
6.8 g
- Min. temperature
-10 °C
- Max. temperature
70 °C
- Length
6 mm
- Width
40 mm
- Height
40 mm
- Dim
(L x W x H) 6 x 40 x 40 mm
