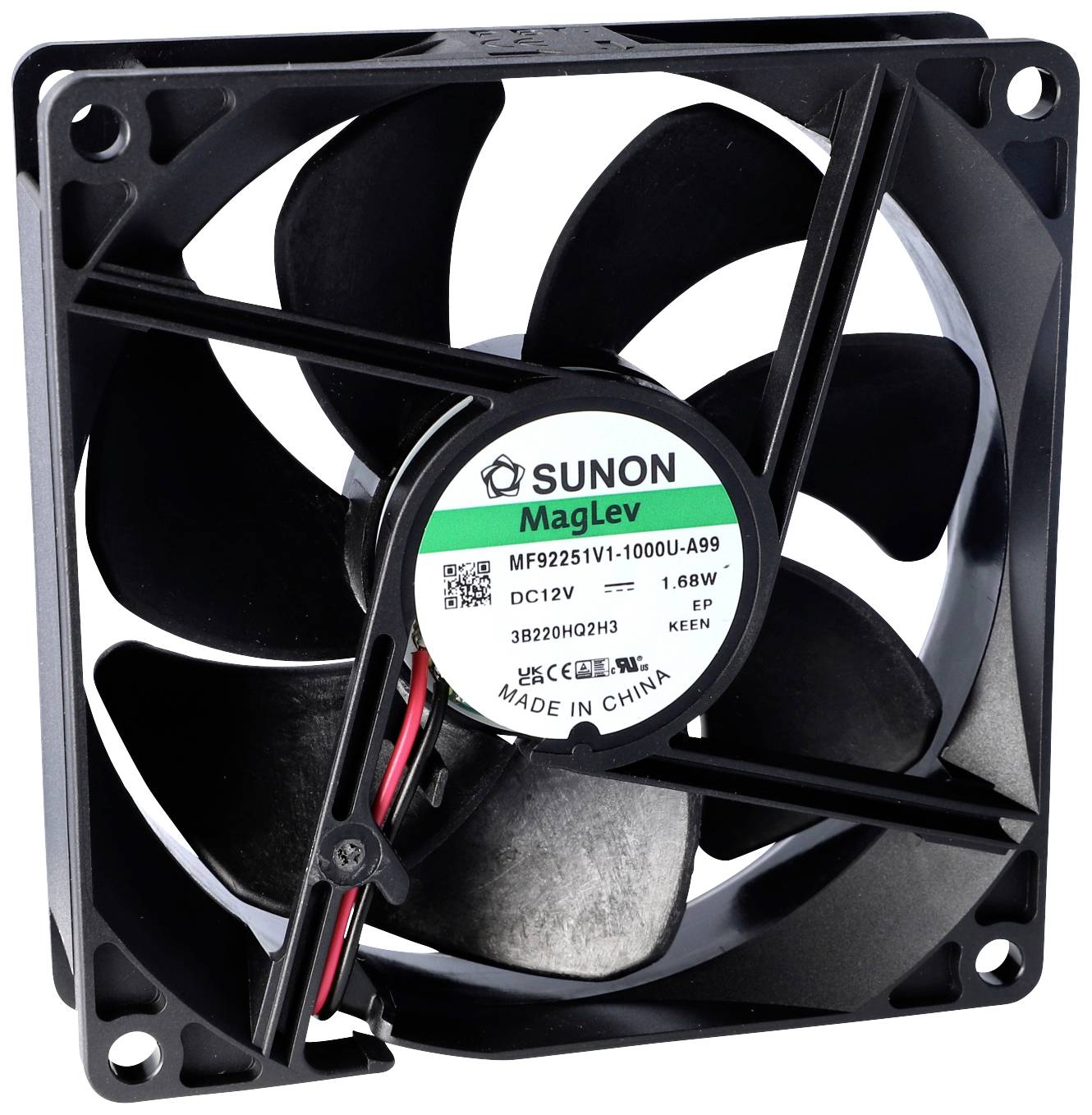

Sunon MF92251V2-1000U-A99 Axial fan 12 V DC 76.43 m³/h (L x W x H) 25 x 92 x 92 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
12 V DC
Power
1.26 W
Type of bearing
Vapo (magnetic)
Air flow rate
76.43 m³/h
Datasheet (PDF)
Technical specifications
- Connection type: Strands UL1007 AWG24, stripped, tin-plated
- Product type
Axial fan
- Type
MF92251V2-1000U-A99
- Nominal voltage
12 V DC
- Min. operating voltage
4.5 V DC
- Max. operating voltage
13.8 V DC
- Operating voltage
4.5 - 13.8 V DC
- Max. current consumption
0.105 A
1.26 W
- Type of bearing
Vapo (magnetic)
- Rotational speed
2700 U/min
- Noise emission (max.)
32 dB
- Air flow rate
76.43 m³/h
- Connection
Braid
- Pressure (max.)
32.37 Pa
- Factory colour
Black
- Material
Thermoplastic
70000 h
- Weight
92 g
- Min. temperature
-10 °C
- Max. temperature
70 °C
- Length
25 mm
- Width
92 mm
- Height
92 mm
- Dim
(L x W x H) 25 x 92 x 92 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2996485 Sunon MF92251V2-1000U-A99 Axial fan 12 V DC 76.43 m³/h (L x W x H) 25 x 92 x 92 mm
User & Safety Instructions
User & Safety Instructions 2996485 Sunon MF92251V2-1000U-A99 Axial fan 12 V DC 76.43 m³/h (L x W x H) 25 x 92 x 92 mm
