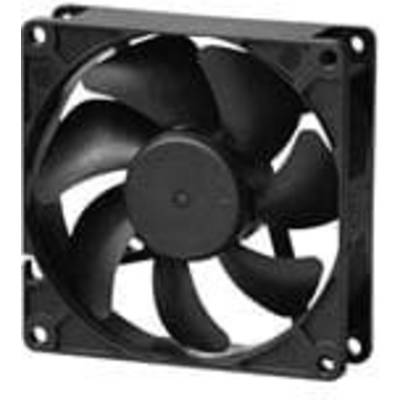

Sunon PF92252V1-1000U-A99 Axial fan 24 V DC 127.5 m³/h (L x W x H) 92 x 92 x 25 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
24 V DC
Power
5.81 W
Type of bearing
Vapo (magnetic)
Air flow rate
127.5 m³/h
Datasheet (PDF)
105 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.55
5
6% = € 0.46
€ 7.09
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.55 / piece)
€ 24.36
-69 %
€
Technical specifications
- Product type
Axial fan
- Type
PF92252V1-1000U-A99
- Nominal voltage
24 V DC
- Min. operating voltage
10 V
- Max. operating voltage
27.6 V
- Operating voltage
10 - 27.6 V
- Max. current consumption
242 mA
5.81 W
- Type of bearing
Vapo (magnetic)
- Rotational speed
4500 U/min
- Noise emission (max.)
45.5 dB
- Air flow rate
127.5 m³/h
- Min. temperature
-10 °C
- Max. temperature
+70 °C
- Length
92 mm
- Width
92 mm
- Height
25 mm
- Dim
(L x W x H) 92 x 92 x 25 mm
Documents & Downloads
Datasheet
Datasheet 2147515 Sunon PF92252V1-1000U-A99 Axial fan 24 V DC 127.5 m³/h (L x W x H) 92 x 92 x 25 mm
