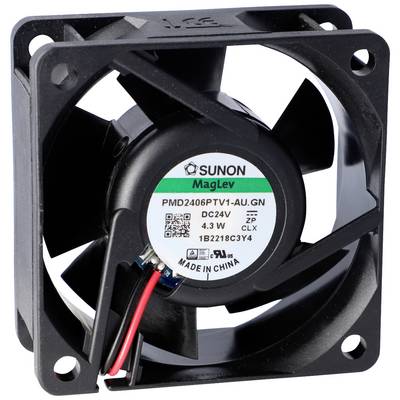

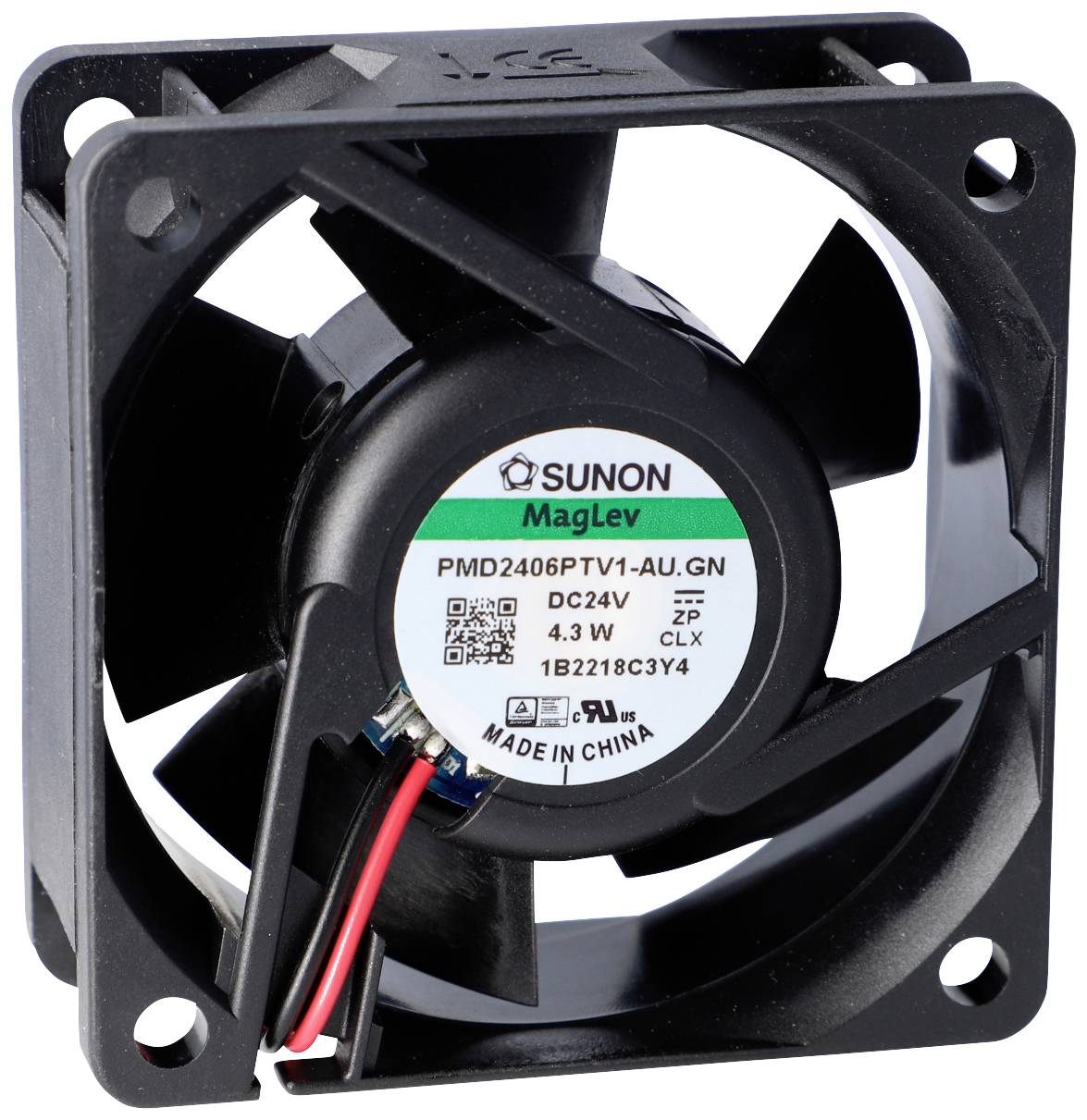

Sunon PMD2406PTV1-A.U.GN Axial fan 24 V DC 61.14 m³/h (L x W x H) 25 x 60 x 60 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
24 V DC
Power
4.3 W
Type of bearing
Vapo (magnetic)
Air flow rate
61.14 m³/h
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
6% = € 0.53
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
14-day return policy included
Technical specifications
- Connection type: Wire UL1007 AWG26, stripped, tin-plated
- Product type
Axial fan
- Type
PMD2406PTV1-A.U.GN
- Nominal voltage
24 V DC
- Min. operating voltage
10 V DC
- Max. operating voltage
27.6 V DC
- Operating voltage
10 - 27.6 V DC
- Max. current consumption
0.181 A
4.3 W
- Type of bearing
Vapo (magnetic)
- Rotational speed
6900 U/min
- Noise emission (max.)
43 dB
- Air flow rate
61.14 m³/h
- Connection
Braid
- Pressure (max.)
134.46 Pa
- Factory colour
Black
- Material
Thermoplastic
- Weight
87.74 g
- Min. temperature
-10 °C
- Max. temperature
70 °C
- Length
25 mm
- Width
60 mm
- Height
60 mm
- Dim
(L x W x H) 25 x 60 x 60 mm
Documents & Downloads
Datasheet
Datasheet 2992712 Sunon PMD2406PTV1-A.U.GN Axial fan 24 V DC 61.14 m³/h (L x W x H) 25 x 60 x 60 mm
User & Safety Instructions
User & Safety Instructions 2992712 Sunon PMD2406PTV1-A.U.GN Axial fan 24 V DC 61.14 m³/h (L x W x H) 25 x 60 x 60 mm
