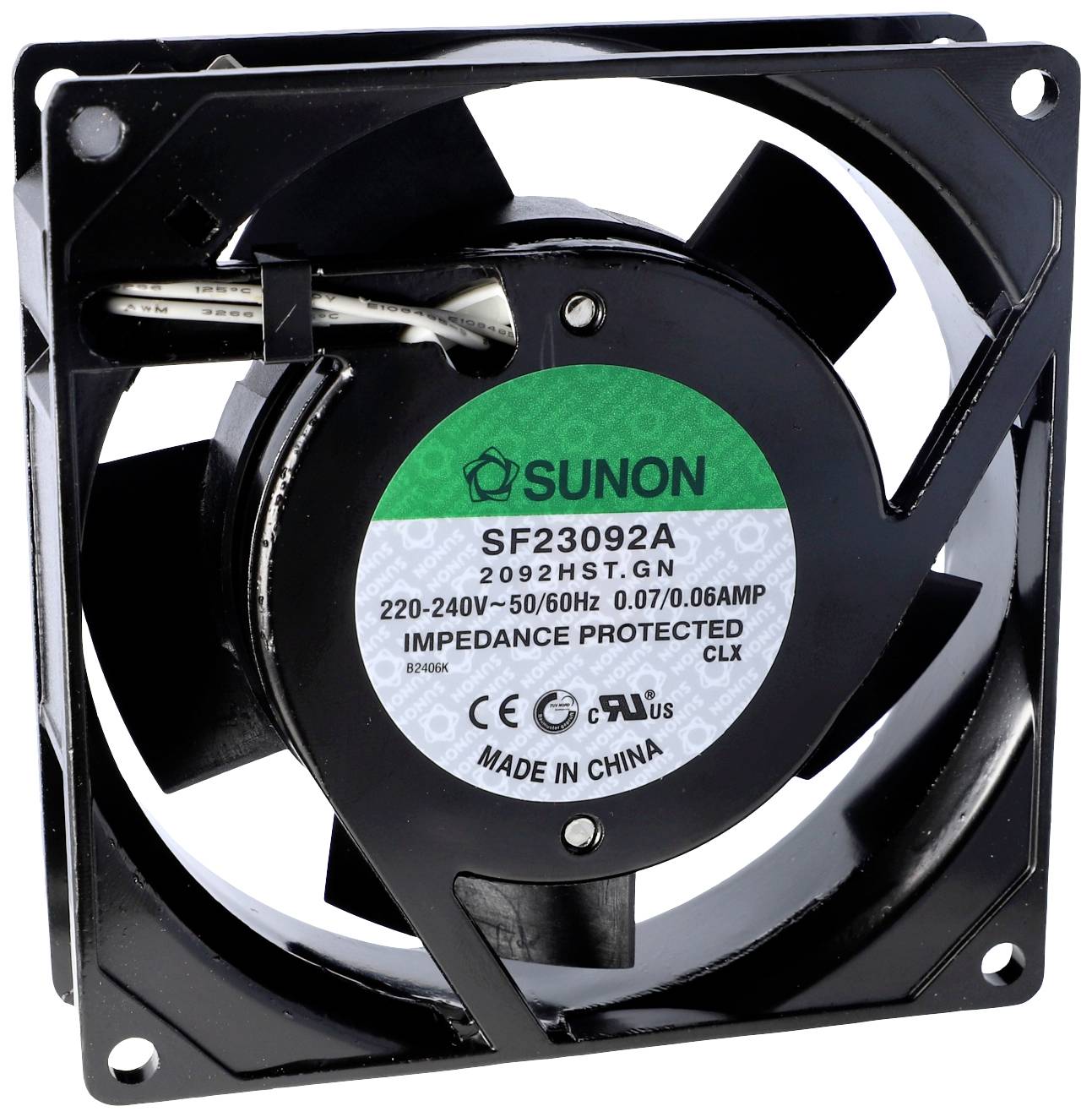

Sunon SF23092A-2092HSL.GN Axial fan 230 V AC 49.25 m³/h (L x W x H) 25 x 92 x 92 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V AC
Power
14.5 W
Type of bearing
Plain bearing
Air flow rate
49.25 m³/h
Datasheet (PDF)
Technical specifications
- Connection type: Wire AWG24, UL3266, stripped, tinned
- Product type
Axial fan
- Type
SF23092A-2092HSL.GN
- Nominal voltage
230 V AC
- Min. operating voltage
185 V AC
- Max. operating voltage
245 V AC
- Operating voltage
185 - 245 V AC
- Max. current consumption
0.07 A
14.5 W
- Type of bearing
Plain bearing
- Rotational speed
2250 U/min
- Noise emission (max.)
36 dB
- Air flow rate
49.25 m³/h
- Connection
Braid
- Pressure (max.)
29.88 Pa
- Factory colour
Black
- Material
Aluminium (die-cast)
Thermoplastic
- Weight
280 g
- Min. temperature
-10 °C
- Max. temperature
70 °C
- Length
25 mm
- Width
92 mm
- Height
92 mm
- Dim
(L x W x H) 25 x 92 x 92 mm
Documents & Downloads
Datasheet
Datasheet 2992713 Sunon SF23092A-2092HSL.GN Axial fan 230 V AC 49.25 m³/h (L x W x H) 25 x 92 x 92 mm
User & Safety Instructions
User & Safety Instructions 2992713 Sunon SF23092A-2092HSL.GN Axial fan 230 V AC 49.25 m³/h (L x W x H) 25 x 92 x 92 mm
