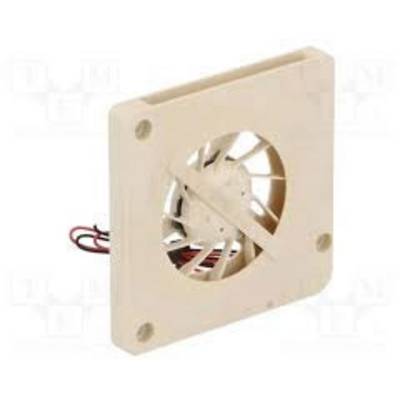

Sunon UB5U3-700 Axial fan 5 V DC 1.07 m³/h (L x W x H) 30 x 30 x 3 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
5 V DC
Power
0.36 W
Type of bearing
Vapo (magnetic)
Air flow rate
1.07 m³/h
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.80
3
5% = € 0.83
€ 15.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.80 / piece)
€ 16.80
plus VAT.
14-day return policy included
Technical specifications
- Product type
Axial fan
- Type
UB5U3-700
- Nominal voltage
5 V DC
- Min. operating voltage
2 V
- Max. operating voltage
6 V
- Operating voltage
2 - 6 V
- Max. current consumption
72 mA
0.36 W
- Type of bearing
Vapo (magnetic)
- Rotational speed
9500 U/min
- Noise emission (max.)
28.7 dB
- Air flow rate
1.07 m³/h
- Min. temperature
-10 °C
- Max. temperature
+70 °C
- Length
30 mm
- Width
30 mm
- Height
3 mm
- Dim
(L x W x H) 30 x 30 x 3 mm
Documents & Downloads
Datasheet
Datasheet 2147519 Sunon UB5U3-700 Axial fan 5 V DC 1.07 m³/h (L x W x H) 30 x 30 x 3 mm
