Sunset 56111 Erweiterung Sunstar-1 PV absorber (L x W) 323 cm x 120 cm
EAN:
Part number:
Item no:
Highlights & Details

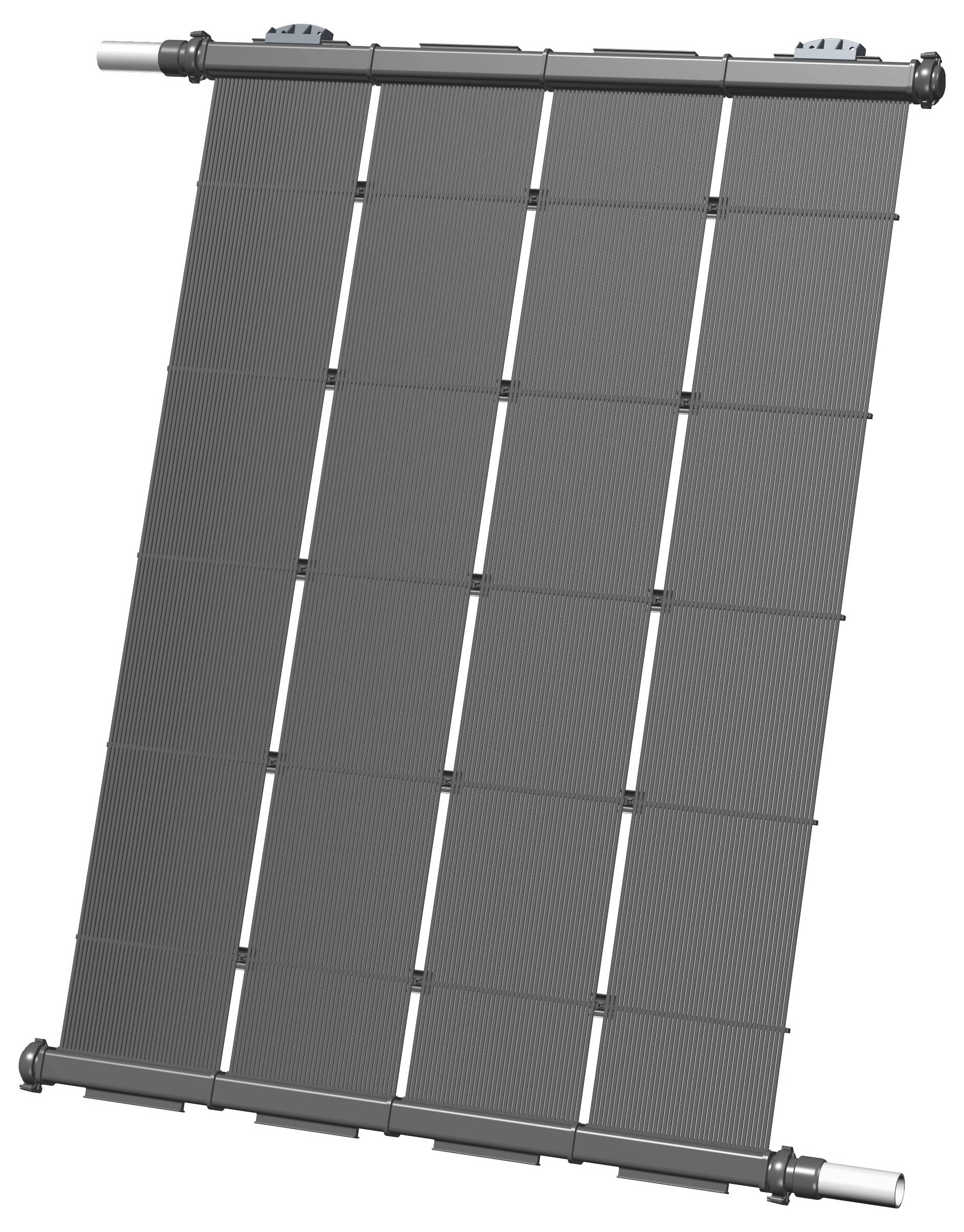

Solar pool heating Sunstar 1 add-on set
- Absorber surface total 7.70 m²
- Chemical-resistant
- Maximum Efficiency
Technical specifications
- Absorber surface total 7.70 m²
- Max. printing temperature 130C
- Frost-resistant unfilled up to -40 °C
- Product type
PV absorber
- Absorber surface
3.85 m²
- Dim
(L x W) 323 cm x 120 cm
- Recommended flow
400 l/h
- Non-stop operating pressure
6 bar
- Burst load
18 bar
- Operating temperature (max.)
90 °C
- Length
323 cm
- Connections
1¾"
- Width
120 cm
- Max. weight (empty)
8.6 kg
- PV collectors
2
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1602343 Sunset 56111 Erweiterung Sunstar-1 PV absorber (L x W) 323 cm x 120 cm
Information
Information 1602343 Sunset 56111 Erweiterung Sunstar-1 PV absorber (L x W) 323 cm x 120 cm
Description
Environmentally friendly and economical heating of swimming pools and swimming pools!
With this high-quality and effective solar kit you can make your bathing season earlier and extend. The swimming pool absorber solar system is applicable everywhere where the bathing fun them at the right temperature. No matter whether in the free or indoor swimming pool.
The system is easy to install and virtually maintenance-free. The components are made from sturdy polypropylene and thus resistant to pool chemicals such as chlorine. For simple mounting the absorber is included in the scope of a roof mounting kit included. If a roof mounting is not possible, the absorber, e.g. on a flat roof or in the garden horizontal (slight tilt necessary) to be installed.
The Solar Swimming pool system is in the nozzle pipe (pressure line) of the swimming pool. The purified pool water coming from the filter system, flows through the absorber surface and because of the solar radiation heats up. With the correct plant design your swimming pool absorber system pays itself off in 3 to 5 years under normal operating conditions, i.e. exceptionally fast, not to mention from the bathing fun.
This text is machine translated.
With this high-quality and effective solar kit you can make your bathing season earlier and extend. The swimming pool absorber solar system is applicable everywhere where the bathing fun them at the right temperature. No matter whether in the free or indoor swimming pool.
The system is easy to install and virtually maintenance-free. The components are made from sturdy polypropylene and thus resistant to pool chemicals such as chlorine. For simple mounting the absorber is included in the scope of a roof mounting kit included. If a roof mounting is not possible, the absorber, e.g. on a flat roof or in the garden horizontal (slight tilt necessary) to be installed.
The Solar Swimming pool system is in the nozzle pipe (pressure line) of the swimming pool. The purified pool water coming from the filter system, flows through the absorber surface and because of the solar radiation heats up. With the correct plant design your swimming pool absorber system pays itself off in 3 to 5 years under normal operating conditions, i.e. exceptionally fast, not to mention from the bathing fun.
This text is machine translated.

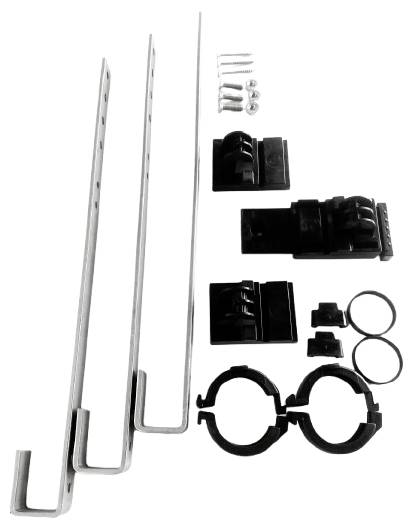

Scope of delivery
- 2 solar absorber Sunstar 1
- 3 L-hook
- 3 countersunk screws
- 3 Spax-Schrauben
- 2 Upper Fix-Montageplatten
- 1 Lower Flex Mounting Rails
- 2 clamping rings
- User manual.
