Sunset SUNpay 300 29026 Solar kit 300 Wp Cable, Inverter
EAN:
Part number:
Item no:
Total (€ 772.27 / piece)
€ 772.27
plus VAT.
14-day return policy included
Highlights & Details
Sunset SUNpay 300 Solar kit
- Reduce your electricity costsPlug & Play - Easy to install and requires little spaceHigh quality and efficiency
Technical specifications
- Module inverter: Dim. (WxHxD) 390 x 100 x 30 mm
- Weight: 800 g
- Rec. PV power 315 WP
- Max. AC output power 260 VA
- Max. DC voltage/current 50 V/9.5 A
- Nominal output voltage/current 230 V/1.25 A.
- Solar module cable length 900 mm
- Plug MC4
- Temperature range -40 to +65 °C.
- Protection class IP67
- Wieland RST®-Plug 20i3 S 3-pin
- Product type
Solar kit
300 Wp
- Solar energy system features
Cable
Inverter
- Efficiency
21 %
- Weight
21.7 kg
- Short-circuit current
9.85 A
- Open circuit voltage (OCV)
40.5 V
- Module width
997 mm
- Module height
47 mm
- Module length
1657 mm
- Nominal voltage
31.9 V
- Nominal current
9.40 A
- Type

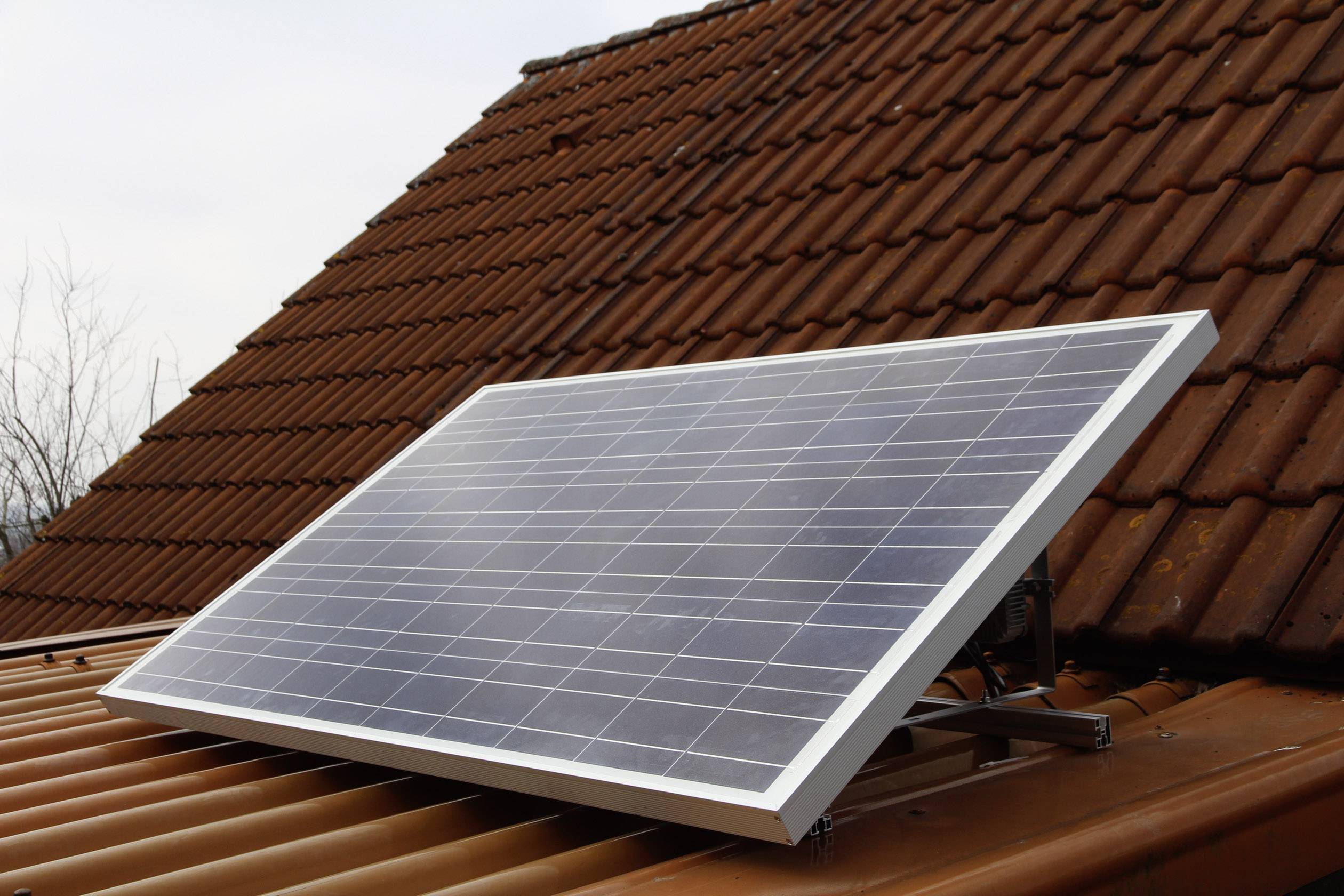

Sunpay 300 (roof)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2233329 Sunset SUNpay 300 29026 Solar kit 300 Wp Cable, Inverter
User & Safety Instructions 2233329 Sunset SUNpay 300 29026 Solar kit 300 Wp Cable, Inverter
Description
Produce and use your own ecologically generated solar power.
The universally applicable Plug & Play solar system is the simple and economical entry in the solar technology.
The generated solar power is fed into the domestic power grid by means of the inverter via the nearest socket/junction box. Thus, the electricity costs for the basic electrical load in the house are reduced and a part of the own electricity requirements in the household are saved. The solar system may be connected directly to the normal domestic power supply.
For standard-compliant connection to the domestic power supply, we recommend the optionally available accessories: Surface-mounted feed socket Order No. 1644257, flush-mounted socket Order No. 1716131 or Gridbox basic, Order No. 1644259.
The solar system for power generation is suitable for every household, whether for the homeowner or tenant.

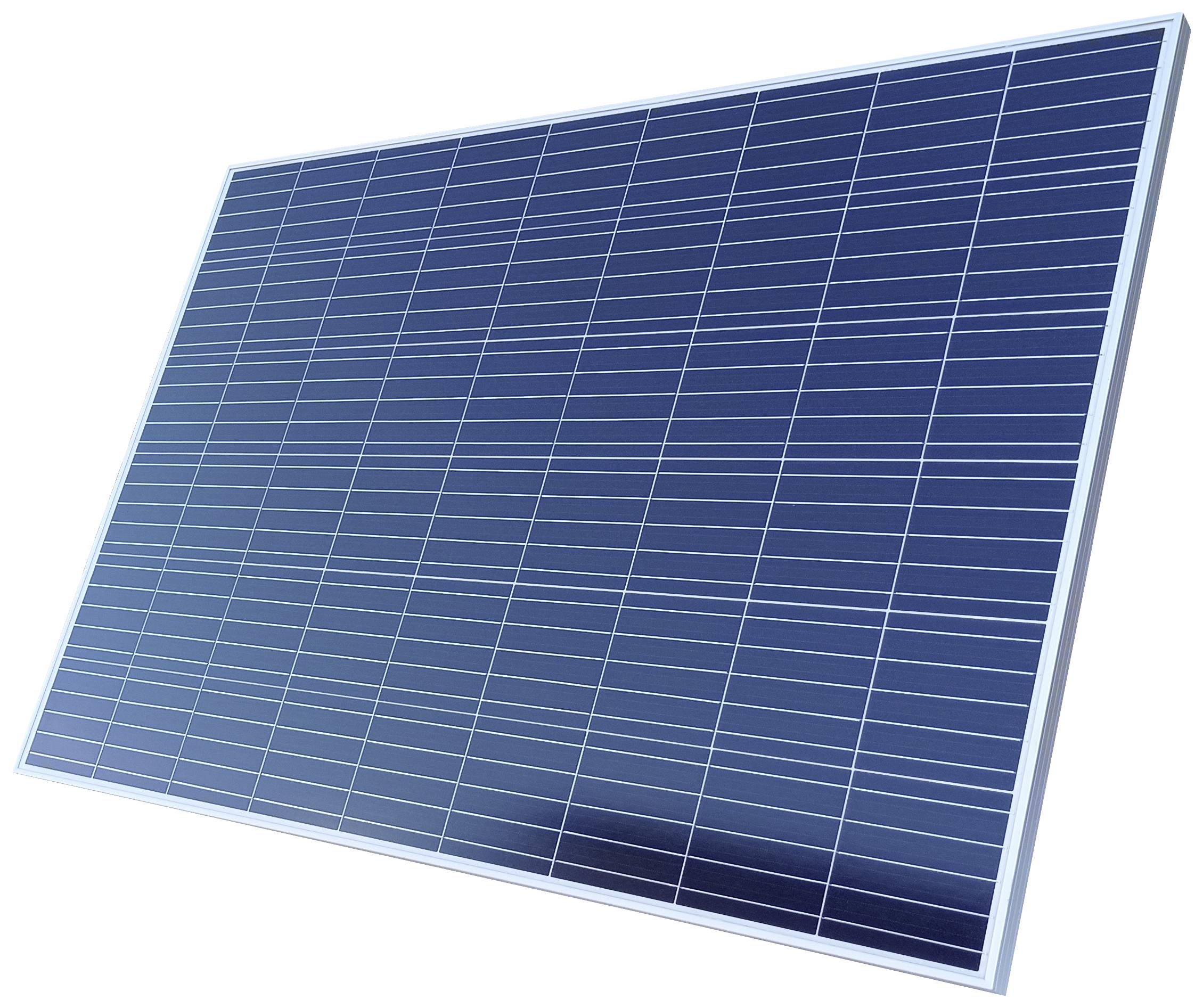

The high-quality and powerful solar module is equipped with 60 highly efficient polycrystalline silicon cells. The structured cell surface enables a high current yield. The use of special hardened solar glass, EVA plastic and an anodized aluminum frame ensure long-term use.

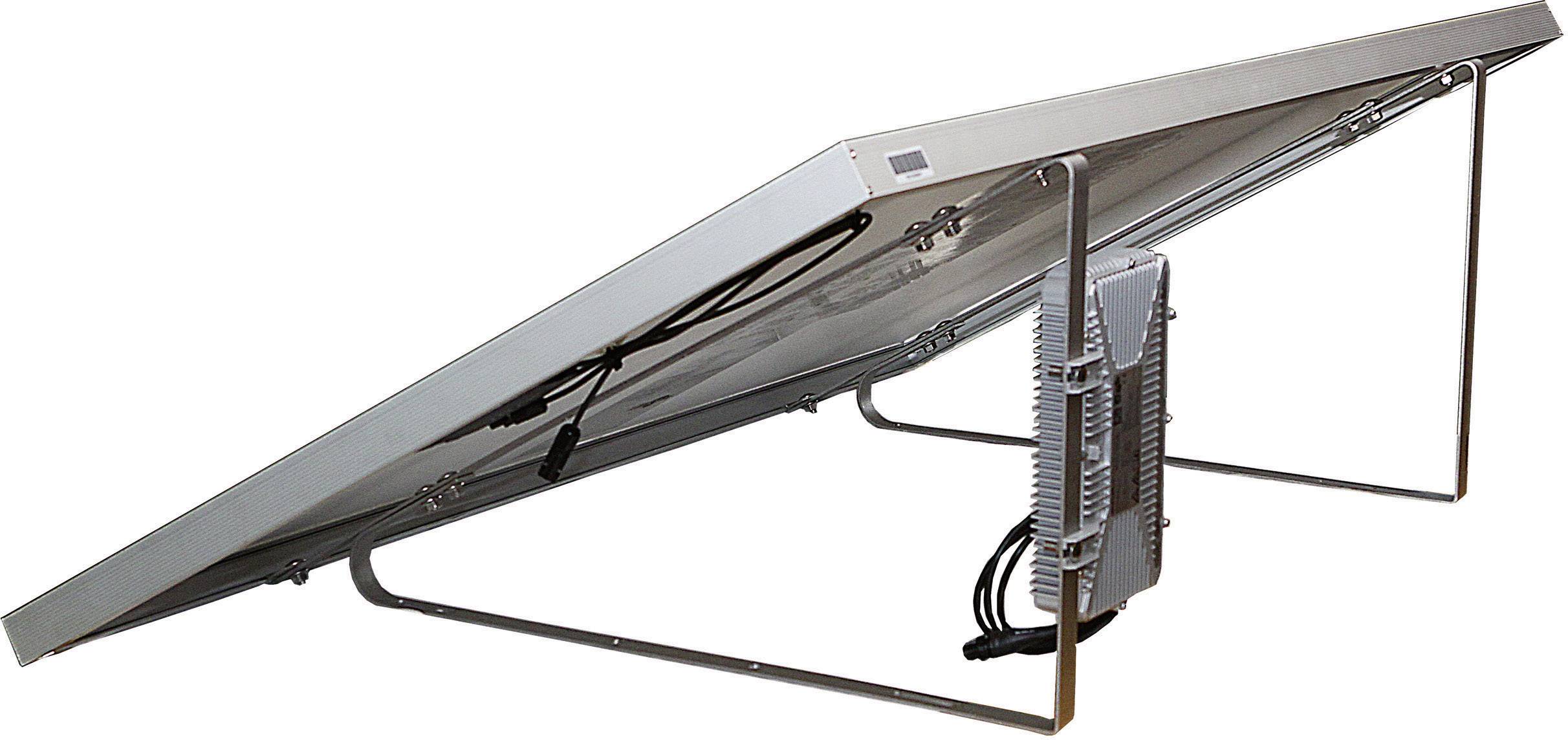

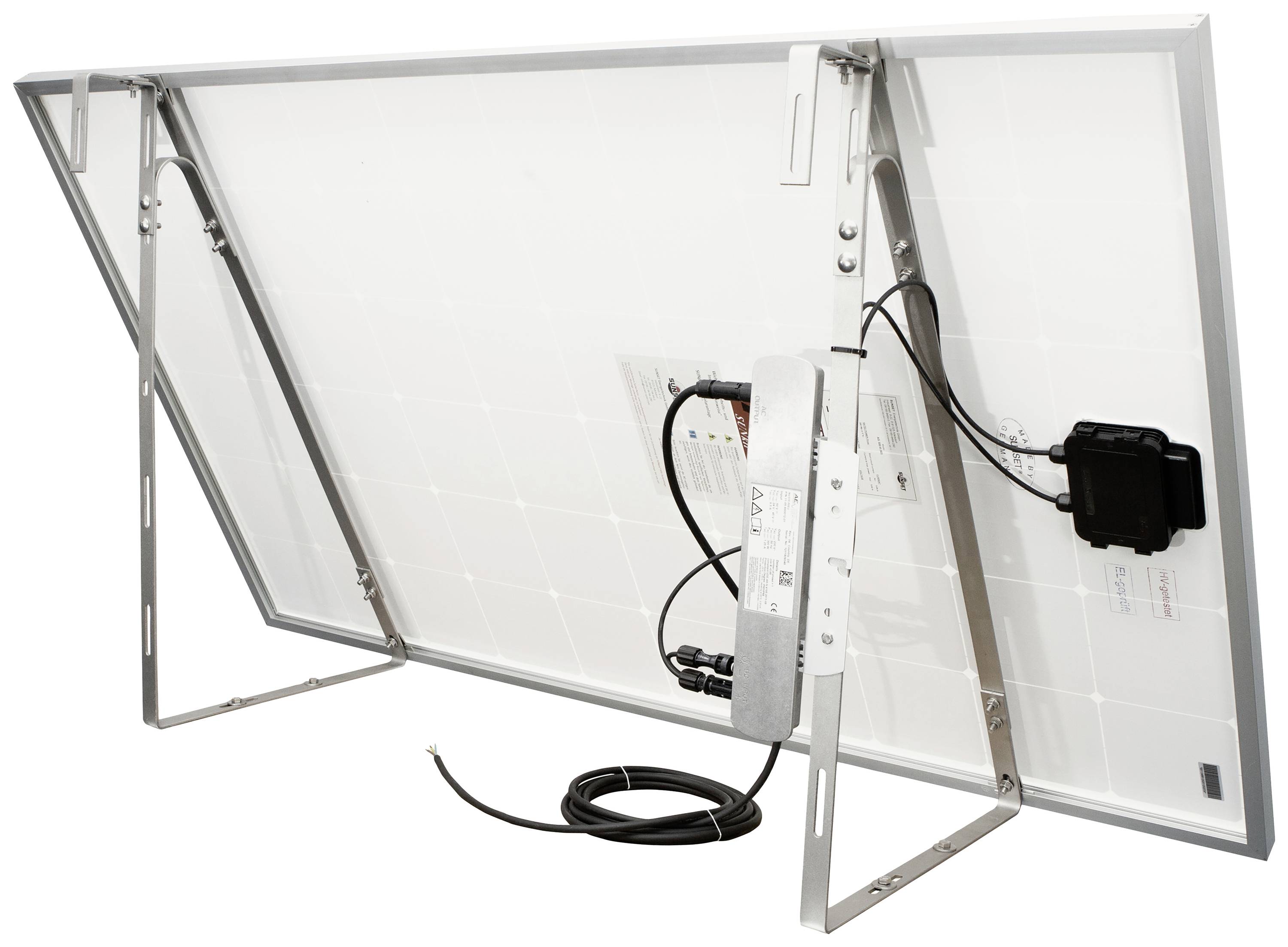

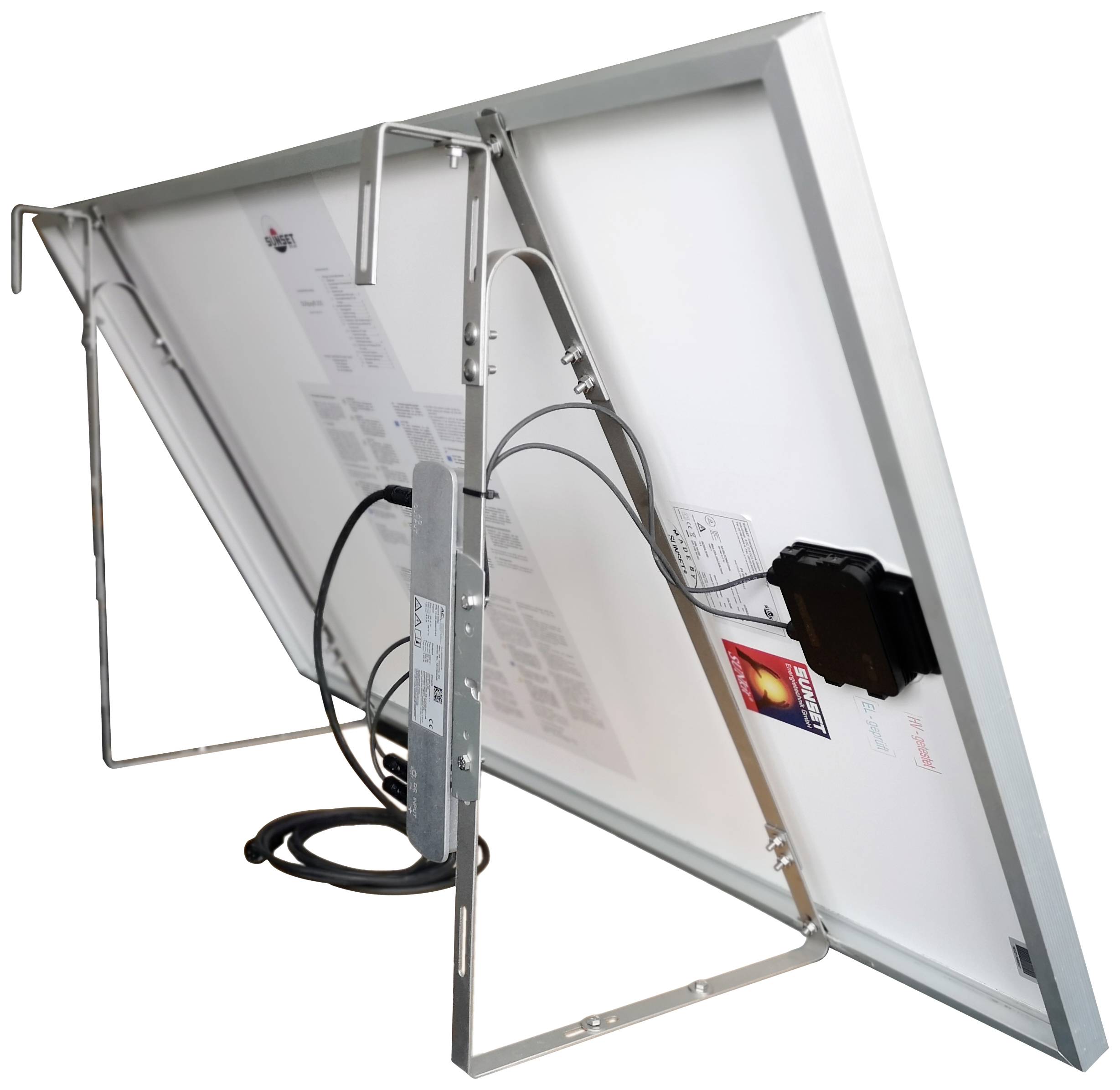

The module inverter converts the DC current obtained into line-compatible AC current. It can be mounted either on the supplied mounting bracket or in any location using the optional additional mounting cable. A legally prescribed activation device (NA protection) approved according to EN 50438, VDE-ARN 4105, IP 67 is already integrated in the inverter. This guarantees that the inverter will always disconnect itself from the mains in the event of a power failure or power cut-off.
This text is machine translated.
The universally applicable Plug & Play solar system is the simple and economical entry in the solar technology.
The generated solar power is fed into the domestic power grid by means of the inverter via the nearest socket/junction box. Thus, the electricity costs for the basic electrical load in the house are reduced and a part of the own electricity requirements in the household are saved. The solar system may be connected directly to the normal domestic power supply.
For standard-compliant connection to the domestic power supply, we recommend the optionally available accessories: Surface-mounted feed socket Order No. 1644257, flush-mounted socket Order No. 1716131 or Gridbox basic, Order No. 1644259.
The solar system for power generation is suitable for every household, whether for the homeowner or tenant.
The high-quality and powerful solar module is equipped with 60 highly efficient polycrystalline silicon cells. The structured cell surface enables a high current yield. The use of special hardened solar glass, EVA plastic and an anodized aluminum frame ensure long-term use.
The module inverter converts the DC current obtained into line-compatible AC current. It can be mounted either on the supplied mounting bracket or in any location using the optional additional mounting cable. A legally prescribed activation device (NA protection) approved according to EN 50438, VDE-ARN 4105, IP 67 is already integrated in the inverter. This guarantees that the inverter will always disconnect itself from the mains in the event of a power failure or power cut-off.
This text is machine translated.
Features
- High power output
- Extensible at any time!
- 60 highly efficient polycrystalline silicon solar cells
- Torsion-resistant module frame made of anodized aluminum profile
- Robust and durable
- Approval EN 50438 and VDE-ARN 4105
- Simple installation and small space requirements
- UV stability
- Structured cell surface
- Hardened solar glass
- Weatherproof junction box
- Inverter with enabling device (NA protection)
- Stainless steel holder can be used universally
- With Wieland RST®-plug 20i3 S 3-pin
Scope of delivery
- Solar module AS 300/60
- Inverter SUNpay315
- 5 m ready-to-install cable for AC mounting
- Universal stainless steel holder
- AC plug
- User manual
Hints
The solar system may be connected directly to the normal domestic power supply within Germany, Austria, Switzerland, Portugal, the Netherlands. Provided there is a circuit breaker, a maximum of 2.6 A / 600 WP per household in Germany, Austria, Switzerland, a maximum of 2.25 A / 500 WP in the Netherlands and a maximum of 200 WP in Portugal can be connected to the domestic network.
For installation in other countries, please observe the applicable law and ask your energy supplier.
The solar system only works for feeding into the existing power grid.
