SunWare 13810002 FOX-D1 Display
EAN:
Part number:
Item no:
Highlights & Details

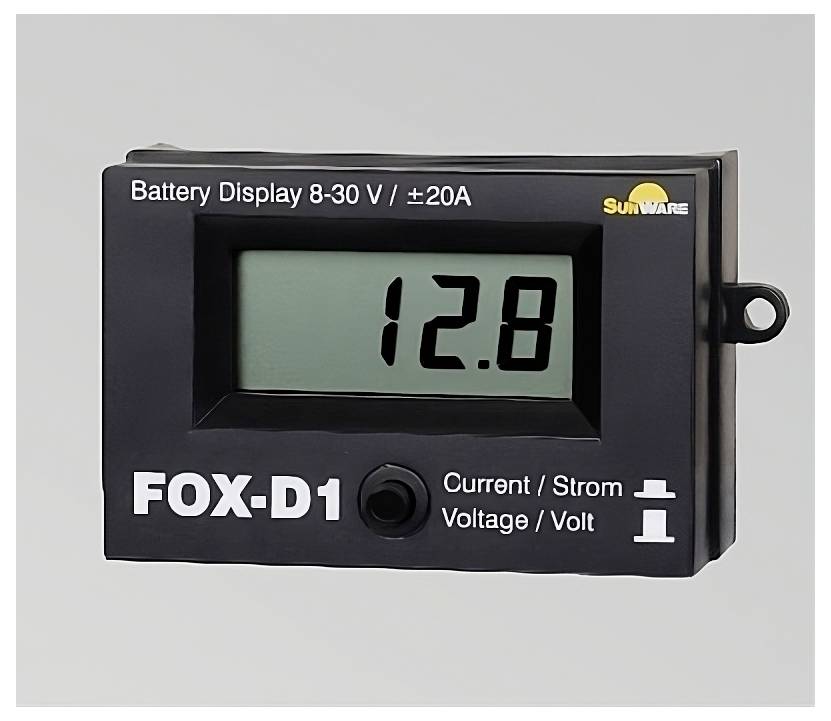

Display SunWare FOX-D1
- For 12/24 V battery systems
Technical specifications
- Hole spacing: 91 mm
- Current range +/- 20 A.
- Voltage range 8 V - 48 V
- System voltage 12 V and 24 V
- Max. Voltage at terminals 50 V.
- Fuse 0.5 A, micro fuse 5 x 20 mm, quick-blow
- Internal power consumption 1.8 mA (at 12V)
- Ambient conditions: 20 to + 60 °C, non-condensing, protect from moisture
- Product type
Display
- Dim
(W x H x D) 100 x 56 x 44 mm
- Content
1 pc(s)
- Width
100 mm
- Height
56 mm
- Depth
44 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3384338 SunWare 13810002 FOX-D1 Display
Description
FOX-D1 is a universal digital display to display the current battery voltage and the charge or discharge current. With the pressure switch on the front of the FOX-D1 the display can be switched between voltage and current display. Due to the very low power consumption of the display, the device itself can always be left on.
