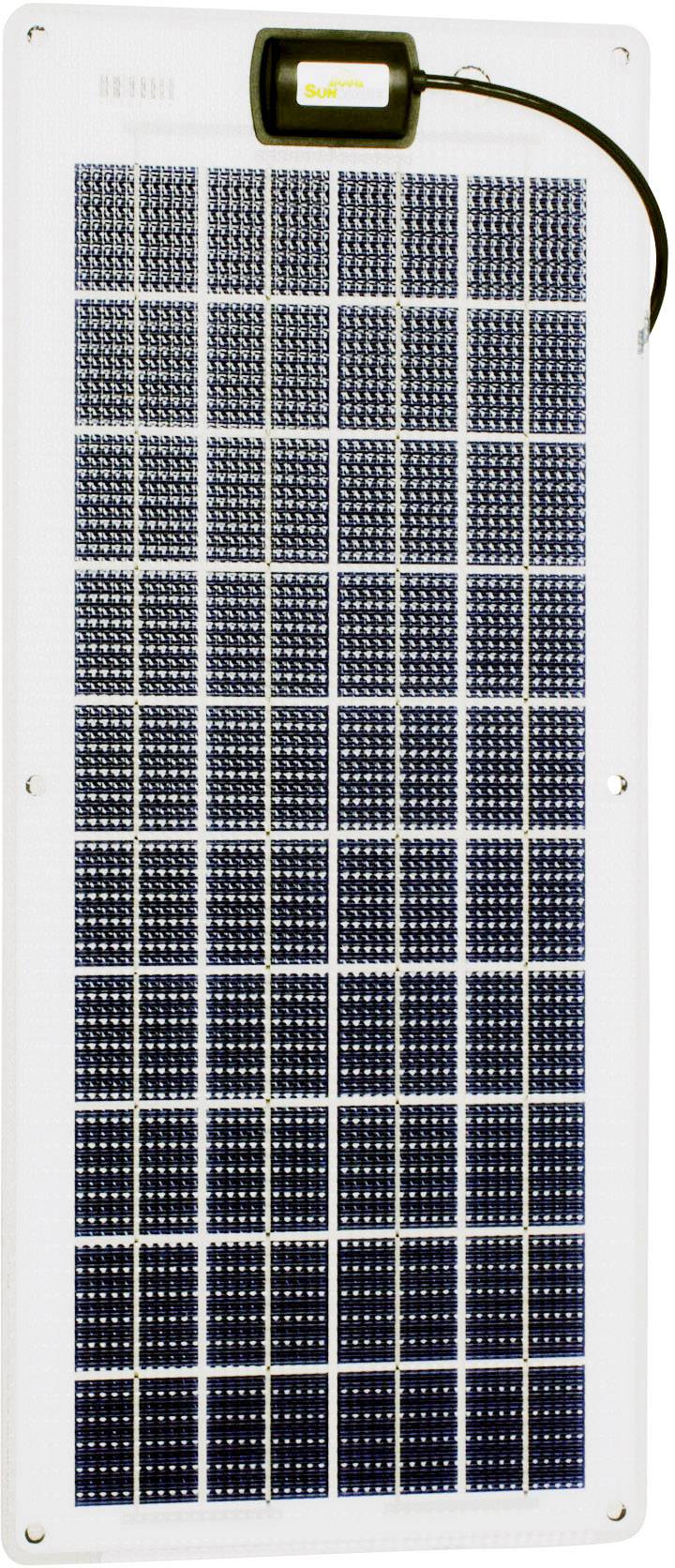

SunWare 20144 Polycrystalline solar panel 20 Wp 12 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

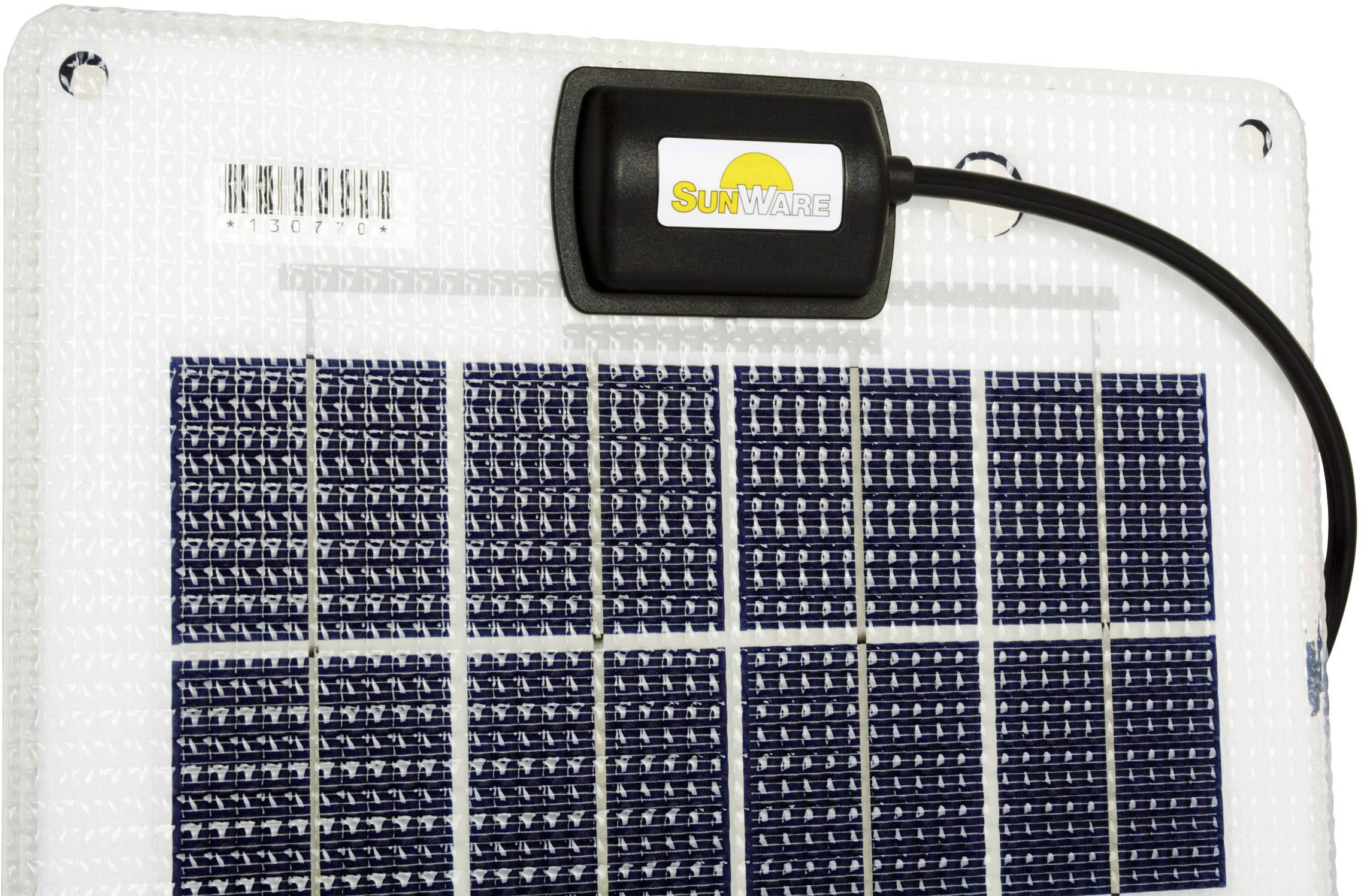

SunWare solar module 20144
- Maintenance-free, self-cleaning module surface
- Lake & salt water resistant
- Accessible with a fixed base
- Modules up to 3% curvature enabled
Technical specifications
- Cell format 52 x 52 mm
- Cable: 3 x 1.5 mm²
- Holes Ø 9 mm, 6 x
- Temperature range -40 to +85 °C.
- Resistant to sea and salt water
- Product type
Polycrystalline solar panel
20 Wp
- Nominal voltage
12 V
- Dim
(L x W) 273 mm x 643 mm
- Connector
Cable
- Weight
1.2 kg
- Cable length
3.00 m
- Short-circuit current
960 mA
- Open circuit voltage (OCV)
25.4 V
- Nominal current
910 mA
- Width
643 mm
- Length
273 mm
Documents & Downloads
Datasheet
Datasheet 1456321 SunWare 20144 Polycrystalline solar panel 20 Wp 12 V
User & Safety Instructions
User & Safety Instructions 1456321 SunWare 20144 Polycrystalline solar panel 20 Wp 12 V
Description
This powerful SunWare module impresses with light, compact design and front connection socket. The high-performance solar cell is equipped with an EVA laminate and several etfe cover layers against the effects of weather-proof. The carrier material is a Alu-Sandwichkern The extremely robust and allows the thermal expansion of the module.
Even in the diffuse light or even in winter the module produces a high charging current. The module is extremely flat, semi-flexible and has no sharp edges. In addition to the use on sailing yachts and motor boats, this module due to its flat, flexible version is also ideally suited for car or truck-roofs.
The module can be screwed, glued or with clips can be attached. The delivery also includes white Screw Rosettes for the safe and secure mounting with countersunk head screws. The screw rosettes prevent while screwing the module and the injury of the laminate through the screw head.
This text is machine translated.
Even in the diffuse light or even in winter the module produces a high charging current. The module is extremely flat, semi-flexible and has no sharp edges. In addition to the use on sailing yachts and motor boats, this module due to its flat, flexible version is also ideally suited for car or truck-roofs.
The module can be screwed, glued or with clips can be attached. The delivery also includes white Screw Rosettes for the safe and secure mounting with countersunk head screws. The screw rosettes prevent while screwing the module and the injury of the laminate through the screw head.
This text is machine translated.
Features
- 100% lake & salt water resistant
- Non-Glas-module with unbreakable Nowoflon-Folie
- Extra-light carrier plate
- White Powder-coated
- Screwed cable output and shed with strain-relief at the cable outlet
- Crystalline High-performance solar cells for maximum performance
- Ultra-flat module construction (5 mm), the cable output max. 16 mm
- Foil edge 5 mm via carrier plate section protruding by for maximum corrosion protection
- Rounded corners;
- Structured surface reduces risk of slipping in wet conditions
- 100% maintenance-free, self-cleaning module surface
- When installing rear ventilation is necessary
- Accessible for solid surface (with, for example, boat shoes)
- Modules up to 3% curvature (3 cm/1 m)
Scope of delivery
- Solar module
- Connection cable 3 m
- Screw rosettes
- User manual.
