SunWare FOX-062 Charge controller PWM 12 V, 24 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar charge regulator SunWare FOX-062
- Overcharge protection 6.6 A, corresponds to approx. 120 Watt solar modules at 12 V, or 240 Watt at 24 V
- Active reverse current protection
- 98% charging efficiency
- System voltage 12 V or 24 V (automatic)
- 3-color LED for battery status indication
- Battery type adjustable on AGM, gel, lead-acid and LiFePO4 batteries
- Car plug with integrated fuse (8 A)
- Plug ready, can be used without tools
- Incl. 1 m cable 2 x 1.5 mm2 with suseal plug
Technical specifications
- Protection class: IP50
- Overload protection: Max. 6.6 A.
- Own current draw 3.9 mA
- Min. 8.6 V
- Max. (Uoc) 50 V
- PWM frequency 244 Hz
- Fuse 8 A
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Temperature range
-25 °C to +45 °C
- Matching rechargeable battery
Lead-acid
LiFePO4
- Control type
PWM
- Weight
75 g
- Required supply
3.9 mA
Documents & Downloads
Datasheet
Datasheet 3384310 SunWare FOX-062 Charge controller PWM 12 V, 24 V
User & Safety Instructions
User & Safety Instructions 3384310 SunWare FOX-062 Charge controller PWM 12 V, 24 V
Description

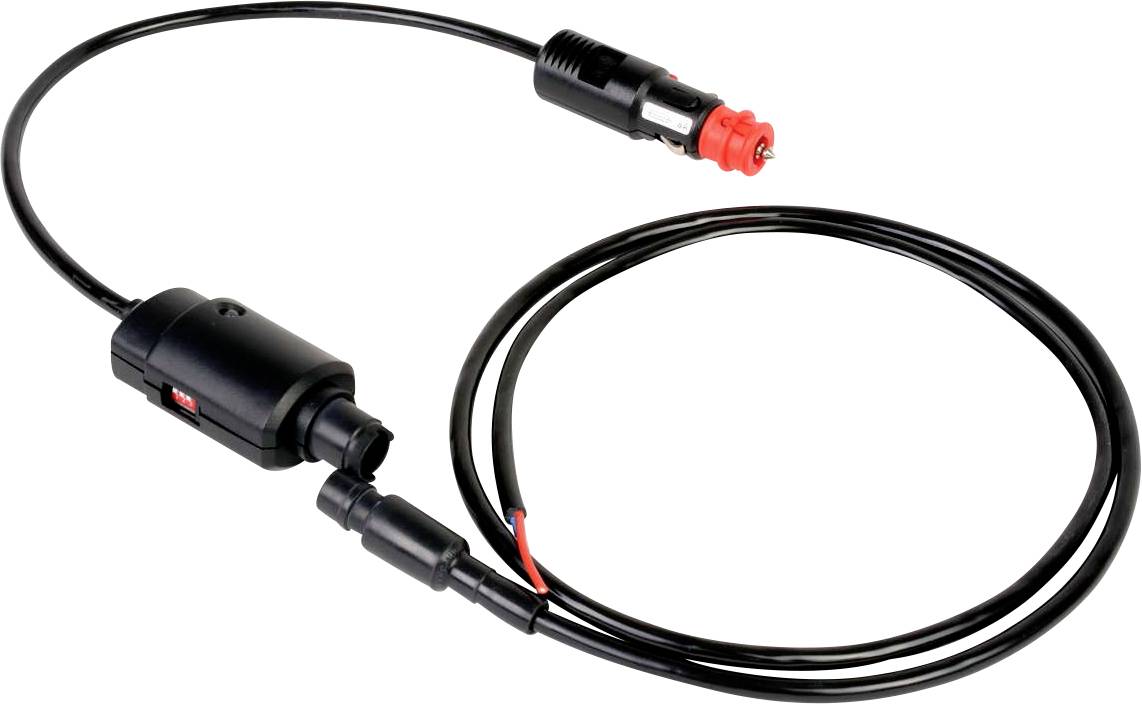

The FOX-062 is a state-of-the-art miniature charge controller for 12 V and 24 V solar systems. It offers overload protection for a solar current of 6.6 A and a built-in reverse current protection. The charging characteristic curve can be adjusted by the red DIP switch in the controller housing for AGM, gel, lead-acid and LiFePO4 batteries. Versatile information on battery and charging are shown by the LED (3 colors & blinking frequency). The regulator has a car plug with integrated fuse which can also be used in the cigarette lighter plug. Supplied with 1 meter cable (2x1.5mm2) with sureseal plug at the end. This allows each module to be connected directly to the charge controller.
