SunWare FOX 360 Charge controller PWM 12 V, 24 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

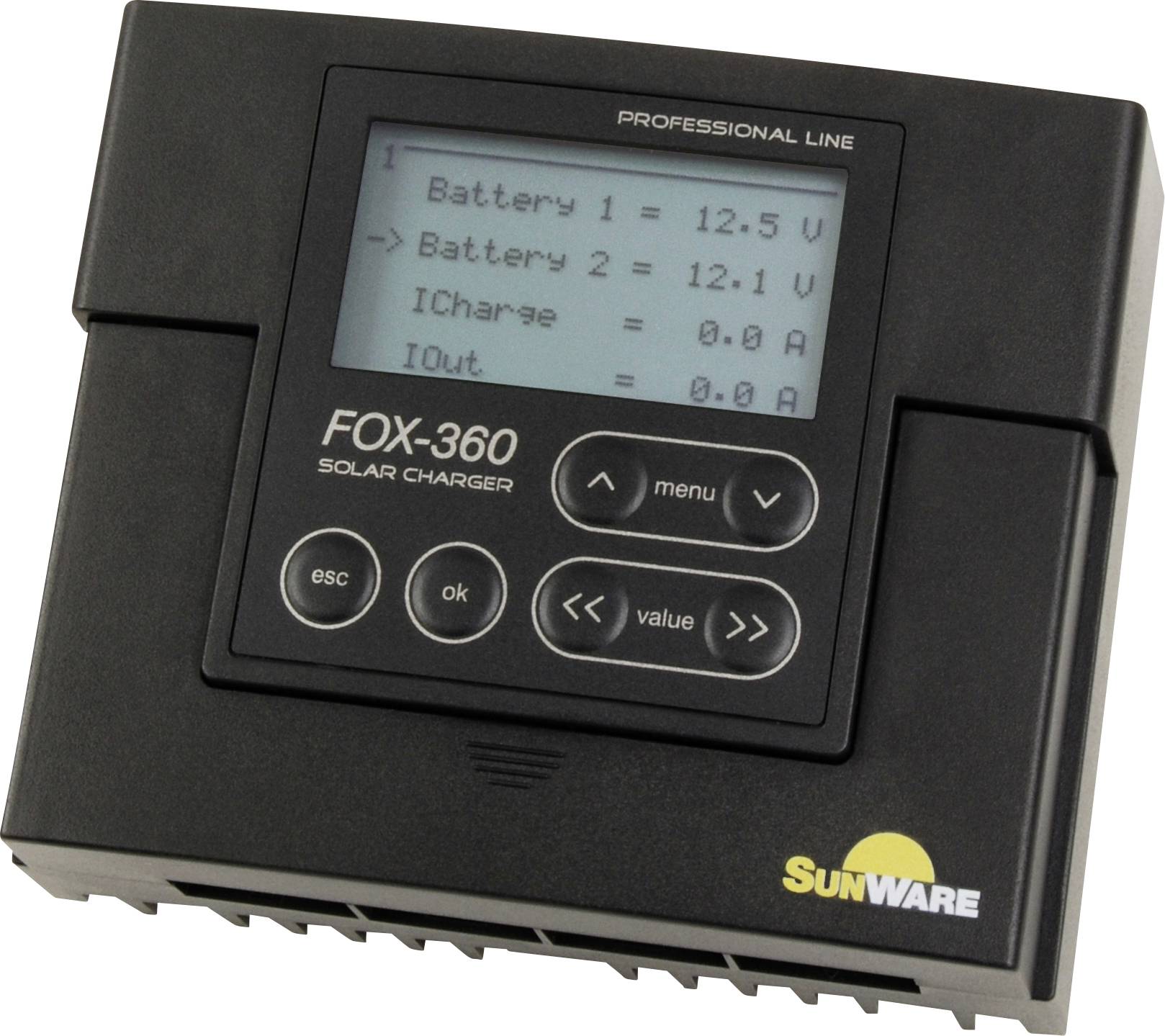

Solar charge regulator SunWare FOX-360
- Overcharge protection 20 A, corresponds to 340 watt solar modules at 12 V (680 W @ 24 V)
- Deep discharge protection or night-light function adjustable (max. 20 A), switch-off threshold can be set via menu
- FOX-360 for 2 battery systems
- System voltage 12 V or 24 V (automatic)
- Battery type separately adjustable on AGM, gel, lead-acid batteries
- Display with background lighting.
- Consumers are always supplied by battery 1
- Adjustable loading ratio B1 to B2
Technical specifications
- System Operating voltage: 8.5 V ... 35 V
- Deep discharge protection: Max. 20 A at 25 °C.
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Module power (max.)
680 W
- Temperature range
-25 °C ... +50 °C
- Matching rechargeable battery
Lead-acid
- Control type
PWM
- Dim
(L x W x H) 128.6 x 106.7 x 53.5 mm
- Weight
300 g
- Features
Nightlight
LCD
- Module load (max.)
20 A
- Width
106.7 mm
- Height
53.5 mm
- Length
128.6 mm
Documents & Downloads
Datasheet
Datasheet 3384314 SunWare FOX 360 Charge controller PWM 12 V, 24 V
User & Safety Instructions
User & Safety Instructions 3384314 SunWare FOX 360 Charge controller PWM 12 V, 24 V
Description
The charge regulator FOX-260 and FOX-360 were developed for module currents of up to 20 A. The graphic, illuminated LCD display shows up-to-date information with very easy to read text: Voltage of battery(s) [V], charging current [A], generated module current [A], power consumption [A], battery charge status as bar graph. Various input masks are available to adjust the basic settings, e.g. selection of the battery type. The optimized charging characteristic in combination with the hardware PWM control achieves a much faster and more gentle charging of the battery. Dangerous gassing or overloading are safely prevented. The size of the heat sink is also dimensioned for high ambient temperatures
This text is machine translated.
This text is machine translated.
Features
- For 2 battery systems, 12/24 V, 20 A
- Overcharge protection
- LCD display
- Night light function
