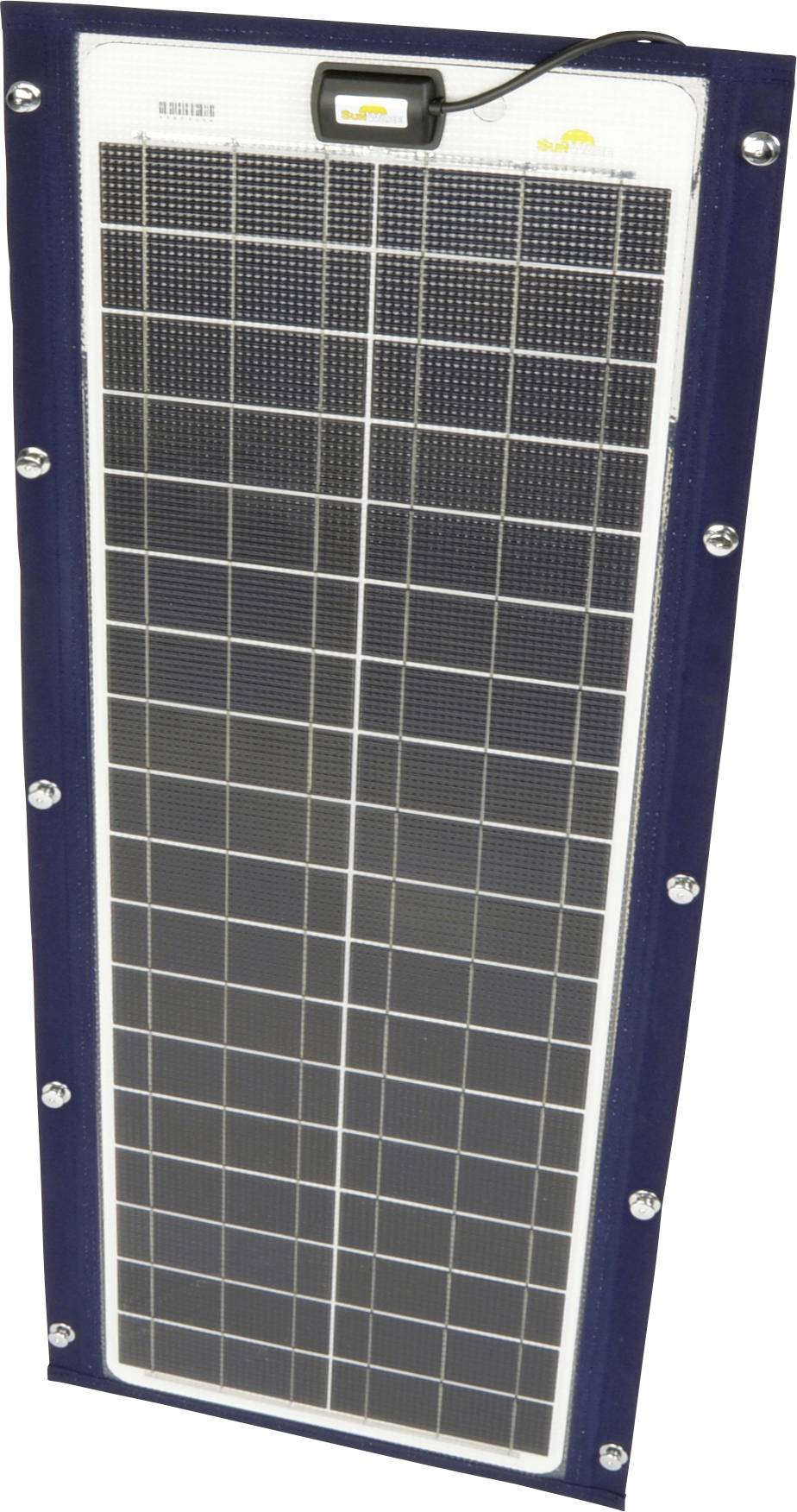

SunWare SW-12052, 60 Wp Polycrystalline solar panel 60 Wp 12 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar module SunWare TX 12052 60Wp
- All-round soft textile edge for mounting on textile surfaces/covering
- Mounted using the supplied Tenax elements
- Multi-wing modules can be folded
- With 12 V modules each blade of a TXmodule works as an independent module, in pairs with 24 V modules
Technical specifications
- Product type
Polycrystalline solar panel
60 Wp
- Nominal voltage
12 V
- Dim
(L x W) 1106 mm x 431 mm
- Connector
Cable
- Weight
2.6 kg
- Width
431 mm
- Length
1106 mm
- No. of cells
36
Documents & Downloads
Datasheet
Datasheet 3384332 SunWare SW-12052, 60 Wp Polycrystalline solar panel 60 Wp 12 V
User & Safety Instructions
User & Safety Instructions 3384332 SunWare SW-12052, 60 Wp Polycrystalline solar panel 60 Wp 12 V
Description
TX - lightweight modules with a fabric bezel made of high-quality personal fabric. Foldable, with up to
To 4 wings. For Bimini, Persenning and Sprayhood. - Made in Germany.
This text is machine translated.
To 4 wings. For Bimini, Persenning and Sprayhood. - Made in Germany.
This text is machine translated.
Features
- Solar module 60 Wp, 12 V, 36 cells, fabric panel
- Waterproof plug and coupling are enclosed, for simple electrical connection
- Including 1 m connection cable + 10 m feed line (3 m in case of TX-11027)
- 100% sea and salt water resistant
- Partially also available as 24 V version
- Multi-crystalline high power solar cells for maximum power
- Non-glass module with unbreakable Nowoflon film
- Light support plate made of aluminum sandwich, white powder-painted, completely enclosed in laminate
- Cable output screwed, cast and sea-water tight
- Ultra-flat module construction (5 mm), at cable output 15 mm
- 100% maintenance-free, self-cleaning module surface
