SunWare SW-20182, 45Wp Monocrystalline solar panel 50 Wp 12 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

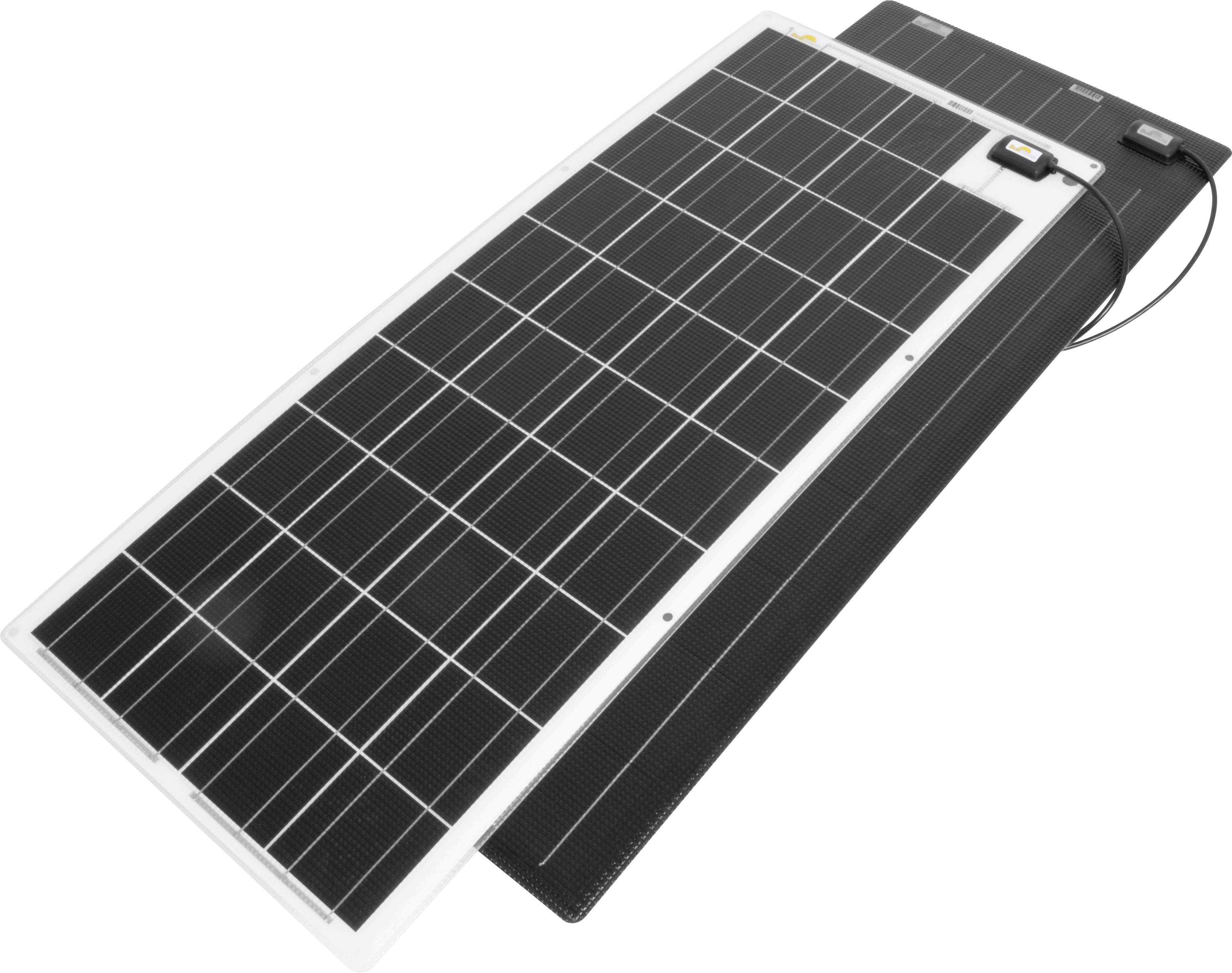

Solar module SunWare 20182 50 Wp
- 100% sea and salt water resistant
- Non-glass module with unbreakable Nowoflon film
- Mounting plate extra light made of aluminum-sandwich white powder-painted
- Cable output screwed and molded, with strain relief at the cable outlet
- Monocrystalline high-power solar cells provide maximum performance
Technical specifications
- Product type
Monocrystalline solar panel
50 Wp
- Nominal voltage
12 V
- Dim
(L x W) 469 mm x 689 mm
- Connector
Cable
- Weight
2.5 kg
- Cable length
3 m
- Width
689 mm
- Length
469 mm
- No. of cells
38
Documents & Downloads
Datasheet
Datasheet 3384315 SunWare SW-20182, 45Wp Monocrystalline solar panel 50 Wp 12 V
User & Safety Instructions
User & Safety Instructions 3384315 SunWare SW-20182, 45Wp Monocrystalline solar panel 50 Wp 12 V
Description
Solar modules with front cable connection. For boats, motor vehicles, sea signs, measuring stations, street lights... . Made in Germany.
This text is machine translated.
This text is machine translated.
Features
- 45 Wp, 12 V, 38 cells
- Ultra-flat module construction (5 mm), at cable output max. 16 mm
- 3 meter connection cable
- Film border 5 mm over support plate for maximum corrosion protection
- Rounded corners prevent injuries
- Textured surface reduces the risk of slipping in wet conditions
- 100% maintenance-free, self-cleaning module surface
- No ventilation is required when installing since modules are fitted with 39 or 40 cells
- Accessible with a fixed surface (with boat shoes)
- Modules up to 3% curvature (3 cm/1 meter).
