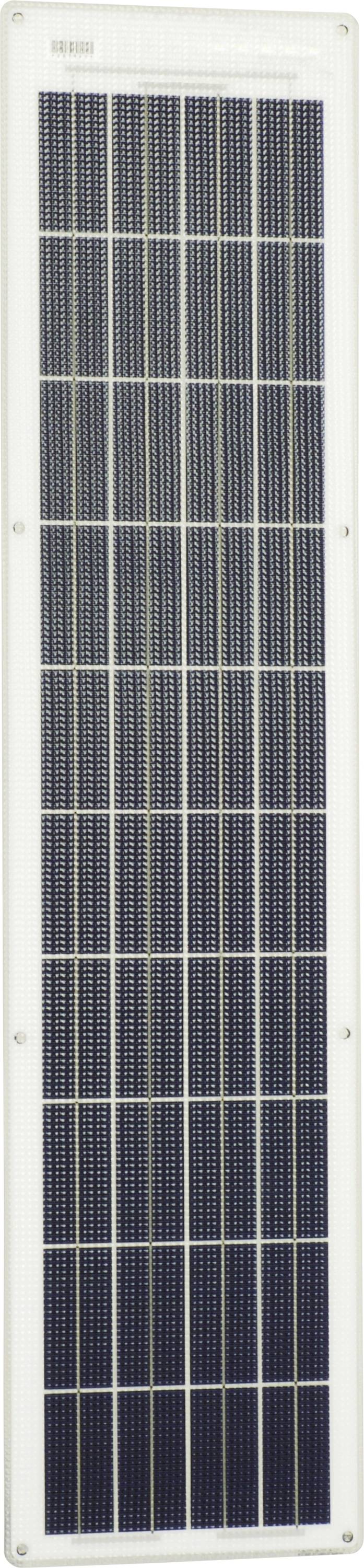

SunWare SW-40164, 42 Wp Monocrystalline solar panel 45 Wp 12 V

The solar modules of the series-40 are light, compact and extremely efficient in comparison to other solar modules. The multicrystalline high-performance solar cells are protected against weather influences in an EVA laminate and ETFE top layers. Even in diffuse light, or even in winter, the solar modules produce a high charging current. The solar modules of the series-40 have a rear cable outlet. The ground must have a recess in the place of the cable output so that the module can be mounted on a flat surface. All solar modules can be bolted, glued or fixed with clips. An aluminum sandwich core is used as the backing material. The cells are perfectly supported and protected by the core material. The solar module fits on the curved surfaces. The maximum curvature of 3 cm/meter module length must not be exceeded. The modules are specially designed for the rough use of sea and salt water The cable outlet is screwed to the carrier plate, completely cast and 100% saline water-proof. Through the hermetic encapsulation, cells and support plate are best protected against aggressive salt water.
