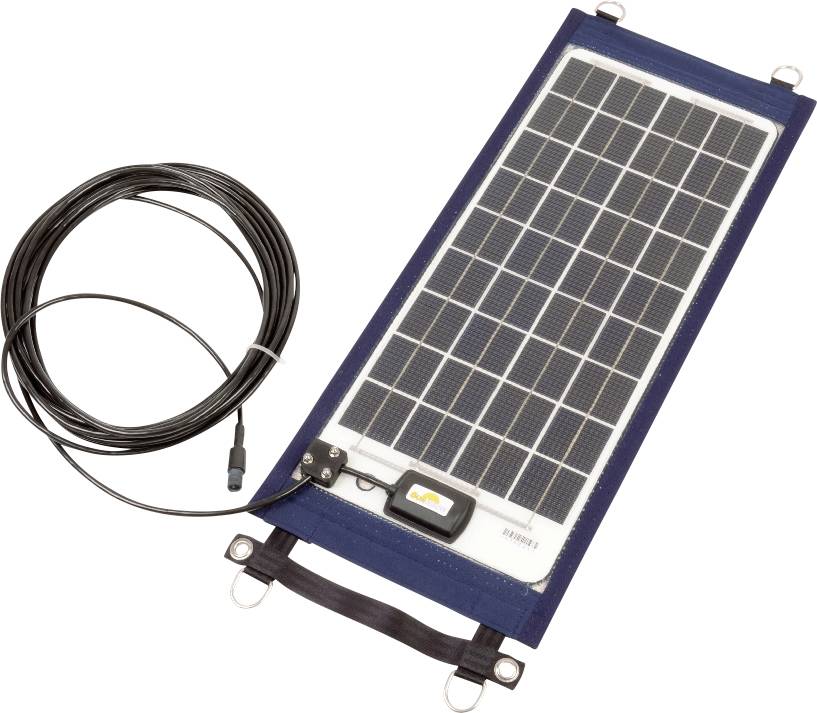

SunWare TX 14152, 20 Wp Polycrystalline solar panel 10 W 19.8 V

The solar module TX-14152 is Ideal for charging the battery in winter storage. When the mast stands still, simply sash the top D-eyelets at two traps for example, from the tail or main sail. Align southwards. Attach the lower two D-eyelets to the railing, bow or rear basket with studs, for example. Give tension to the traps - finished!
FOX-062 charge controller included in the package!
The module now floats a few meters above deck, free of shadows, steeply aligned - Ideal for the winter sun. So steep that leaves and dirt slip off the module or are washed off by the next rain.
Ideal battery charger, when the boat is not used for a long time and the batteries must be maintained, e.g. in winter storage.

To connect the electrical system, guide the end of the 10 m long supply line into the interior and insert into the supplied charge regulator FOX-062, simply plug this connector into a 12 V on-board socket and you're done! Detailed information on the FOX-062 controller.

The solar system now charges and maintains the battery during the winter. Through the much longer life span of your batteries the solar system will pay off quickly.

The TX-14152 is sufficient for a battery capacity of up to 400 Ah (12 V).

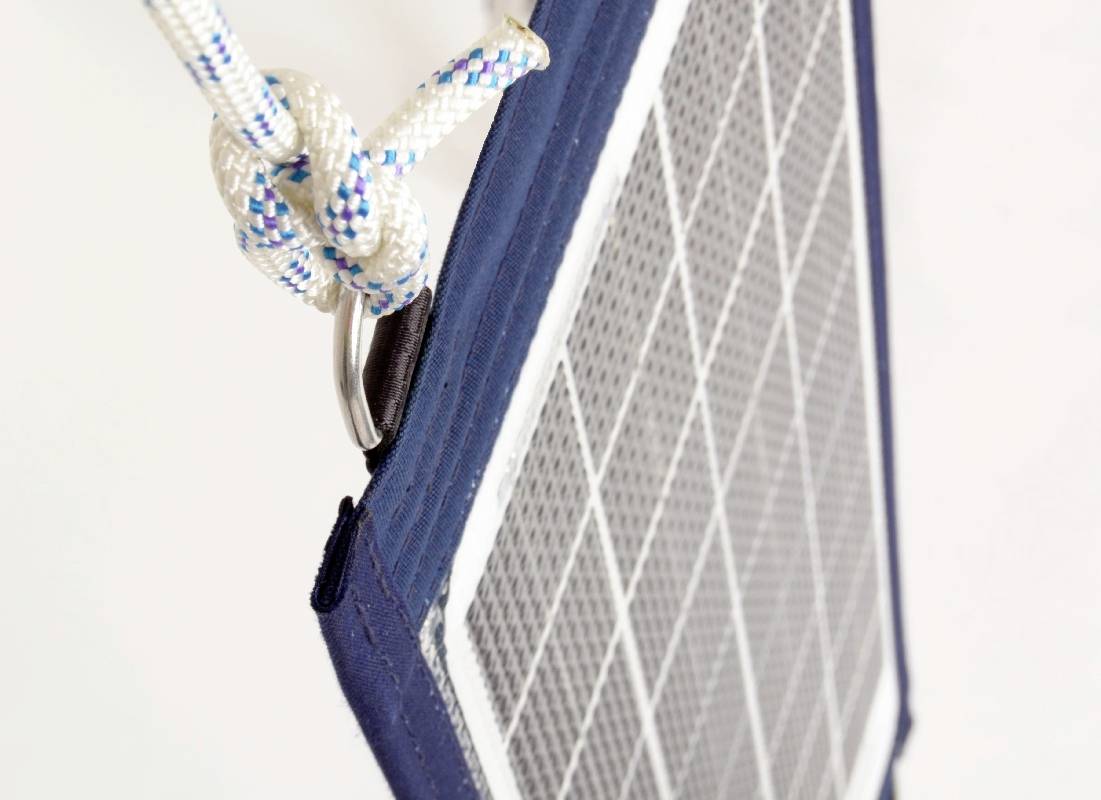

The D-eyelets are sewn to the belt-breaking load of 500 kg. The module is only sewn on the upper edge with the strap. At the lower edge, the belt belt is only guided, i.e. the forces from tension and stretching of the belt belt are not introduced into the module (similar to the fixed/unmounted storage in mechanical engineering). The connection cable is also secured by an additional strain relief.

In order to avoid strong vibrations in the wind, the module can also be clamped to the side.
