Buy Super Rod SRCAMV6.5 Inspection camera

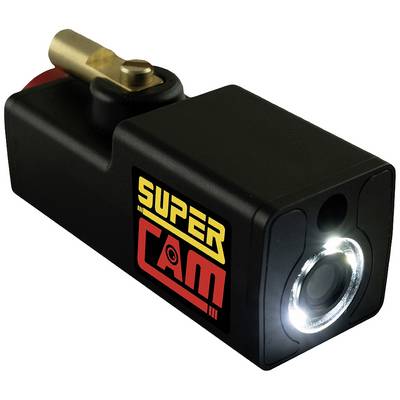

Black camera with 'SUPER CAM' printed on the side and a luminous lens, suitable for specialised filming situations.

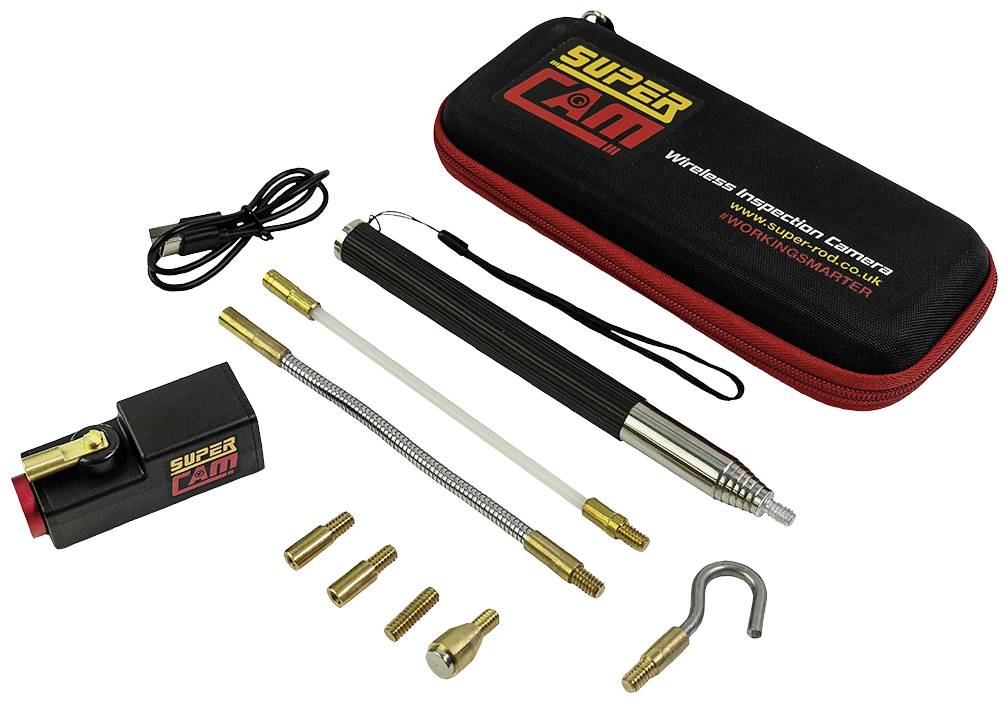

'Super Cam' Inspection Camera Set comprising camera, cables, accessories and a black storage bag.

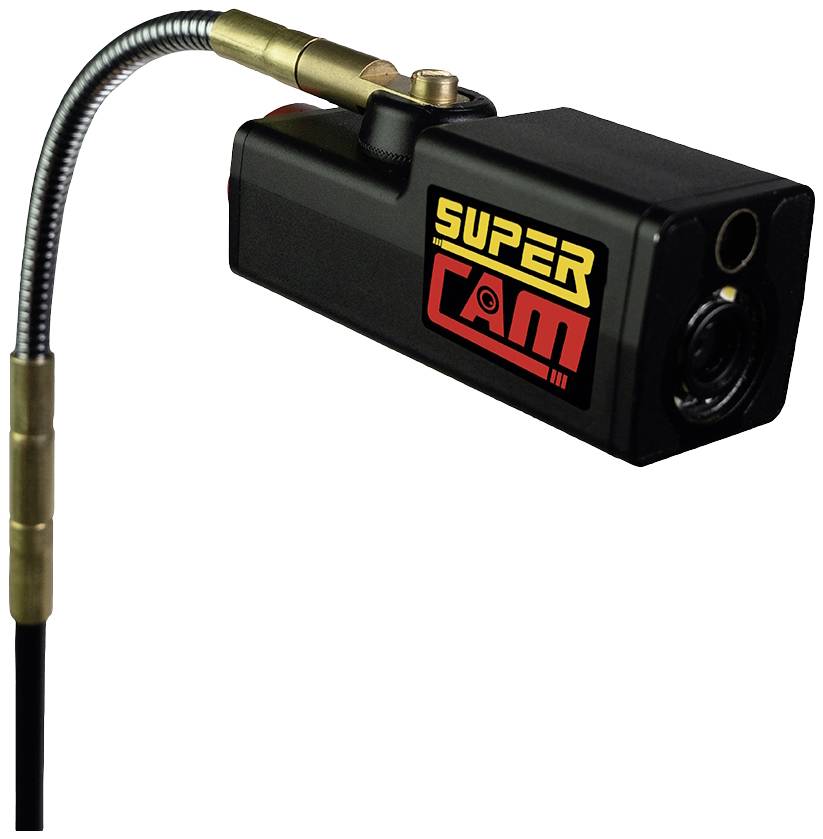

A black SuperCAM camera with a flexible cable and gold-coloured labelling, suitable for inspections and hard-to-reach areas.

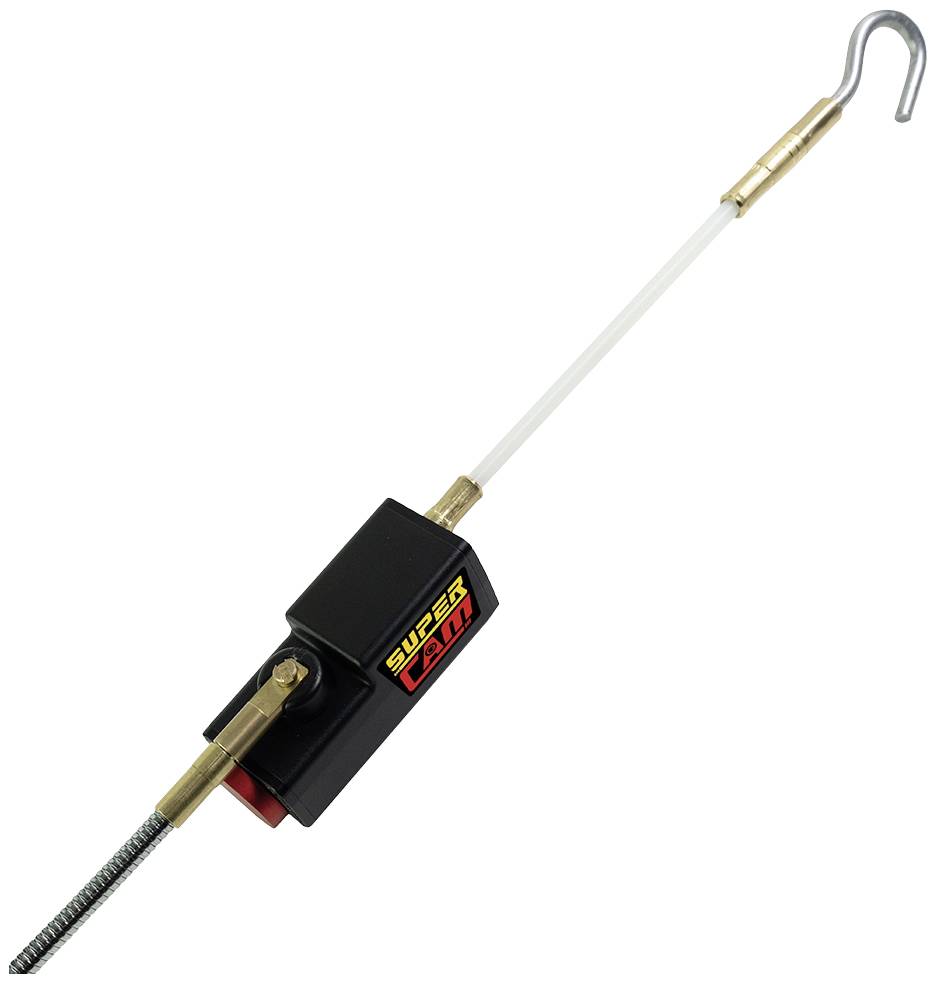

A vehicle tool with a long handle, a hook at one end and a handle with a lever mechanism at the other end.

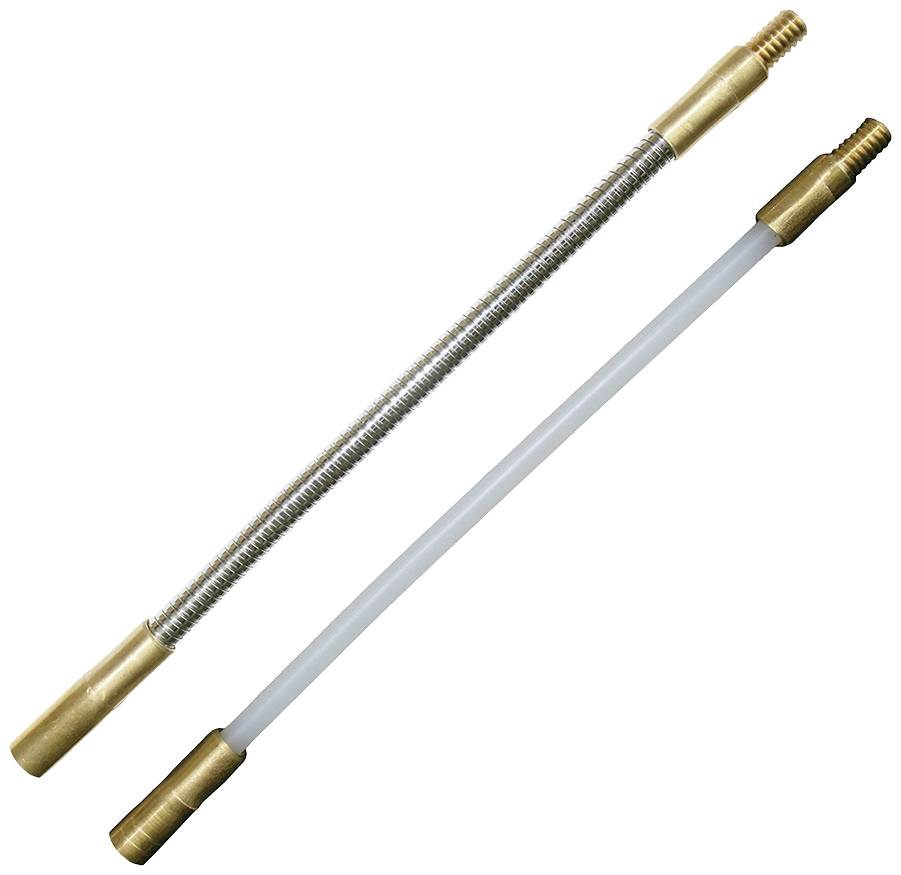

Two brass extension adapters, one with a flexible pipe and the other with a rigid pipe, both with threaded ends.

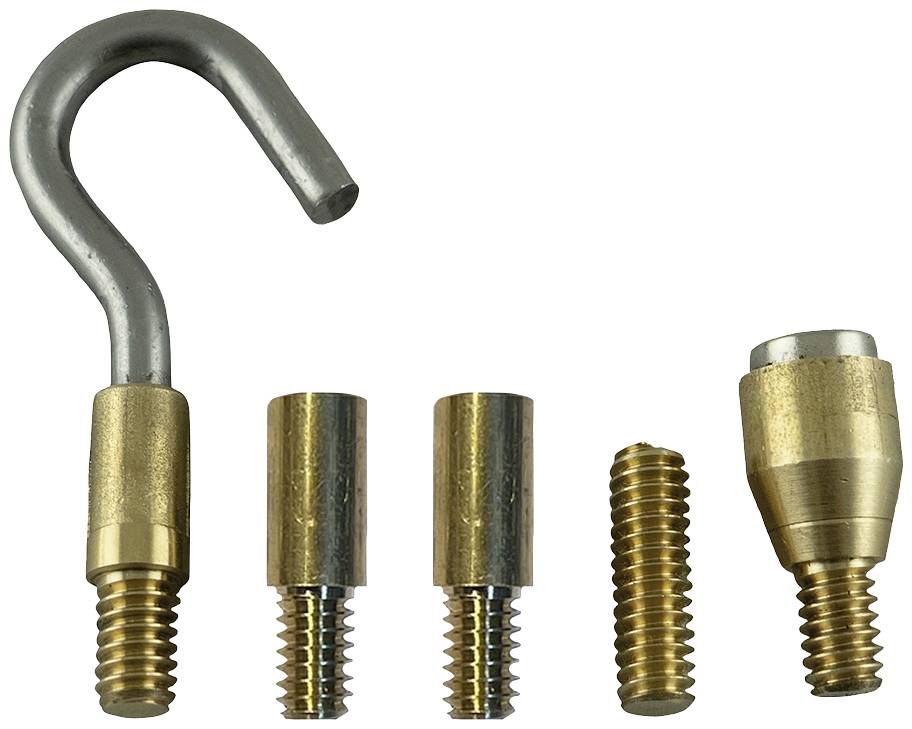

Five golden threaded components: a hook, three spacers, and a tapered end piece. Used for assembly or technical purposes.

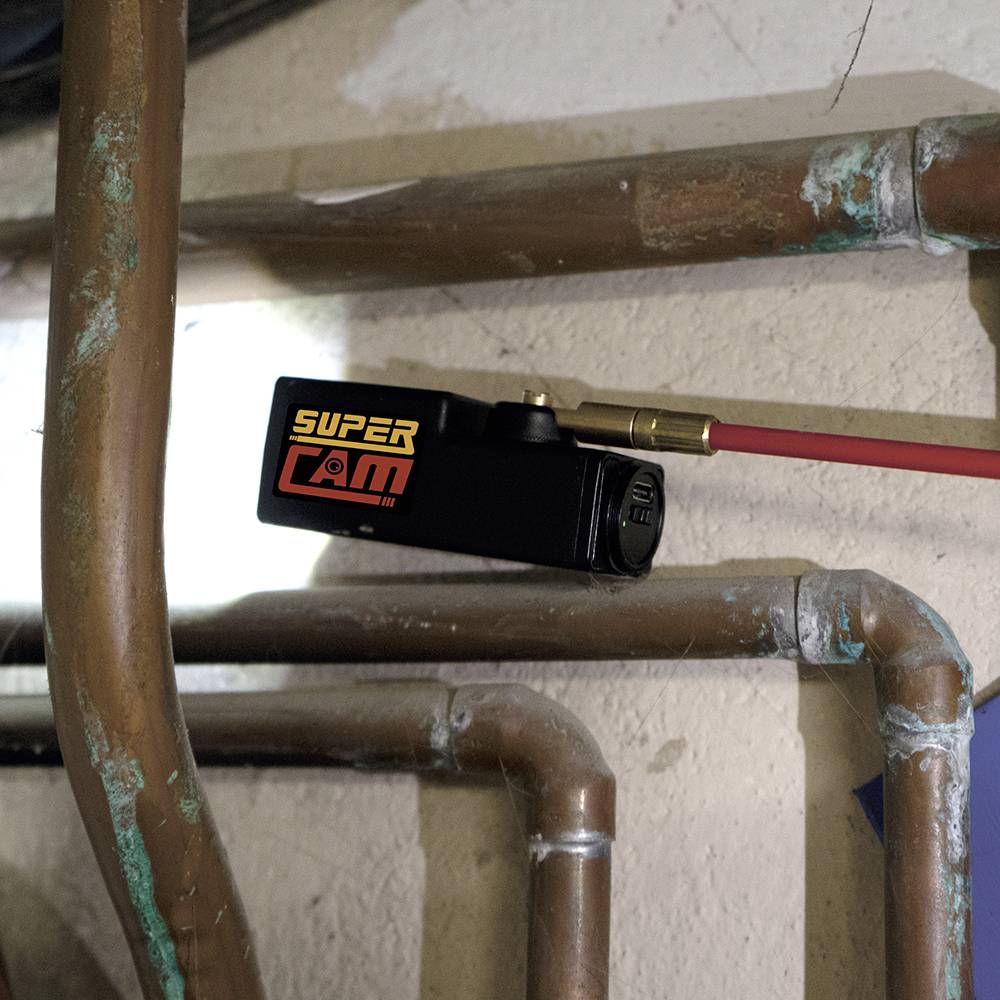

Camera with the label 'Super Cam' mounted on a red pole, surrounded by pipes in an industrial space.

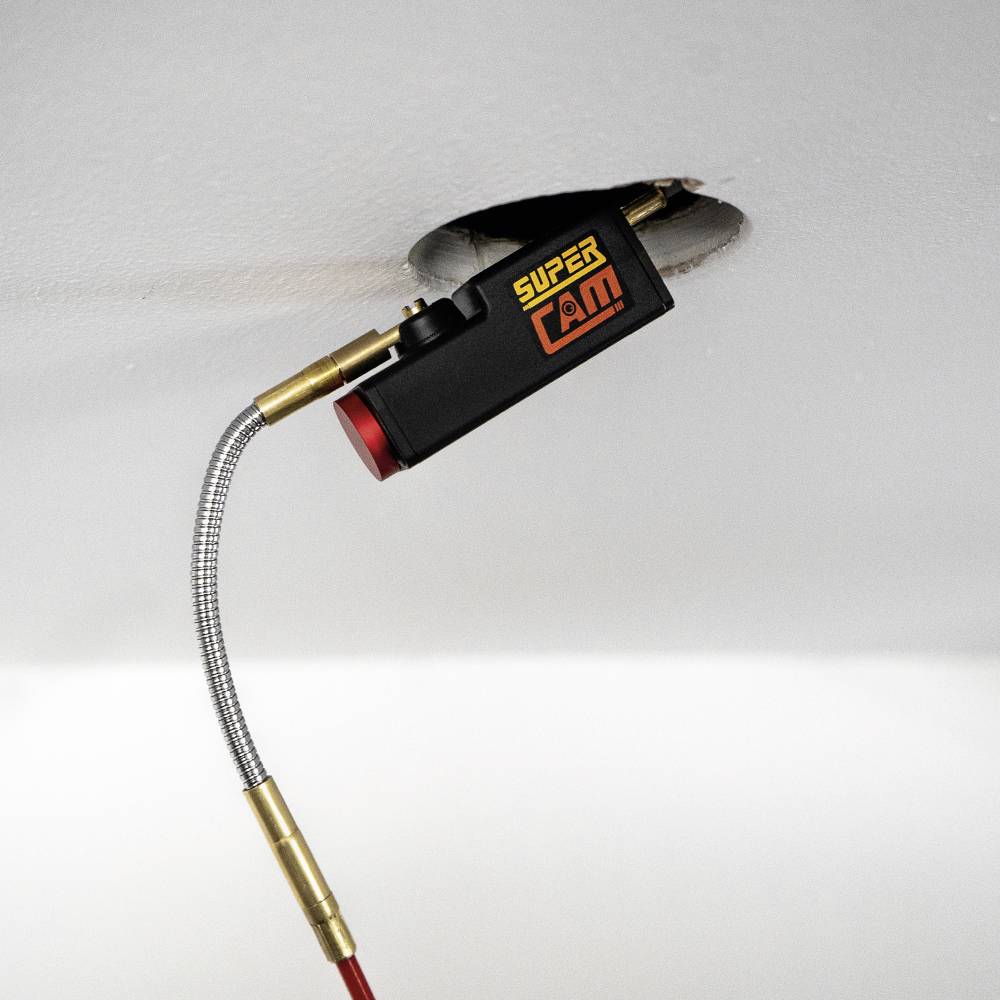

A black camera with the inscription 'SUPERCAM' protrudes through a hole in a white ceiling, secured by a flexible cable.

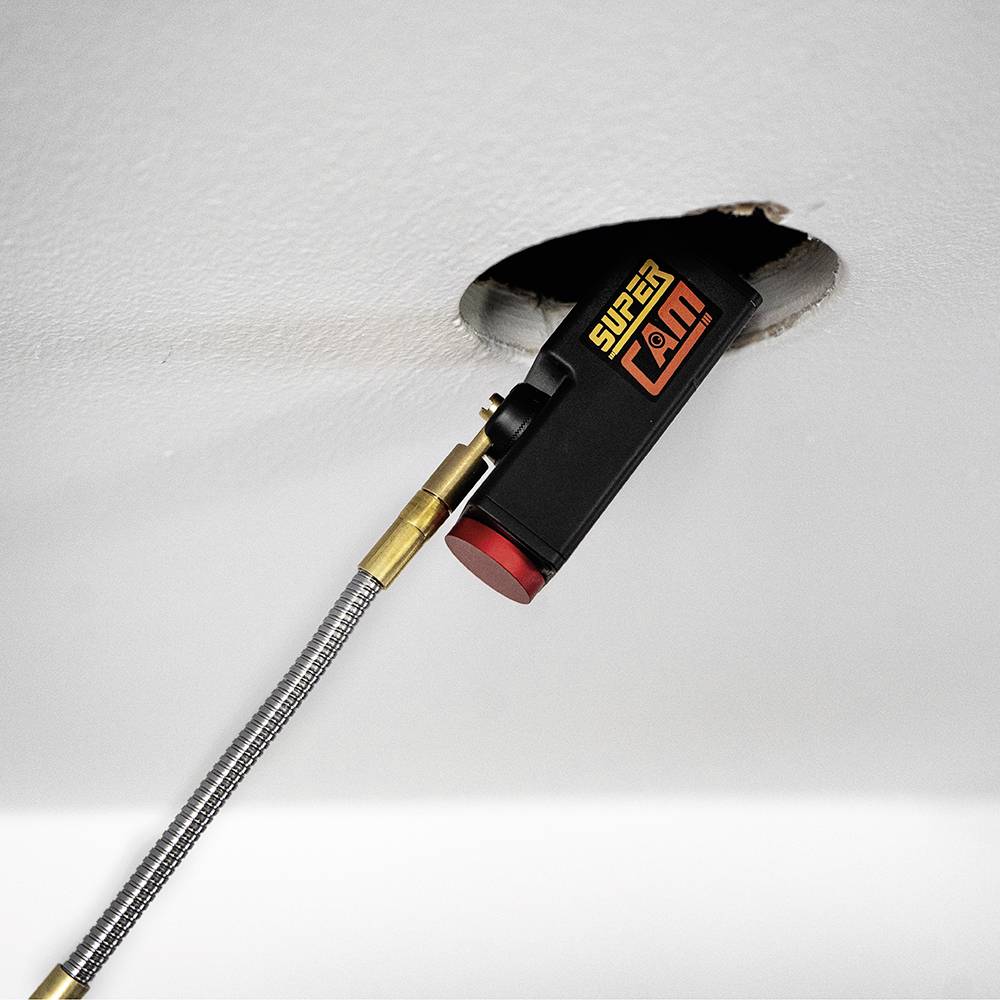

A borescope camera is inserted through a hole in the ceiling. The camera is labelled 'SupCam'.

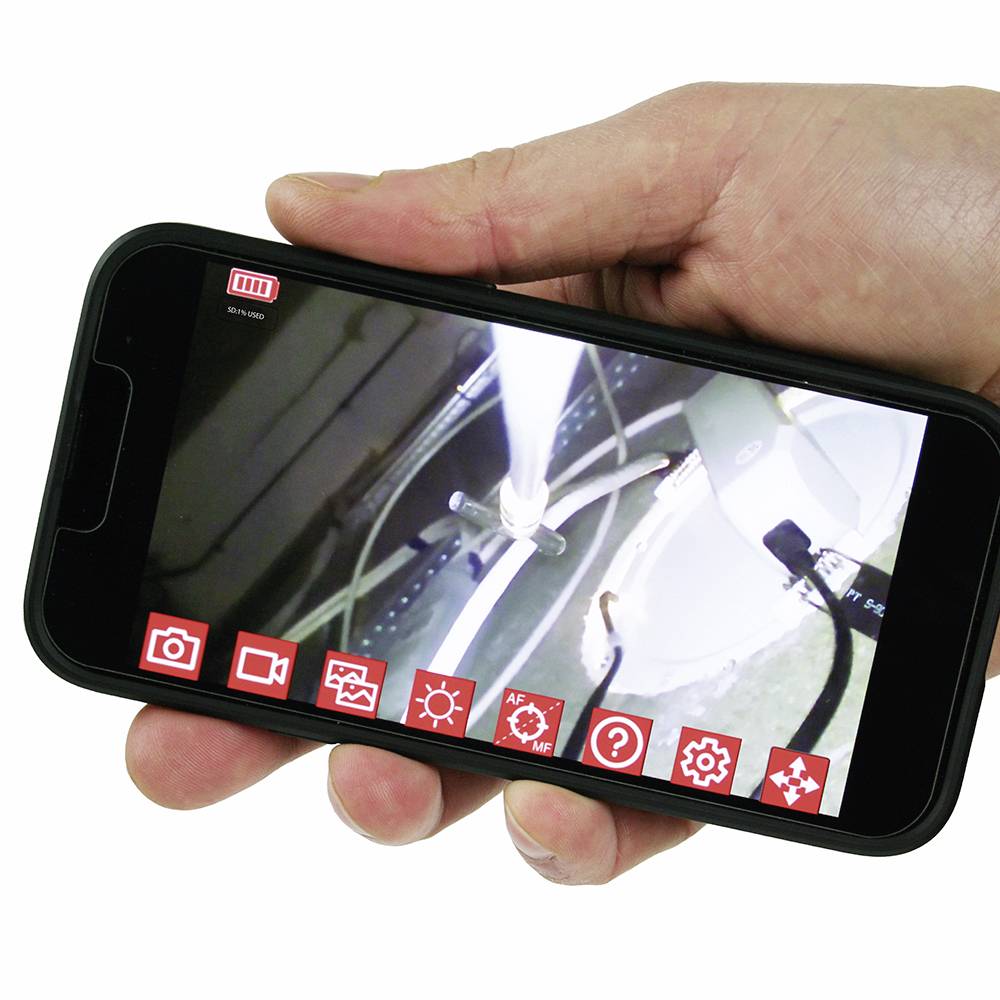

A hand holds a smartphone displaying a ship's camera monitoring the engine room. Symbols are visible on the screen.

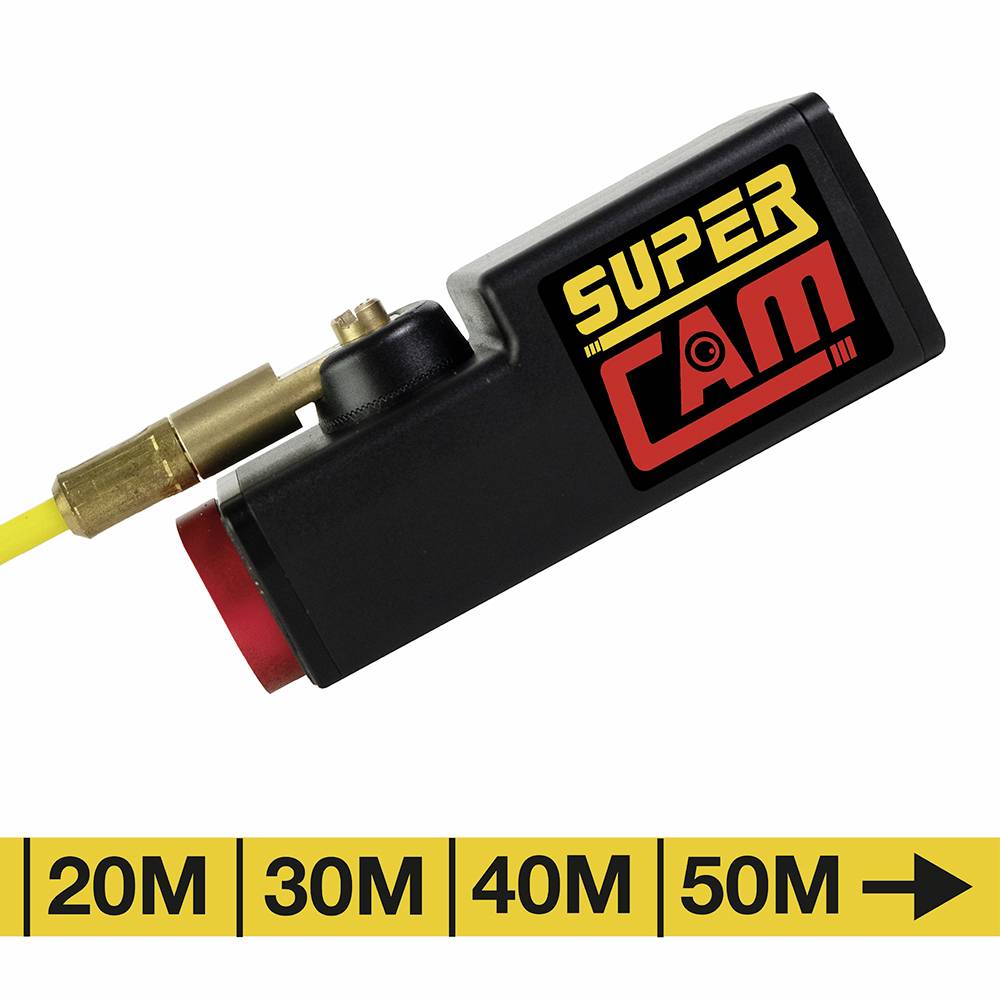

A super cam device with a yellow cable is visible. Beneath it is a measurement scale ranging from 20M to 50M.

1/11

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 210.08 / piece)

€ 210.08

plus VAT.

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Super camera

Wireless inspection camera - up to 20 m radio range

Technical specifications

Radio range: Up to 20 m.
Frequency:2.4 GHz
Viewing angle 33° horizontal
Charging connection USB-C
Rechargeable battery capacity 650 mAh
Lithium polymer battery
Operating temperature: 0 °C to +35 °C
Charging voltage 5 V/DC
Built-in bend adapter:180° adjustment range

Product type: Inspection camera

Endoscope features: High-resolution

Display resolution: 1280 x 720 Pixel

Camera resolution: 1280 x 720 Pixel

: IP67

Field of view: 33°

Weight: 60 g

Width: 29.6 mm

Type: SRCAMV6.5

Documents & Downloads

Datasheet

Datasheet 2937838 Super Rod SRCAMV6.5 Inspection camera

User & Safety Instructions

User & Safety Instructions 2937838 Super Rod SRCAMV6.5 Inspection camera

Description

Connect the Super Cam to any smart device and capture data. Work safer and more efficiently by transferring high-resolution videos in real time to your smart device.

Advantages
- Accelerates visual inspections
- Accurate audit reports/cost estimates
- Easier troubleshooting
- Safe working in hard-to-reach places
- Time-saving cable laying

This text is machine translated.

Features

Length of camera: 7.7 cm
Width of camera: 2.96 cm
Hole size 40 mm and larger
Resolution: 720p (1280x720) for live view and recorded videos
Operating time: Approx. 90 Minutes (LEDs on) up to 105 Minutes (LEDs off)
Charging time: 60 minutes fast charging
Sensitivity of the non-contact voltage detector: Best sensitivity 150V AC and more - CATIII 600V
Non-contact voltage detector sensor range: Approx. 50V-1,000V AC
Adjustable bright white LEDs: 6 LEDs - control of the brightness via the APP (off, 25%, 50%, 100%)

Scope of delivery

1x Super Cam Wireless inspection camera
1x padded bag
1x flexible guiding rod
1x S-arc
1x robust hook
2 x adapters
1x adapter for connecting threaded pins (male)
1x Super Magnet
1x 1m telescopic rod
1x Super Cam user manual
1x USB type C charging cable

System requirements

IOS or Android
