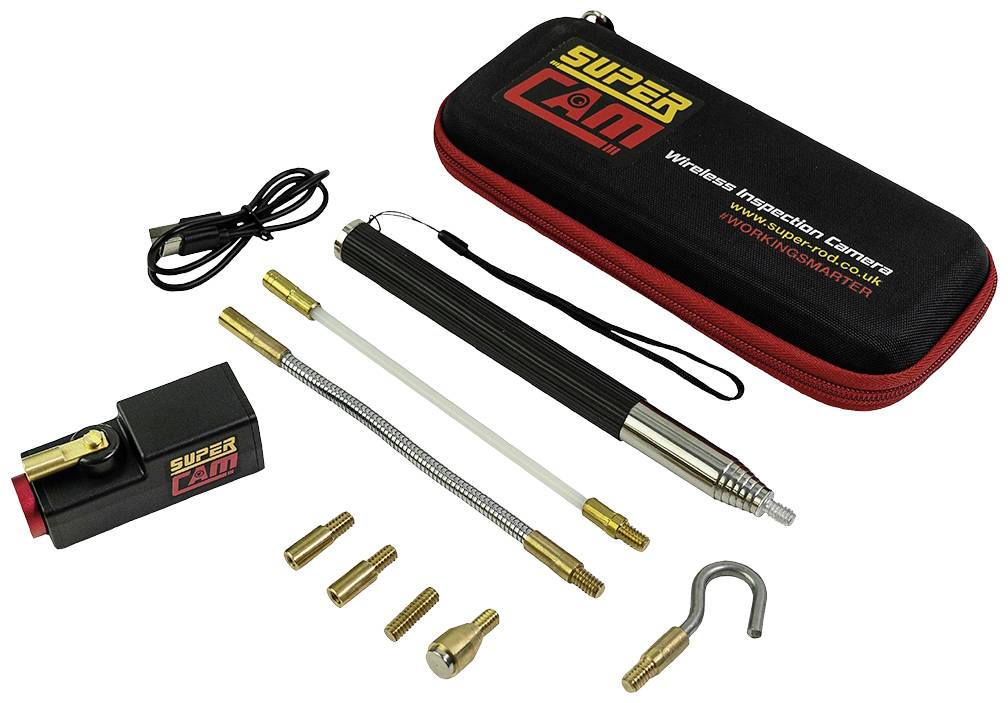

'Super Cam Wireless Inspection Camera' with flexible camera cable, USB cable, multiple adapters in a black bag with red zip.

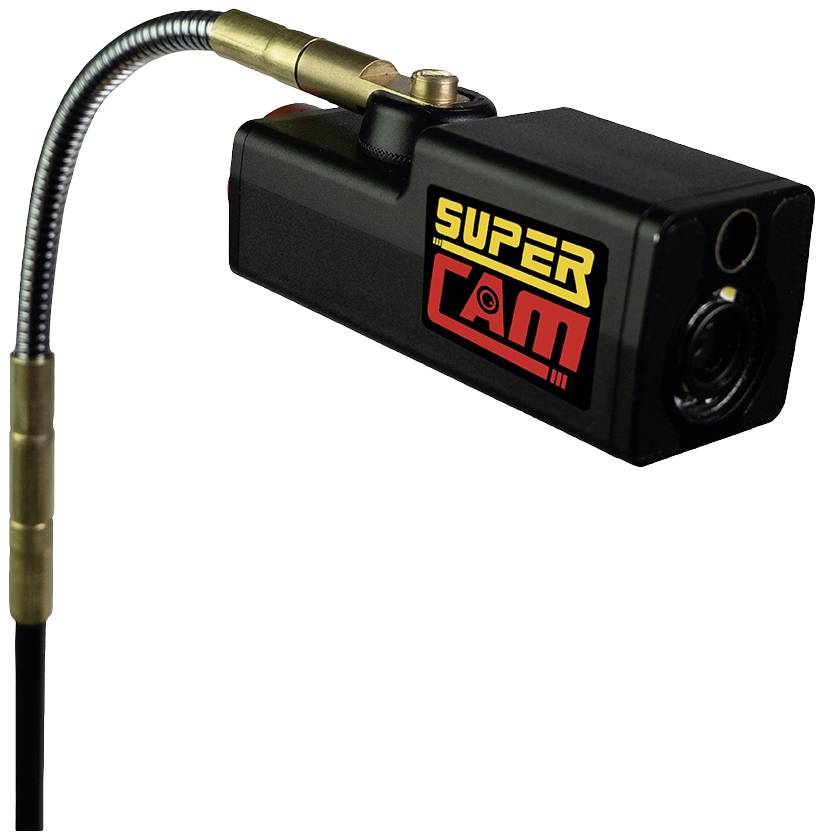

Black camera with the inscription 'Super Cam'. The camera has a flexible cable and appears to be compact and portable.

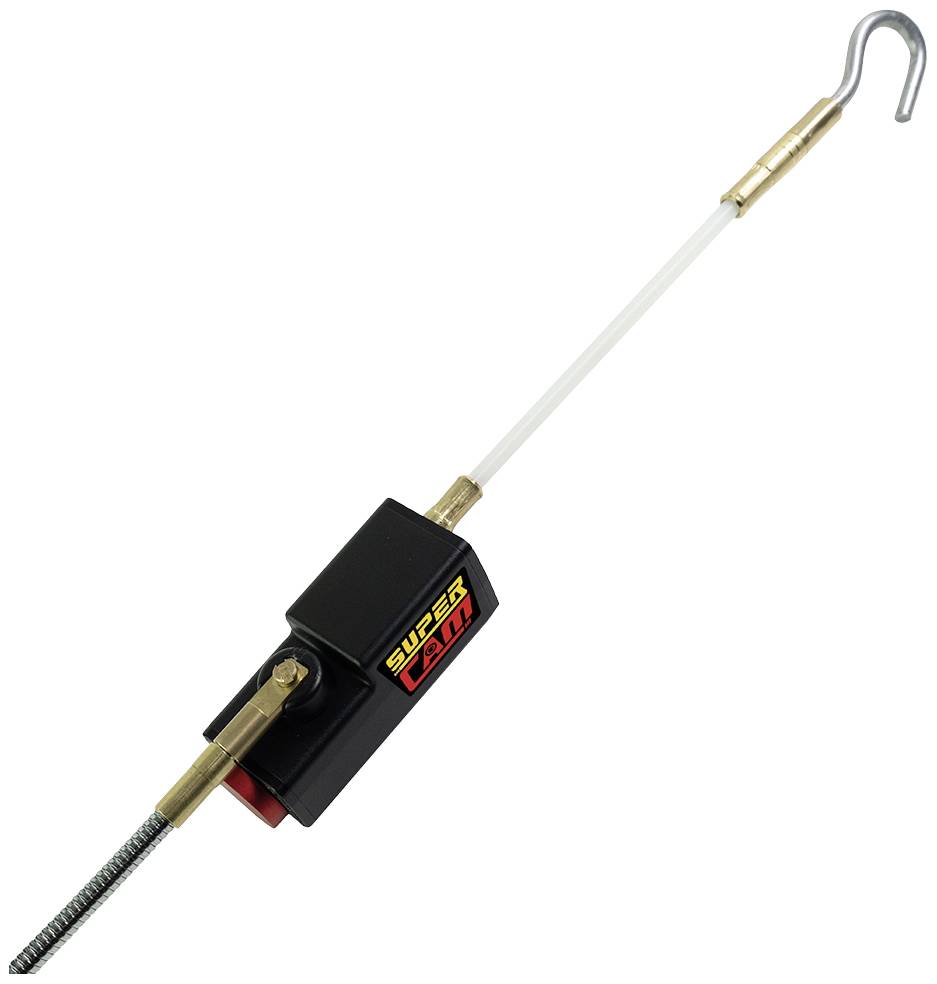

A theft prevention tool, consisting of a long, thin rod with a hook at the end and a black handle.

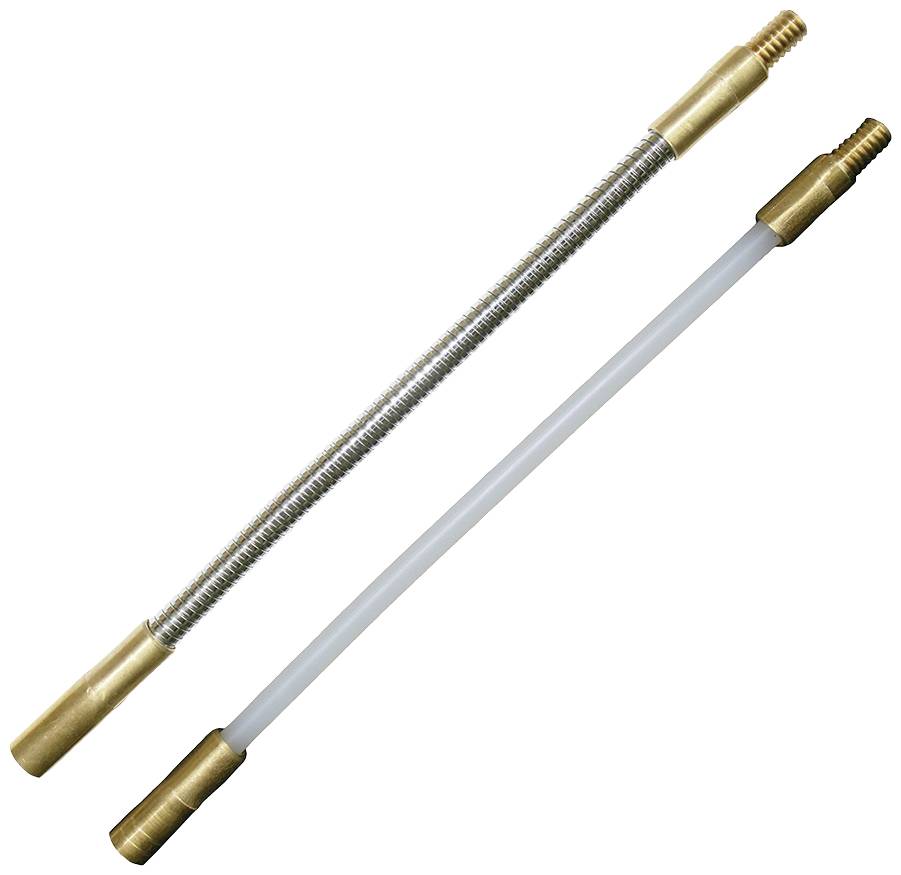

Two flexible hose extensions with metallic ends; one with a spiral-wound casing, one with a smooth surface.

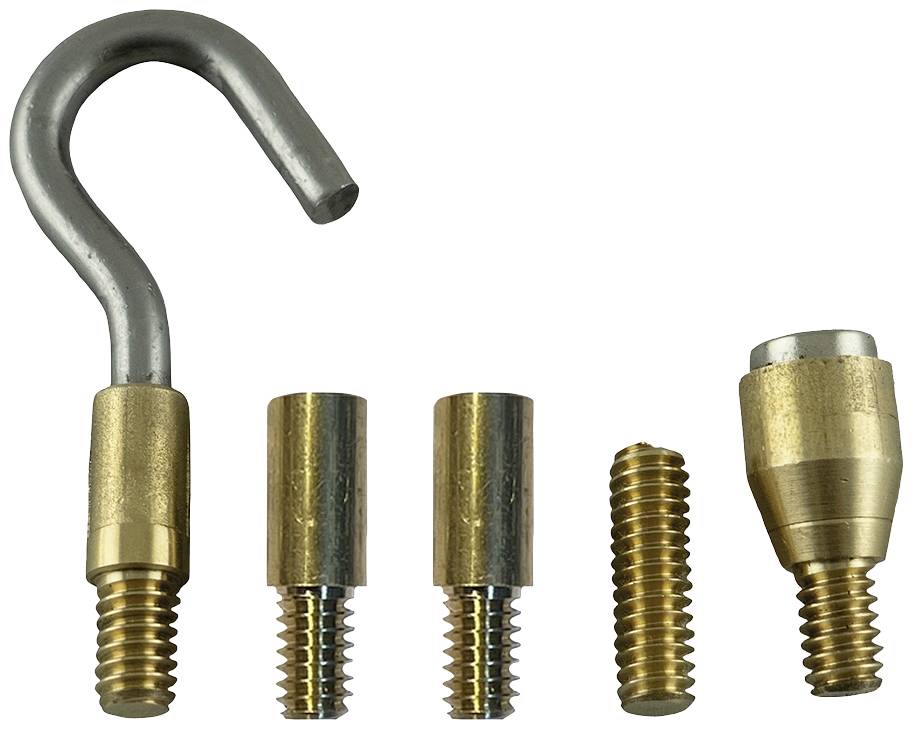

A hook mount and four different metal wall plugs, each with a different end. They are used for fixing items to walls.

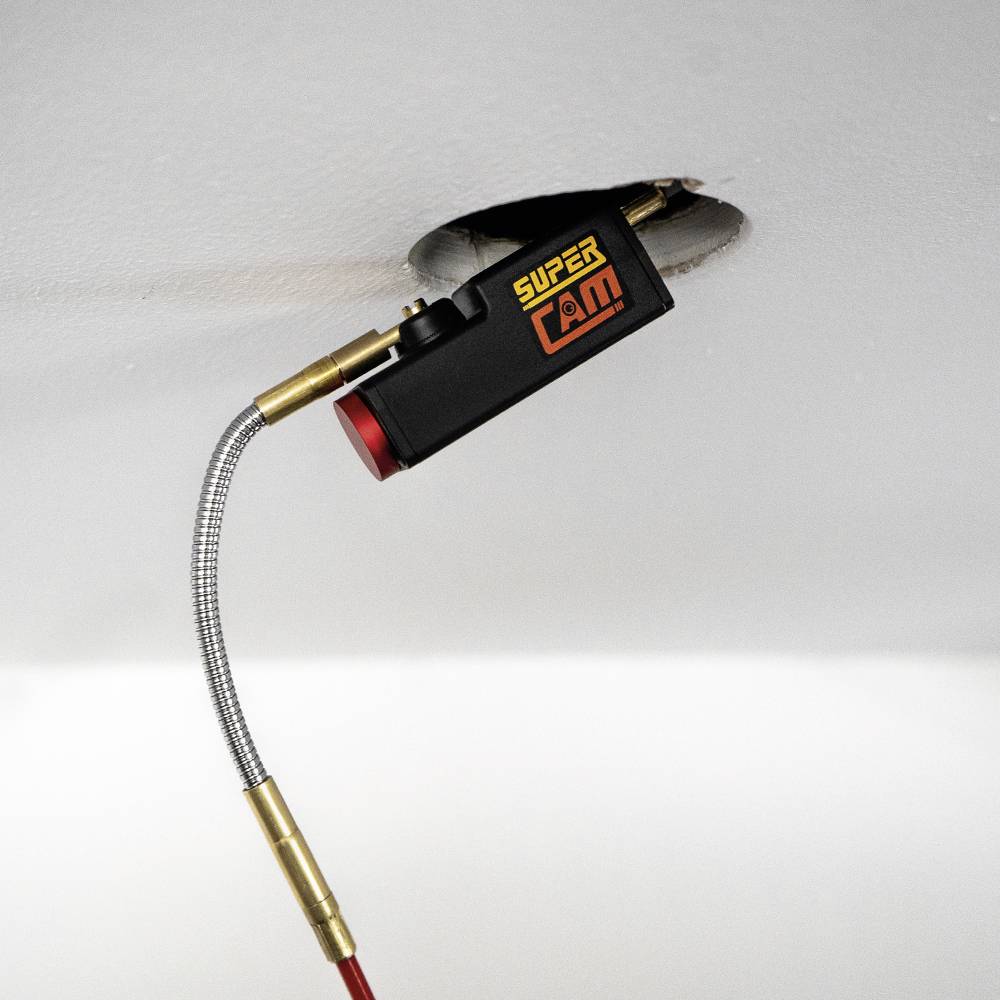

A flexible inspection tool with a camera looks through a hole in the wall. On the camera it says 'SUPER CAM'.

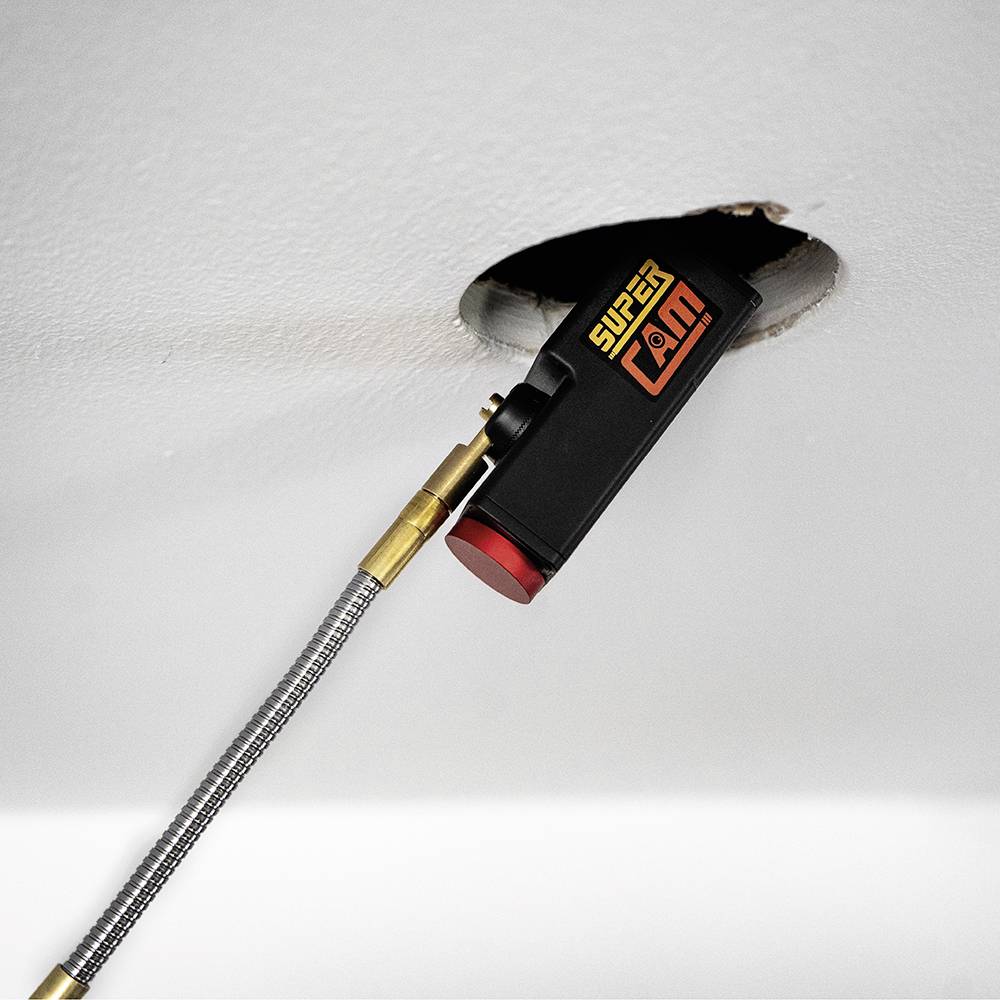

A camera-headed inspection tool protrudes through a hole in a ceiling. The camera head is black with a red 'Superscan' lettering.

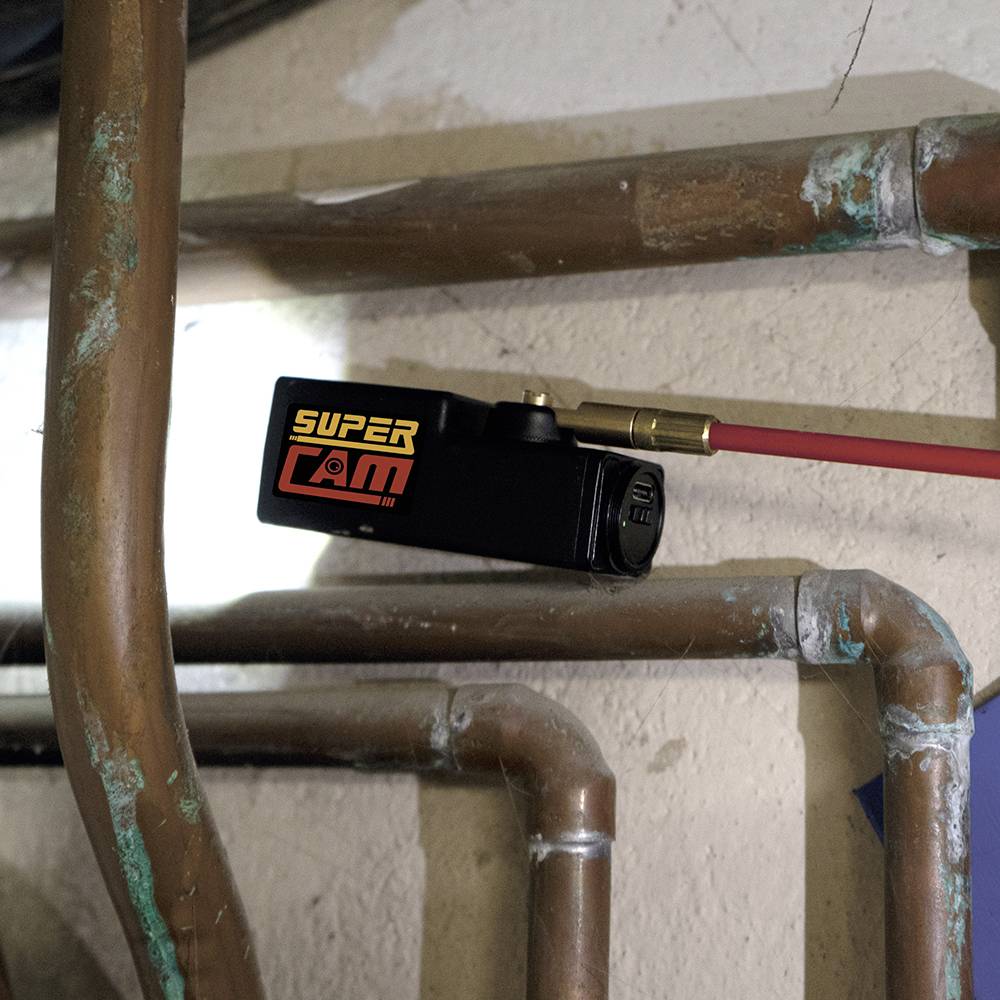

A black, rectangular device with the inscription 'Super CAM' is attached to a copper pipe; used for inspection.

A hand is holding a smartphone displaying a live video feed of a technical machine with multiple symbols on the screen.

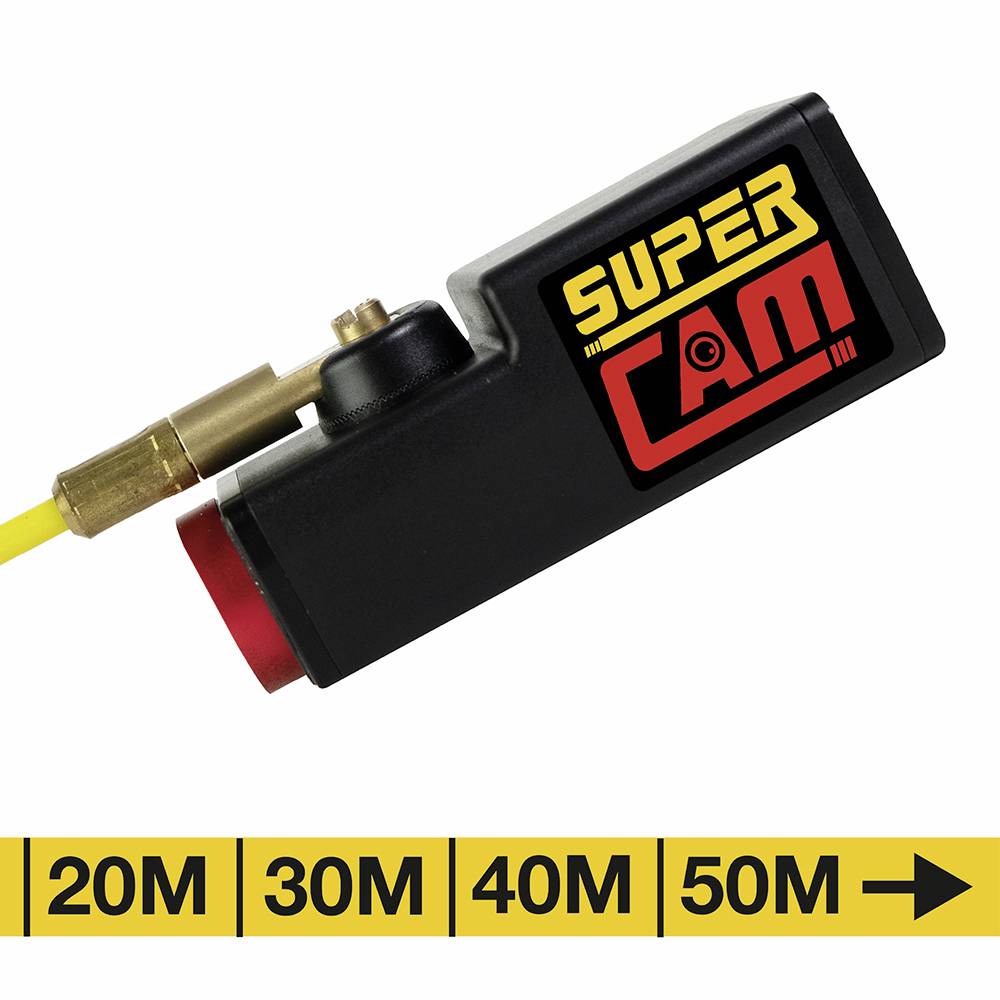

A black camera monitor device called 'Super Cam' with yellow text and pointer, indicating distances from 20 m to 50 m.

1/11

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 222.69 / piece)

€ 222.69

plus VAT.

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Super Cam Max

Wireless inspection camera with integrated memory

Technical specifications

Radio range: Up to 20 m.
Frequency:2.4 GHz
Viewing angle 33° horizontal
Charging connection USB-C
Rechargeable battery capacity 650 mAh
Lithium polymer battery
Operating temperature: 0 °C to +35 °C
Charging voltage 5 V/DC
Built-in bend adapter:180° adjustment range

Product type: Inspection camera

Probe diameter: 40 mm

Probe length: 7.7 cm

Endoscope features: High-resolution

Display resolution: 1280 x 720 Pixel

Camera resolution: 1280 x 720 Pixel

: IP67

Field of view: 33°

Weight: 60 g

Width: 29.6 mm

Type: SRCAMV6.5MAX

Documents & Downloads

Datasheet

Datasheet 2937839 Super Rod SRCAMV6.5MAX Inspection camera Probe diameter: 40 mm Probe length: 7.7 cm

User & Safety Instructions

User & Safety Instructions 2937839 Super Rod SRCAMV6.5MAX Inspection camera Probe diameter: 40 mm Probe length: 7.7 cm

Description

Connect the Super Cam Max to any smart device and capture data. Work safer and more efficiently by transferring high-resolution videos in real time to your smart device.

Advantages
- Accelerates visual inspections
- Accurate audit reports/cost estimates
- Easier troubleshooting
- Safe working in hard-to-reach places
- Time-saving cable laying

This text is machine translated.

Features

Length of camera: 7.7 cm
Width of camera: 2.96 cm
Hole size 40 mm and larger
Wireless range: 20 m with an integrated WiFi hotspot and memory
Storage capacity: 16 GB, 10,000 pictures, 30 hours Video recordings
Resolution: 720p (1280x720) for live view and recorded videos
Operating time: Approx. 90 Minutes (LEDs on) up to 105 Minutes (LEDs off)
Charging time: 60 minutes fast charging
Sensitivity of the non-contact voltage detector: Best sensitivity 150V AC and more - CATIII 600V
Non-contact voltage detector sensor range: Approx. 50V-1,000V AC
Adjustable bright white LEDs: 6 LEDs - control of the brightness via the APP (off, 25%, 50%, 100%)

Scope of delivery

1x Super Cam Max Wireless inspection camera with integrated memory
1x padded bag
1x flexible guiding rod
1x S-arc
1x robust hook
2 x adapters
1x adapter for connecting threaded pins (male)
1x Super Magnet
1x 1m telescopic rod
1x Super Cam user manual

System requirements

IOS or Android
