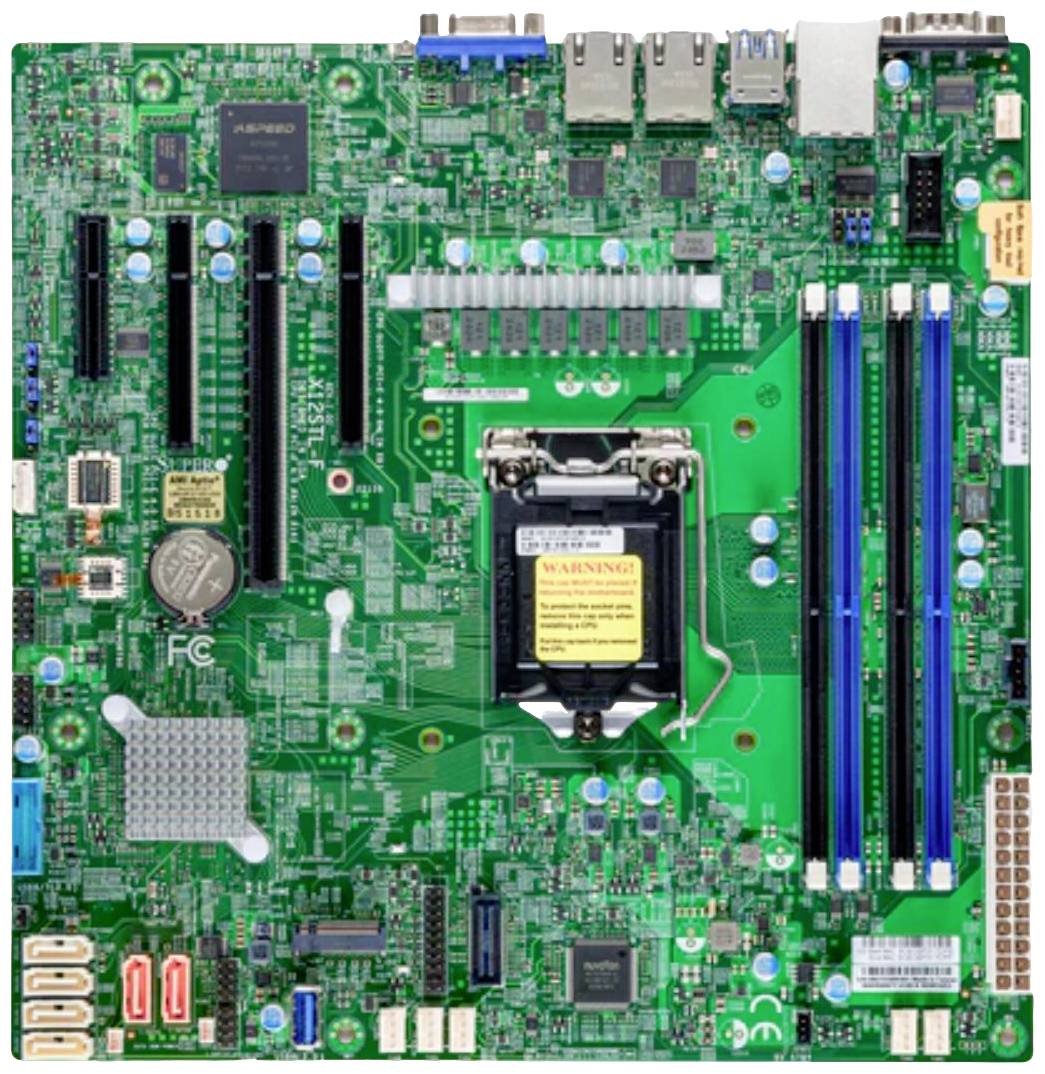

Supermicro MBD-X12STL-F-B Motherboard PC base Intel® 1200 Form factor (details) ATX Motherboard chipset Intel® C252
EAN:
Part number:
Item no:
Technical specifications
- Product type
Motherboard
- Form factor
ATX
Intel® 1200
- Chipset
Intel® C252
- Graphics card type
ASPEED
- Graphics card type
AST2600
- Connectors
VGA
- CPU
Pentium, Xeon E (TDP max. 95 Watt)
- Interfaces
USB A (USB 2.0)
M.2 PCIe
SATA 6 Gbps
VGA
USB A (USB 3.2 1st gen)
RS232
Gigabit LAN (1 Gbps)
- No. of DDR4 slots
4 x
- No. of PCIe x4
1 x
- No. of PCIe x8
1 x
- No. of PCIe x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of SATA III ports
6 x
- No. of USB 2.0 ports
2 x
- No. of USB type A 3.0 ports
5 x
- No. of USB 3.2
2 x
- No. of LAN ports
2 x
- No. of Gigabit LANs
2 x
- No. of serial ports
1 x
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2892474 Supermicro MBD-X12STL-F-B Motherboard PC base Intel® 1200 Form factor (details) ATX Motherboard chipset Intel® C252
Description
Features
- SUPERMICRO X12STL F W
- Motherboard
- Micro ATX
- LGA1200 socket
- C252 chipset
- USB 3.2 1st Gen 1
- 2 x Gigabit LAN
- Onboard graphics
