Superrollo Professional SR10195 GW195 Electric belt winder Flush mount
EAN:
Part number:
Item no:
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
Highlights & Details

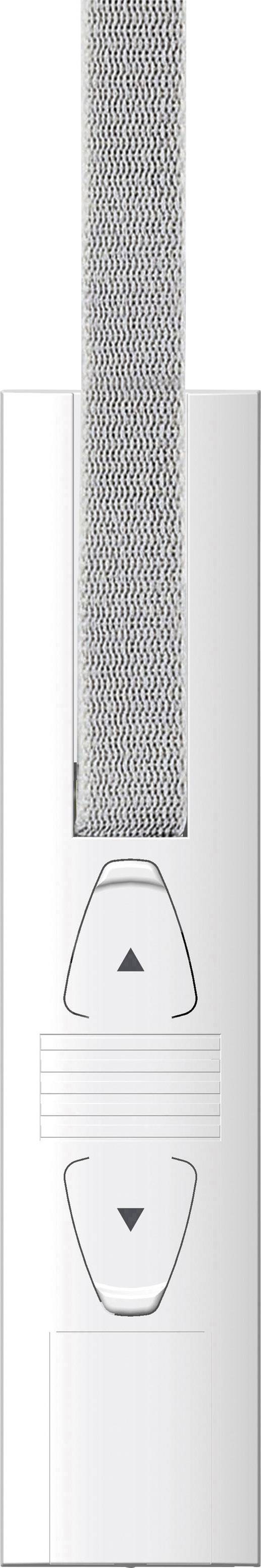

Superrollo Professional Electric belt winder GW195
- Strong: For shutters up to 10 m² (60 kg)
- Special: Device for large belt boxes
- Convenient - drive and control in one device.
- Simple: Installation in only approx. 10 minutes - ideal for quick retrofitting (flush-mounted)
Technical specifications
- Maximum speed 24 rpm
- Short-term operation (KB): 4 minutes (maximum runtime)
- Protection class: II
- Protection class: IP20 (only for dry rooms
- Mains connection cable 2 x 0.75 mm2 (H03VVH2-F)
- Permissible ambient temperature: 0 °C to +40 °C.
- Product type
Electric belt winder
- Nominal torque
14 Nm
- Mounting type
Flush mount
- Nominal power
70 W
- Operating voltage
230 V
- Hub
Not required
- Use
Lighting and appliance control
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1947479 Superrollo Professional SR10195 GW195 Electric belt winder Flush mount
Description
The Superrollo GW195 by Rademacher is an electronic belt winder for flush mounting. The Superroller shutter allows you to automate shutters quickly, easily and cleanly. It is suitable for plastic shutters up to an area of 10 m². The Superrollo GW195 has an integrated timer, which automatically opens your roller shutter in the morning and closes it in the evening. Manual operation is possible at any time.
This text is machine translated.
This text is machine translated.
Features
- Integrated timer obstacle
- detection
- overload protection
- Manual operation
- Summer/winter time switching
- Automatic mode on/off
- Automatic mode, one switching time each FOR UP and DOWN
- Manual operation
- End point setting
- Permanent storage of the settings
Scope of delivery
- Superrollo GW195
- Fixing screws
- Release clip
- Connection cable with Euro plug
- Winding wheel cover
- Cover panel
- Strain relief incl. mounting screws
- User manual.
