A black electrical component by Siemens with a blue front cover, suitable for mounting in an electrical installation.

Image similar

A black electrical component by Siemens with a blue front cover, suitable for mounting in an electrical installation.

An open electrical cabinet reveals various electronic components. In the background, a machine can be seen through a rain-streaked window.

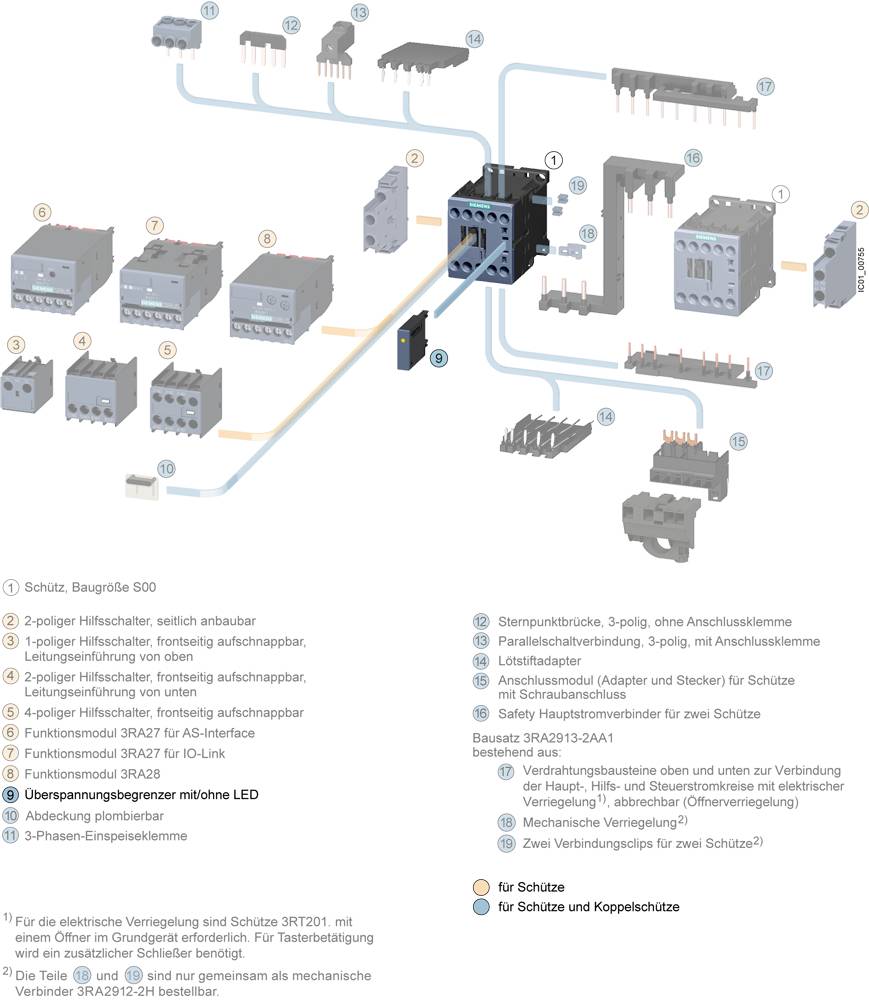

'Representation of electrical components and their connections in a control cabinet. Legend and arrows indicate connections and functions.'

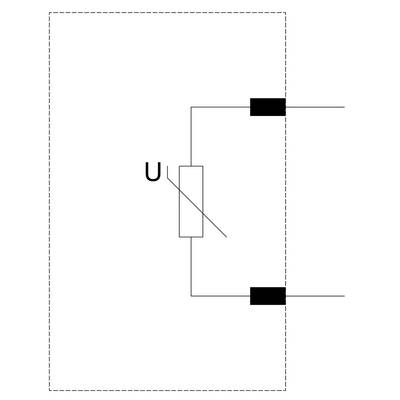

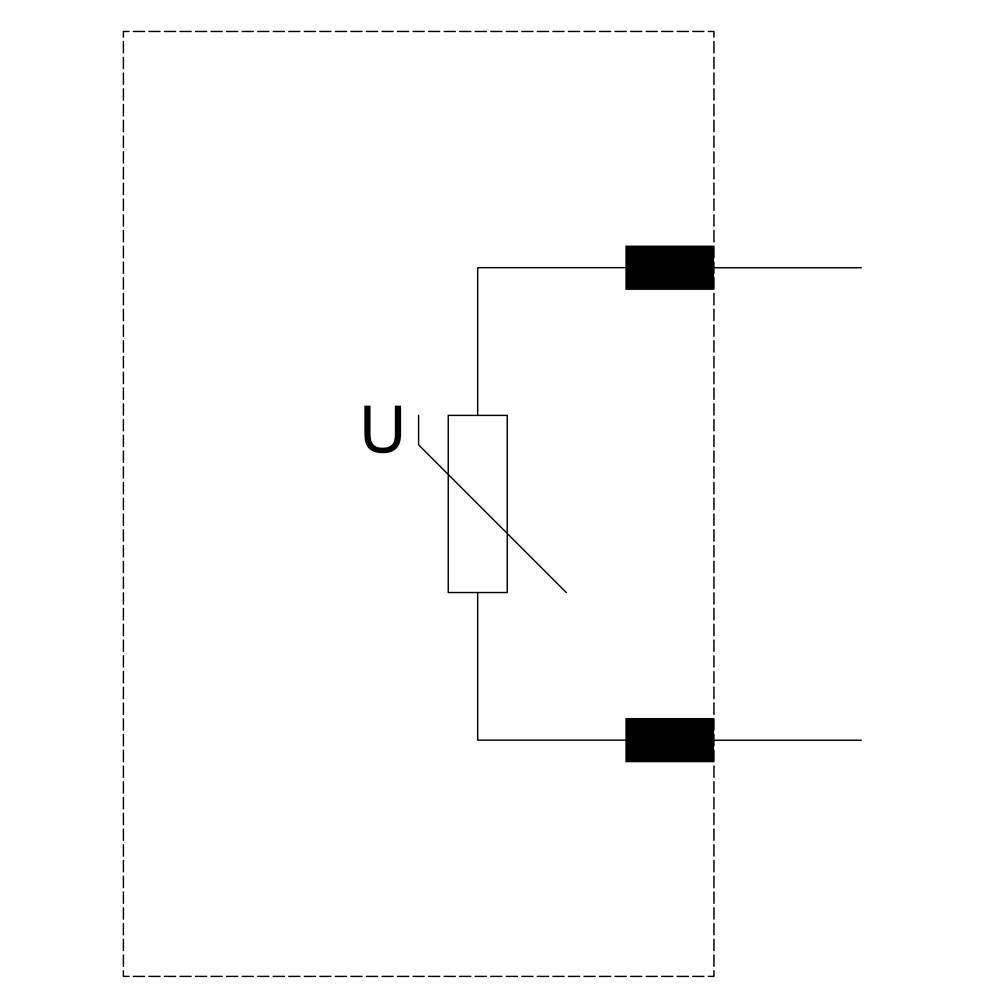

A circuit diagram shows a resistor through which voltage 'U' flows. There are connections for the power source on the right and left.

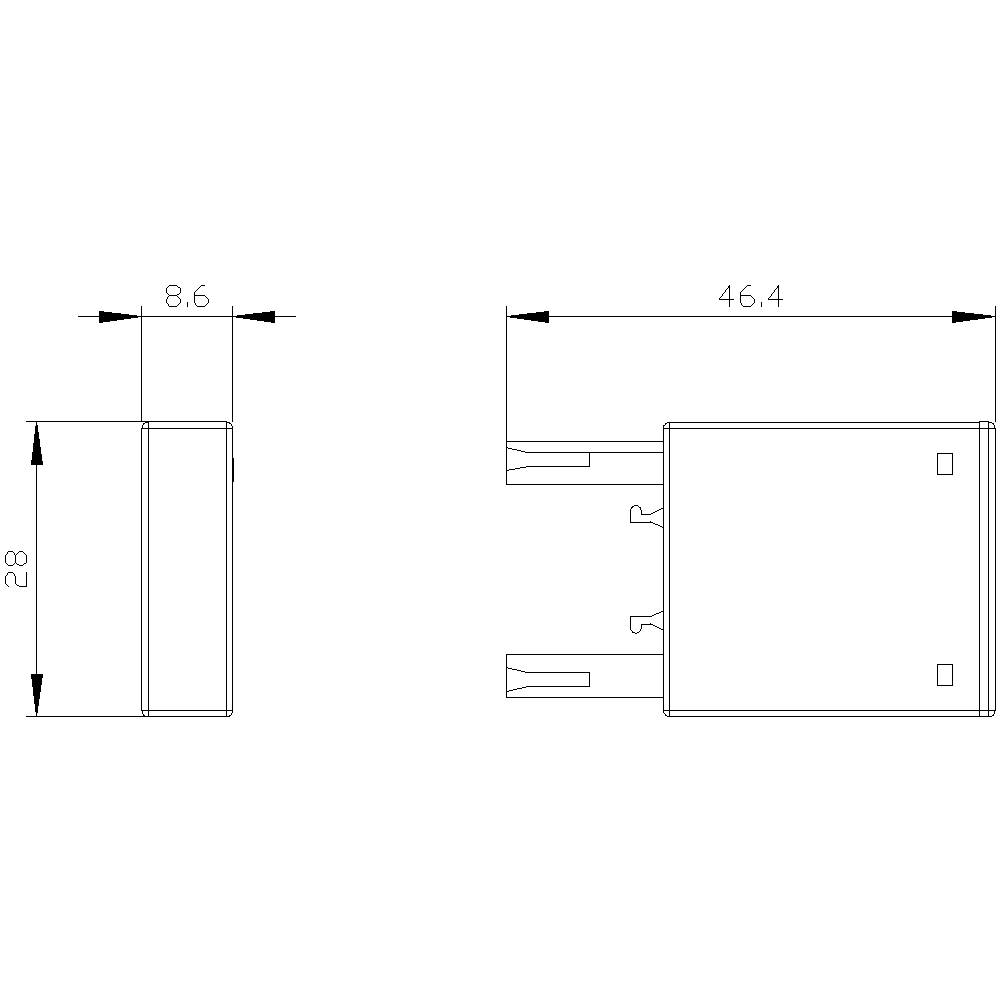

Technical drawing of a rectangular plug with dimensions: height 28 mm, width 8.6 mm, length 46.4 mm.

1/5

Image similar

Product type

Surge protection

Content

1 pc(s)

Features

+ varistor

Mounting type

Push-fit

Min. operating voltage

127 V AC

150 V DC

Datasheet (PDF)

Deutsch (Deutschland)

Siemens

Unavailable

44 Set(s)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Contactor size: S00
All mounting positions permitted
Control supply voltage frequency 50/60 Hz

Product type: Surge protection

Content: 1 pc(s)

Features: + varistor

Mounting type: Push-fit

Min. operating voltage: 127 V AC
150 V DC

Max. operating voltage: 240 V AC
250 V DC

Operating voltage: 127, 150 - 240, 250 V AC, V DC

Weight: 0.0050 kg

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 9 mm

Height: 46 mm

Length: 28 mm

Dim: (L x W x H) 28 x 9 x 46 mm

RoHS-compliant: Yes

Type: 3RT2916-1BD00

Depth: 9 mm

UKCA: yes

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 2863689 Surge protection 3RT29161BD00 + varistor 1 pc(s) Siemens 3RT2916-1BD00

User & Safety Instructions

User & Safety Instructions 2863689 Surge protection 3RT29161BD00 + varistor 1 pc(s) Siemens 3RT2916-1BD00

Description

Overvoltage limiter, varistor, AC 127 ... 240V DC 150 ... 250V for auxiliary and motor contactors size S00 Simple, efficient, always up-to-date - the SIRIUS system modules.
