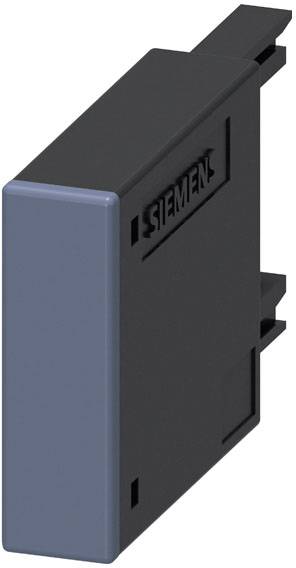

A black electronic component with a blue front section, which may be incorporated into industrial applications.

Image similar

A black electronic component with a blue front section, which may be incorporated into industrial applications.

Interior view of an electrical cabinet with open devices and cables. In the background, a rain-streaked window with a blurred blue industrial object.

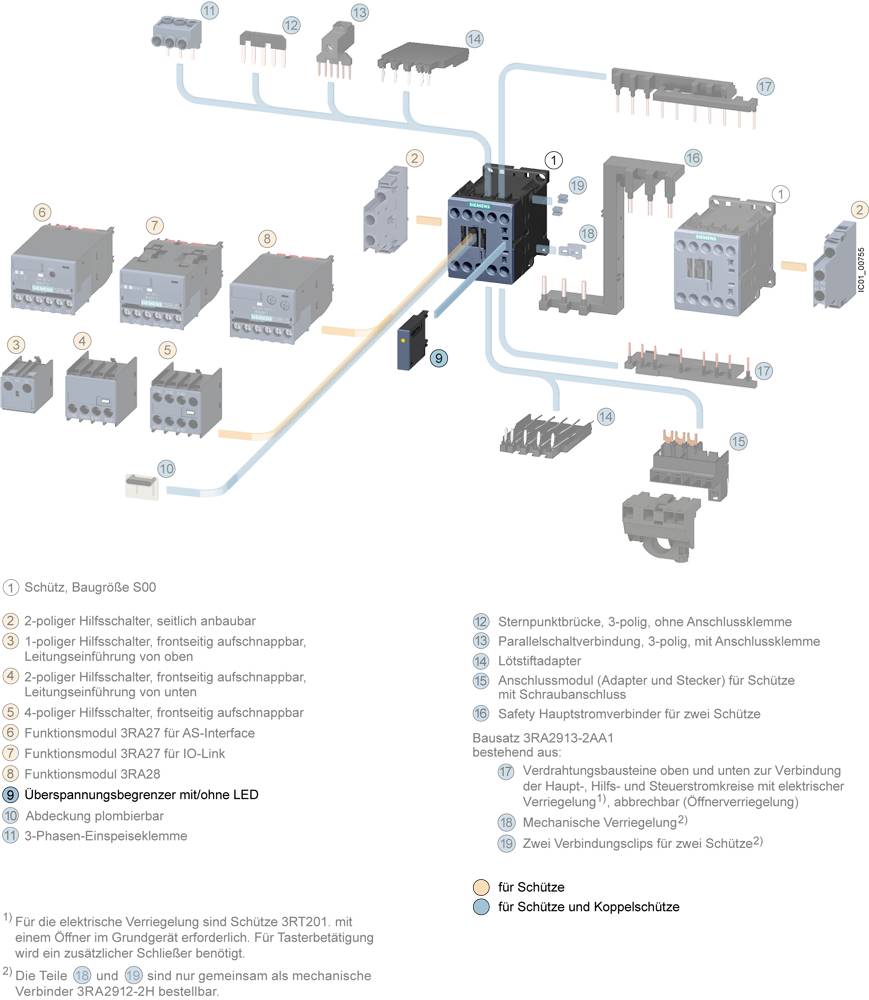

'Diagram shows switchgear, terminals and accessories for contactors of size S00. Connections and functions colour-coded.'

A circuit diagram shows two anti-parallel diodes with terminal connections marking a symmetrical current flow direction.

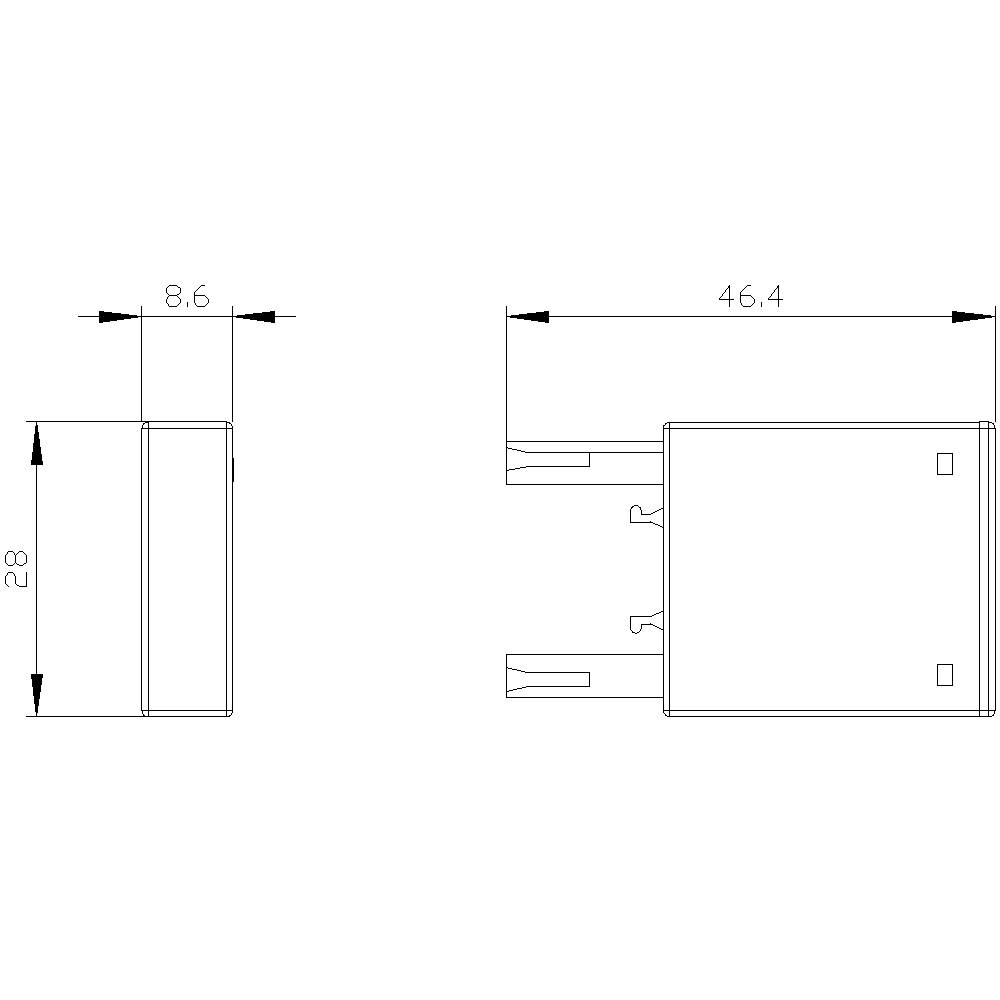

Technical Drawing of a Socket Adapter with Dimensions: Width 8.6 mm, Height 28 mm, and Depth 46.4 mm.

1/5

Image similar

Product type

Surge protection

Content

1 pc(s)

Features

+ diode

Factory colour

Multicolour

Mounting type

Push-fit

Datasheet (PDF)

Deutsch (Deutschland)

Siemens

Unavailable

27 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Surge suppressor, diode-comb. DC12-250V for auxiliary and motor contactors

Our service for you

Technical specifications

Size of contactor: S00
Mounting position: Any

Product type: Surge protection

Content: 1 pc(s)

Features: + diode

Factory colour: Multicolour

Mounting type: Push-fit

Min. operating voltage: 12 V DC

Max. operating voltage: 250 V DC

Operating voltage: 12 - 250 V DC

Weight: 0.01

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 9 mm

Height: 46 mm

Length: 28 mm

Dim: (L x W x H) 28 x 9 x 46 mm

RoHS-compliant: Yes

Type: 3RT2916-1EH00

: DC

UKCA: not relevant

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 2261876 Surge protection 3RT29161EH00 + diode Multicolour 1 pc(s) Siemens 3RT2916-1EH00

User & Safety Instructions

User & Safety Instructions 2261876 Surge protection 3RT29161EH00 + diode Multicolour 1 pc(s) Siemens 3RT2916-1EH00

Description

Surge suppressor, diode combination, DC 12 ... 250 V, for auxiliary and motor contactors size S00 simple, efficient, always up-to-date - the SIRIUS modular system.
