Black rectangular Siemens component with a yellow dot on the front face, likely an electrical module.

Image similar

Black rectangular Siemens component with a yellow dot on the front face, likely an electrical module.

An open electrical cabinet with electronic components on the left. On the right, a rain-soaked window with a blurred background and machinery.

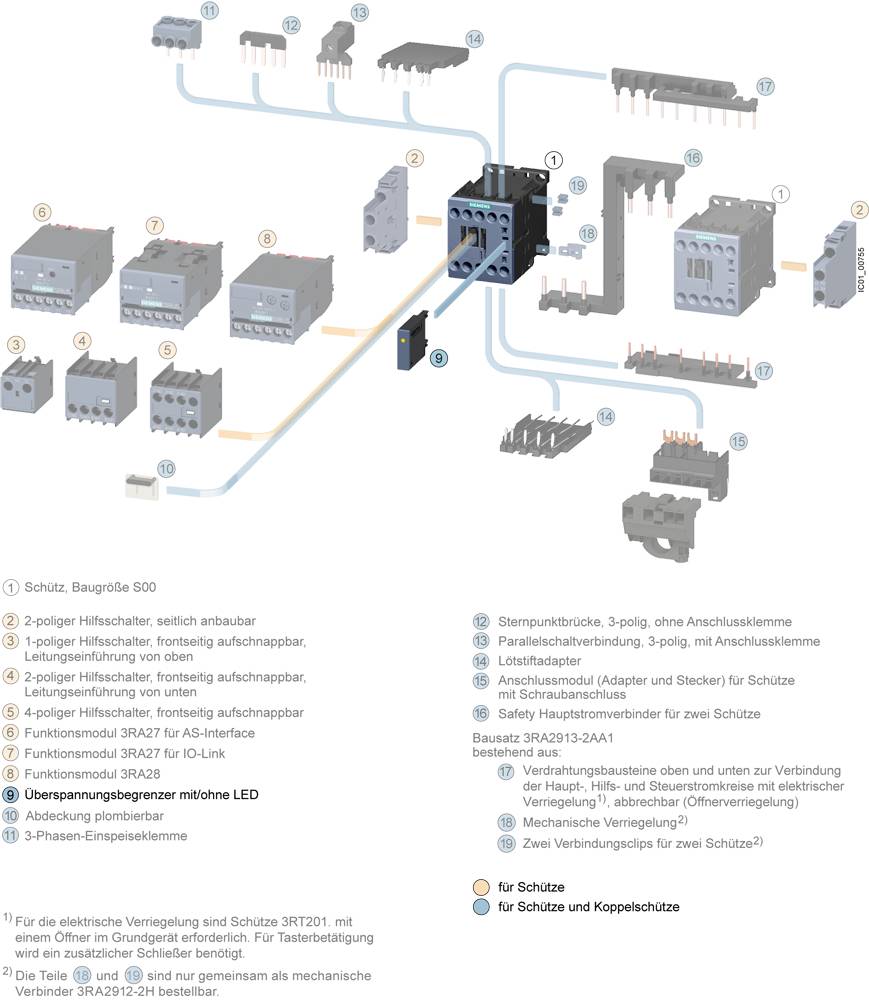

'Diagram shows switchgear: contactors, connection diagrams, LED indicator. Labels explain functions and wiring.'

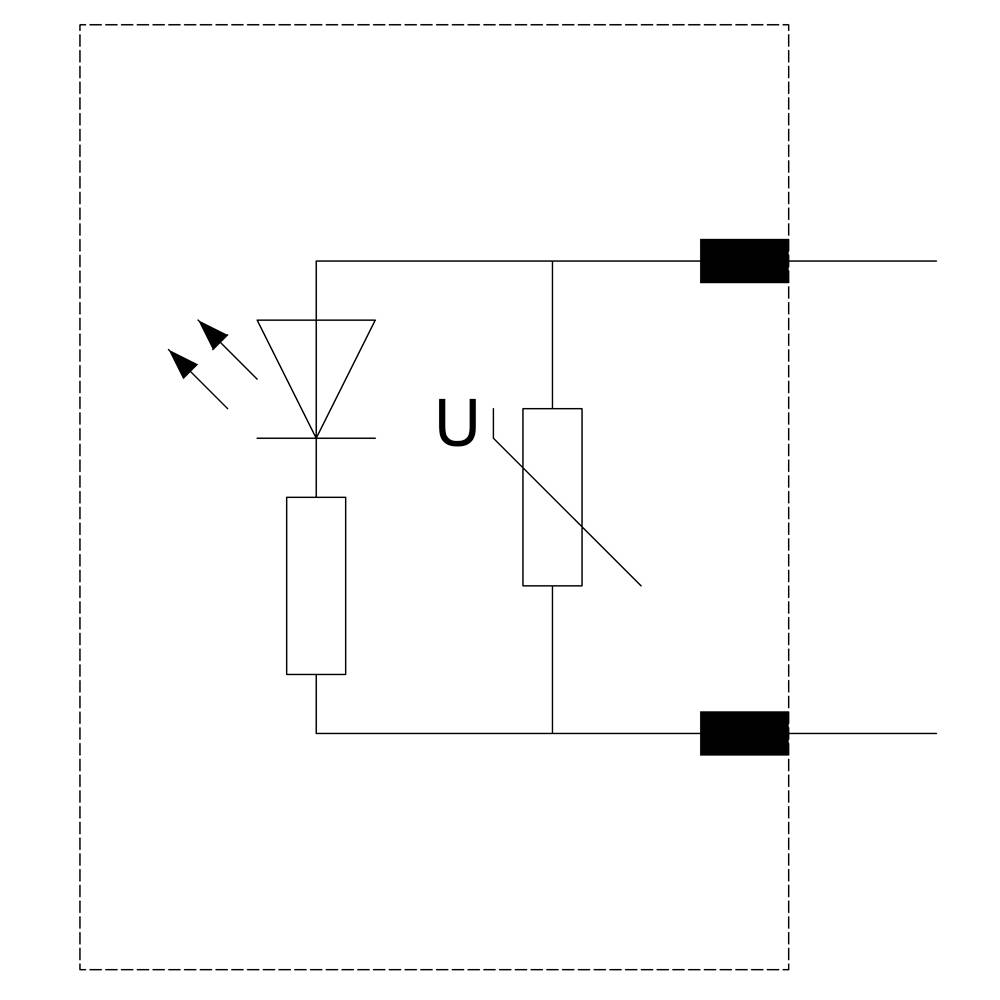

Circuit diagram shows an LED with a series resistor in a simple series circuit. Voltage 'U' is marked across the LED.

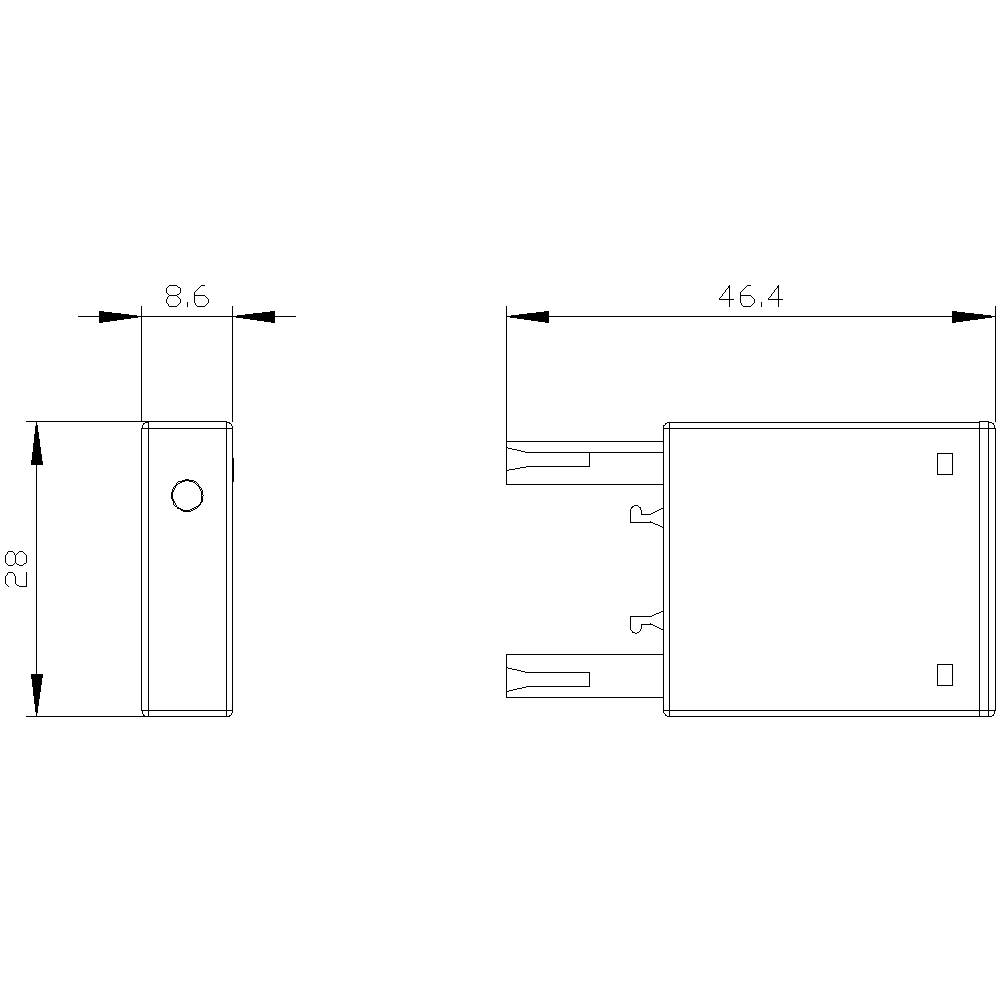

Technical drawing of a rectangular plug from two perspectives. Dimensions of 8.6 mm, 28 mm, and 46.4 mm are highlighted.

1/5

Image similar

Product type

Surge protection

Content

1 pc(s)

Features

+ varistor

Mounting type

Push-fit

Min. operating voltage

24 V AC

12 V DC

Datasheet (PDF)

Deutsch (Deutschland)

Siemens

Unavailable

22 Set(s)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Overvoltage limiter, varistor with LED, AC 24-48V, DC 12-24V

Our service for you

Technical specifications

Contactor size: S00
All mounting positions permitted
Control supply voltage frequency 50/60 Hz

Product type: Surge protection

Content: 1 pc(s)

Features: + varistor

Mounting type: Push-fit

Min. operating voltage: 24 V AC
12 V DC

Max. operating voltage: 48 V AC
24 V DC

Operating voltage: 24, 12 - 48, 24 V AC, V DC

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 9 mm

Height: 46 mm

Length: 28 mm

Dim: (L x W x H) 28 x 9 x 46 mm

RoHS-compliant: Yes

Type: 3RT2916-1JJ00

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 2863695 Surge protection 3RT29161JJ00 + varistor 1 pc(s) Siemens 3RT2916-1JJ00

User & Safety Instructions

User & Safety Instructions 2863695 Surge protection 3RT29161JJ00 + varistor 1 pc(s) Siemens 3RT2916-1JJ00

Description

Overvoltage limiter, varistor with LED, AC24 ... 48V, DC 12 ... 24V, for auxiliary and motor contactors size S00 Simple, efficient, always up-to-date - the SIRIUS system kit.
