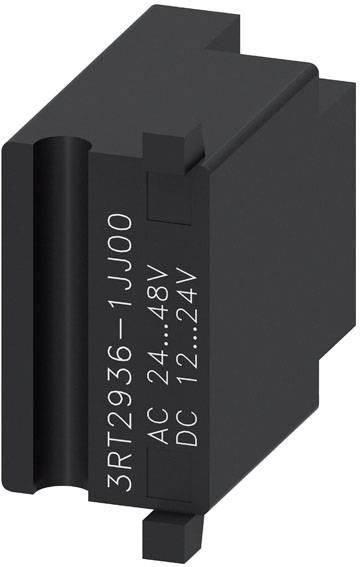

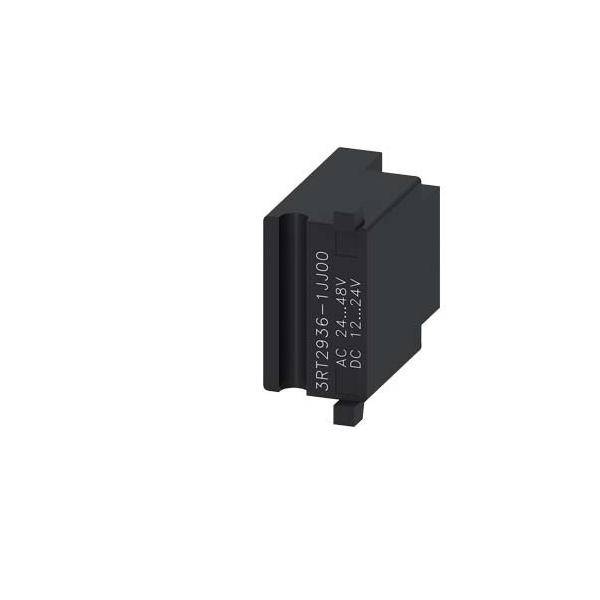

Surge protection 3RT29361JJ00 + LED 1 pc(s) Siemens 3RT2936-1JJ00
EAN:
Part number:
Item no:
Product type
Surge protection
Content
1 pc(s)
Features
+ LED
Mounting type
Push-fit
Min. operating voltage
24 V AC
12 V DC
Datasheet (PDF)
Technical specifications
- Size of contactor: S2, S3
- Mounting position: Any
- control supply voltage frequency: 50/60 Hz
- Product type
Surge protection
- Content
1 pc(s)
- Features
+ LED
- Mounting type
Push-fit
- Min. operating voltage
24 V AC
12 V DC
- Max. operating voltage
48 V AC
24 V DC
- Operating voltage
24, 12 - 48, 24 V AC, V DC
- Min. temperature
-25 °C
- Max. temperature
+60 °C

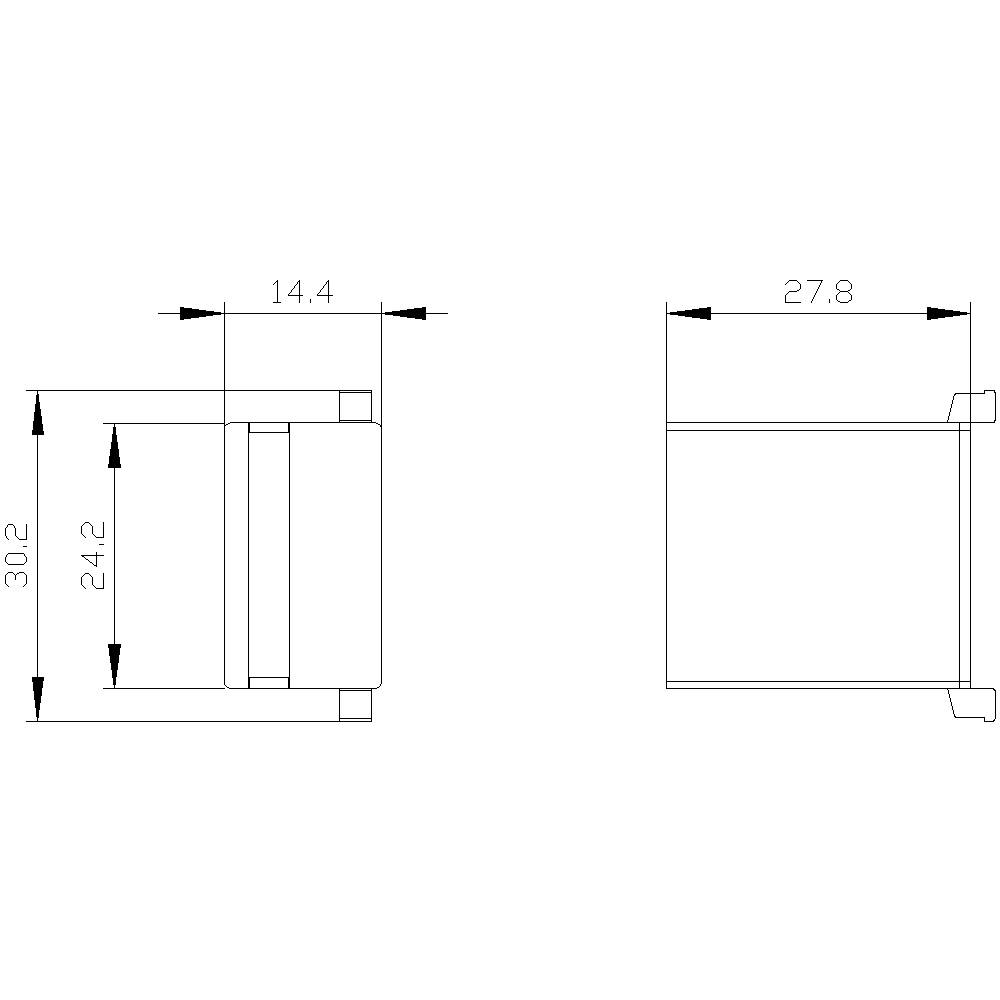

- Width
14.5 mm
- Height
30 mm
- Length
30 mm
- Dim
(L x W x H) 30 x 14.5 x 30 mm
- RoHS-compliant
Yes
- Type
3RT2936-1JJ00
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2261884 Surge protection 3RT29361JJ00 + LED 1 pc(s) Siemens 3RT2936-1JJ00
User & Safety Instructions
User & Safety Instructions 2261884 Surge protection 3RT29361JJ00 + LED 1 pc(s) Siemens 3RT2936-1JJ00
Description

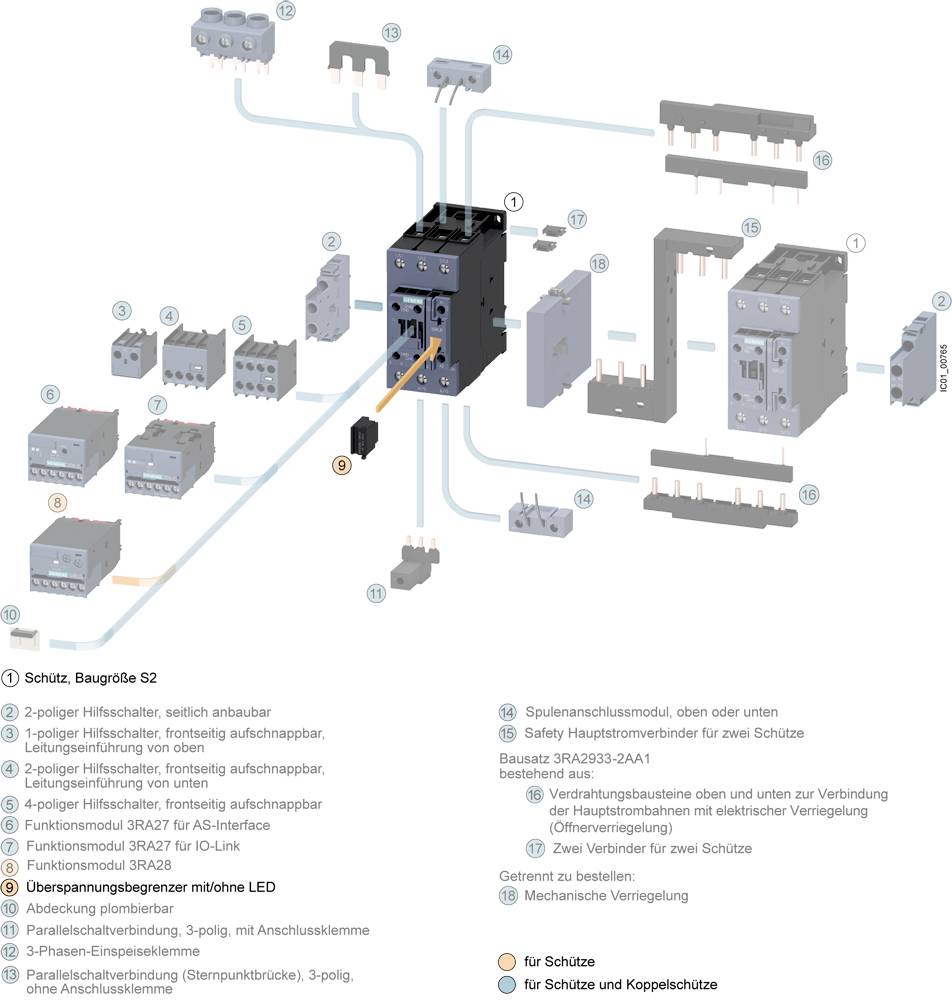

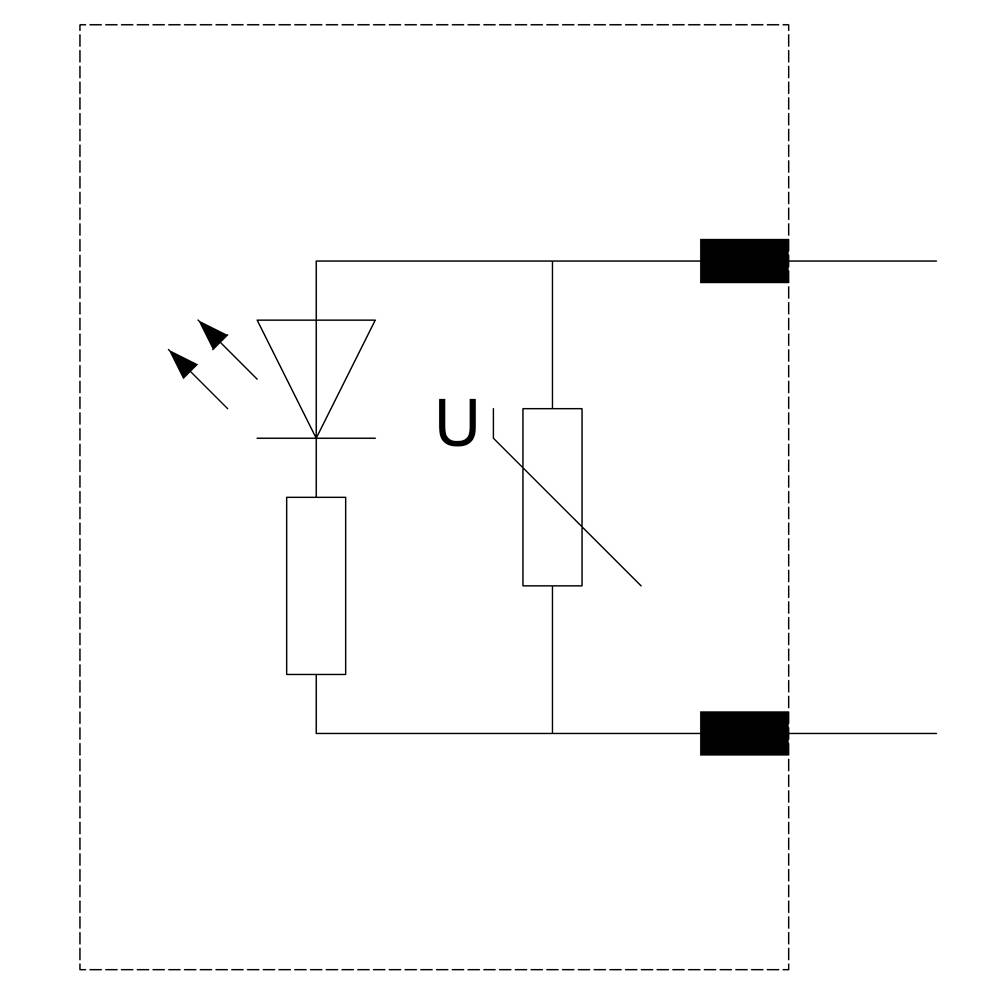

Surge suppressor, varistor with LED, AC 24 ... 48 V, DC 12 ... 24 V, for contactors size S2, S3 Thanks to the mounting axis already in the contactor, the surge suppressor can be inserted very easily and without any effect on the external dimensions.
